Slide switches are versatile components commonly used in electronic circuits to control the flow of electricity. They provide a simple mechanism to turn devices on and off, making them ideal for various applications. In this article, we will explore how to install a slide switch with an on/off indicator LED, detailing the components needed, wiring instructions, and practical tips for successful installation.
A slide switch is a mechanical device that can open or close an electrical circuit by sliding a lever. The most common types include:
- Single Pole Single Throw (SPST): A basic on/off switch.
- Single Pole Double Throw (SPDT): Allows switching between two circuits.
- Double Pole Single Throw (DPST): Controls two circuits simultaneously.
- Double Pole Double Throw (DPDT): Provides more complex circuit control.
For our project, we will focus on the SPST type, which is straightforward and ideal for simple on/off applications.
To install a slide switch with an indicator LED, you will require the following components:
- Slide Switch (SPST)
- LED (Light Emitting Diode)
- Resistor (typically 220Ω for the LED)
- Power Source (e.g., battery)
- Wires for connections
- Breadboard or PCB for mounting
- Soldering iron and solder (if permanent connections are desired)
- Wire stripper and cutter
Ensure you have a clean and organized workspace. Gather all your components and tools.
The SPST slide switch typically has three terminals:
- Common Terminal: This is where the power source connects.
- Output Terminal: This connects to the LED.
- Ground Terminal: This connects back to the ground of your power source.

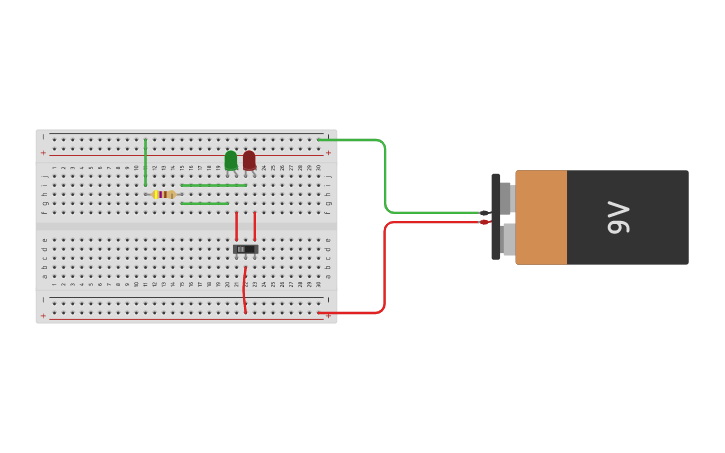

1. Connect one terminal of the slide switch to the positive terminal of your power source.
2. Connect the common terminal of the slide switch to one end of the resistor.
3. Connect the other end of the resistor to the anode (longer lead) of the LED.
4. Connect the cathode (shorter lead) of the LED to the ground terminal of your power source.
Before finalizing your connections, it's wise to test them:
1. Ensure all connections are secure.
2. Power on your circuit by connecting it to your power source.
3. Slide the switch to see if the LED lights up when in the 'on' position and turns off when in 'off' position.
If you want a permanent setup:
1. Heat your soldering iron and apply solder to each connection point.
2. Allow it to cool down before handling.
Depending on your project, you may want to mount your slide switch onto a breadboard or PCB:
1. For breadboards, simply insert the switch into an empty slot.
2. For PCBs, align it with pre-drilled holes and solder it in place.

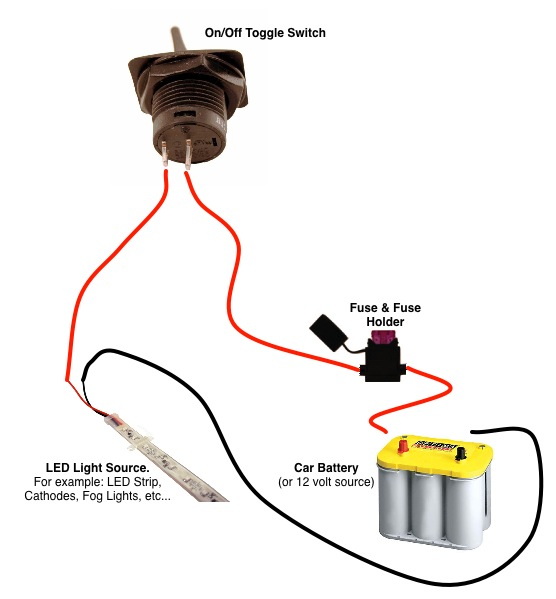

To enhance functionality, you can add an additional indicator LED that lights up when the main circuit is powered:
1. Connect another LED parallel to your main LED using similar resistor values.
2. Wire it such that it lights up when the slide switch is in 'on' position.
If your setup does not work as expected:
- Check all connections for loose wires or incorrect placements.
- Ensure that your power source is functioning properly.
- Verify that your LEDs are correctly oriented (anode vs cathode).
While we focused on SPST switches for simplicity, understanding other types can be beneficial if you wish to expand your projects in the future.
This type allows you to connect one input line to one of two output lines. It can be used for applications like selecting between two devices or modes in a circuit.
DPST switches can control two separate circuits simultaneously with one action. This is useful in applications where you want to turn off multiple devices at once.
This configuration allows for more complex switching options, enabling control over two circuits with two different outputs. It can be used in applications requiring toggling between multiple states or devices.
Slide switches are used in various applications across different fields:
- Home Appliances: Many household items like lamps and fans utilize slide switches for user-friendly operation.
- Toys: Electronic toys often use these switches due to their simple operation and reliability.
- Automotive: Slide switches can be found in cars for controlling lights or other electronic features.
To ensure a successful installation of your slide switch with an indicator LED, consider these best practices:
- Plan Your Layout: Before starting, sketch out your circuit design and layout to avoid confusion during assembly.
- Use Quality Components: Invest in good-quality switches and LEDs to ensure longevity and reliability in your projects.
- Document Your Work: Keep notes on connections and configurations; this will help troubleshoot issues later.
Installing a slide switch with an on/off indicator LED is a straightforward process that can enhance many electronic projects. By following these steps carefully, you can create a reliable and functional circuit that allows you to control devices easily. Understanding different types of slide switches and their applications opens up further possibilities for future projects.
A slide switch is a mechanical device used to open or close an electrical circuit by sliding a lever from one position to another.
The resistor value depends on your power supply voltage and the specifications of your LED. A common value is around 220Ω for standard LEDs when using a 9V source.
Yes, you can wire multiple LEDs in parallel or series configurations depending on your design requirements.
If connected backwards, an LED will not light up as it only allows current to flow in one direction (from anode to cathode).
Soldering is not mandatory; you can use breadboards for temporary setups or screw terminals for easy connections without soldering.
