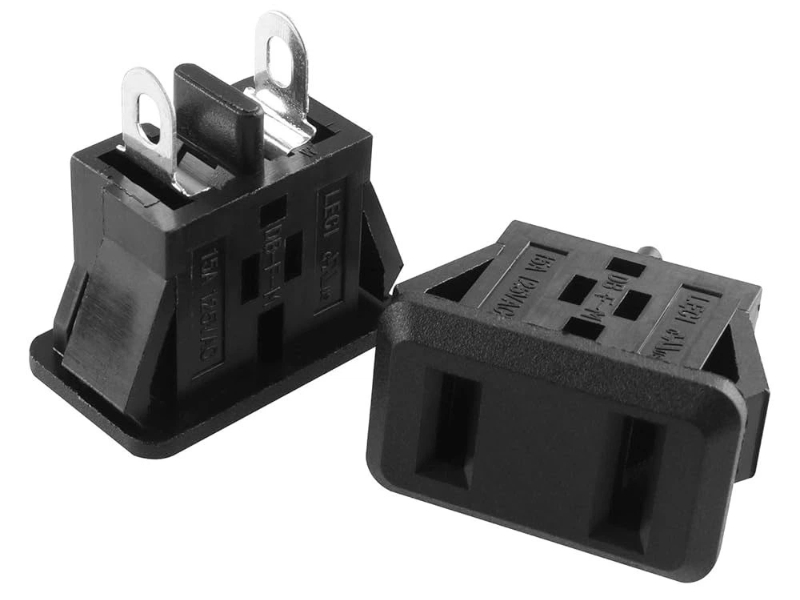

Power sockets are vital components in electrical systems, connecting electrical appliances to power sources. Ensuring their durability and safety through rigorous testing is essential to prevent failures, hazards, and to meet quality standards. This article thoroughly explores the methods, equipment, standards, and best practices for testing power socket durability and safety, providing a comprehensive understanding for manufacturers, suppliers, and quality assurance professionals.
Durability refers to a power socket's ability to maintain functionality under repeated use and adverse environmental conditions. Safety ensures that the socket poses no electrical or mechanical hazard during operation, protecting users from electric shocks, fire risks, and mechanical failures.
Several key factors affect power socket durability and safety:
- Mechanical wear from frequent plugging and unplugging cycles can degrade contacts and springs, leading to poor connectivity or socket failure.
- Electrical stress, including current loads, arcing, and short circuits, can damage internal components or insulation materials if not properly rated or tested.
- Environmental influences such as moisture, dust, temperature variations, and corrosive agents like salt spray can deteriorate materials and electrical insulation.
- Material corrosion and degradation over time reduce the lifespan of socket components, especially in harsh operating environments.
Testing power sockets addresses these issues through standardized procedures and specialized equipment, ensuring products meet durability and safety requirements.
Mechanical endurance tests simulate real-life usage by repeatedly inserting and removing plugs from the socket to measure wear resistance and mechanical stability.
- The Plug-In/Plug-Out Cycle Test performs tens of thousands of automated cycles that mimic typical daily use. This test verifies that contacts maintain reliable electrical connection and mechanical integrity over time.
- Wear and Fatigue Testing examines degradation in components such as springs and metal contacts to ensure the socket will not fail due to material fatigue or wear after prolonged use.
Equipment used includes automated durability test machines equipped with robotic arms capable of precise, repetitive plug-in/out motions while under electrical load. This automation increases test accuracy and simulates realistic operational conditions more reliably than manual testing.
Once mechanical endurance is assessed, sockets must undergo rigorous electrical safety tests to confirm that wear or damage has not compromised isolation or conductivity.
- The Insulation Resistance Test measures the resistance between live parts and earth grounding to ensure leakage currents are within safe limits, preventing electrical shock risks.
- The Dielectric Withstand Test subjects the socket to a high-voltage charge to detect any breakdown of insulation or dielectric material.
- The Contact Resistance Test evaluates resistance levels across socket contacts for any increases due to corrosion or wear which may impede safe current flow.
- Overcurrent and Short-Circuit Tests simulate electrical faults, ensuring that the socket can handle fault currents without causing fire or electric hazards.
These tests are crucial in confirming the socket's ability to maintain electrical safety throughout its intended lifespan.
Power sockets are often used in various environments where exposure to temperature extremes, moisture, dust, and corrosive substances can negatively impact performance and safety.
- The Temperature Shock and Cycling Test rapidly cycles sockets through high and low temperatures to check thermal stress resistance and identify potential material cracking or warping.
- The Humidity and Condensation Test exposes sockets to high moisture levels, evaluating their ability to prevent moisture ingress that can cause corrosion or short circuits.
- The Salt Spray Corrosion Test simulates exposure to salty, marine environments to assess corrosion resistance of metallic parts and coatings, ensuring the socket remains safe and functional in coastal or industrial settings.
By subjecting sockets to these harsh simulated environmental conditions, manufacturers ensure their products can withstand real-world challenges without compromising durability or safety.
Sockets may experience shocks or vibrations during transportation, installation, or operation, especially in industrial or automotive applications.
- Vibration Testing subjects sockets to varied frequencies and amplitudes to assess their mechanical robustness and stability under continuous vibrations.
- Mechanical Shock Testing delivers sudden impacts mimicking drops or knocks, verifying that the socket's construction can endure such stresses without loss of function or safety.
These tests confirm that sockets have sufficient mechanical strength to survive impacts and vibrations typical in everyday usage and handling.
- Aging and Accelerated Life Testing: Accelerated life tests use increased stress levels such as elevated temperature, current overload, or mechanical cycling to predict long-term socket reliability within shorter test durations.
- Customized Fixture Designs: Power sockets come in numerous types and sizes, including micro switches, toggle switches, push-button switches, and sliders. Custom fixtures tailored to each socket type ensure accurate simulation of real-world usage during mechanical and electrical tests.
- Electronic Data Recording: Modern laboratories integrate digital systems for automatic data recording, enabling detailed tracking of test cycles, failures, and performance trends. This improves defect analysis and quality control efficiency.
To ensure global market acceptance and user safety, power socket testing adheres to internationally recognized standards, including:
- IEC/EN 61058-1 & GB/T 15092.1: These specify general requirements and test methods for switches used in electrical appliances, covering durability and safety tests for sockets and switches.
- IEC 60068 Series: Defines environmental testing protocols, including temperature, humidity, shock, and vibration tests applicable to connectors and housings.
- ASTM B794: Specifies standardized test methods for wear and durability of electrical connectors, relevant to socket contact wear resistance.
Compliance with these standards ensures consistent product quality, safety, and reliability across different regions and applications.
1. Sample Preparation: Representative samples of power sockets, including versions with safety features such as child-proof shutters, are selected for testing.
2. Mechanical Durability Testing: Samples undergo automatic cycles of plug insertion and removal to simulate years of use.
3. Electrical Safety Testing: Insulation resistance, dielectric withstand, contact resistance, and overcurrent tests are conducted both before and after mechanical endurance testing.
4. Environmental Testing: Samples are subjected to temperature cycling, humidity, and salt spray exposure to verify resilience to harsh conditions.
5. Vibration and Shock Testing: Sockets are exposed to vibration frequencies and mechanical shocks reflecting transportation and operational environments.
6. Data Recording and Analysis: Test results are meticulously recorded, analyzed, and compared against pass/fail criteria to assess product quality.
7. Final Inspection and Certification: Comprehensive reports are compiled to document compliance for certification purposes and customer assurance.
Testing power socket durability and safety is a comprehensive, multi-dimensional process that combines mechanical, electrical, environmental, and endurance evaluations. Through rigorous testing protocols, manufacturers can ensure that power sockets are resistant to mechanical wear, electrical faults, environmental damage, vibration, and shocks. Adhering to recognized standards and deploying automated testing systems allow for precise, efficient, and reproducible results. Ultimately, thorough testing safeguards users against electrical hazards and enhances product longevity, fostering confidence in sockets supplied to domestic and international markets.
Durability tests usually simulate 10,000 to 30,000 plug-in/plug-out cycles, replicating many years of normal operation and helping verify the socket's mechanical and electrical longevity.
Electrical safety tests such as insulation resistance, dielectric withstand voltage, and contact resistance measurements are conducted after mechanical cycling to confirm that wear has not compromised safety parameters.
Testing involves exposure to temperature extremes (high and low), humidity and condensation, and salt spray corrosion to evaluate the socket's resistance to moisture ingress, thermal stress, and corrosion.
Yes, modern testing facilities employ automated machines with robotic arms that precisely perform durability cycles and environmental tests while electronically capturing data for accuracy and efficiency.
Vibration and mechanical shock tests simulate real-world stresses encountered during transportation and use, ensuring that sockets maintain their mechanical integrity and reliable electrical contact under such conditions.
