Micro switches are indispensable components in modern appliances such as water heaters and dishwashers. Known for their sensitivity, reliability, and compact structure, micro switches serve as crucial control elements ensuring appliance safety and performance. This article delves into the role, types, applications, and top micro switches designed for water heaters and dishwashers, highlighting their importance and technological advances in various models and brands.

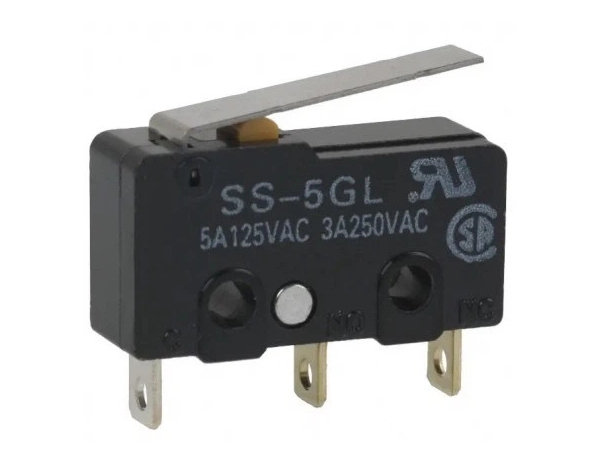

A micro switch, sometimes called a miniature snap-action switch, is an electronic switch activated with minimal physical force. Designed with a mechanical action reed inside, the micro switch swiftly opens or closes electrical circuits when actuated by external mechanical forces via elements like push rods, buttons, or levers. This rapid switching action contributes to precise and reliable control of electrical operations in appliances, minimizing wear and tear while improving response time.
Key components of a micro switch typically include:
- Push Rod: Transmits external force to trigger the switch.
- Button: The user interface part for direct activation.
- Lever: Amplifies force to actuate the switch with less effort.
- Terminals: Connect the internal circuitry with external electrical lines.
When a small force is applied to the actuator, the internal spring mechanism flips rapidly, changing the contact state from normally closed (NC) to normally open (NO) or vice versa. This snap-action mechanism ensures minimal contact bounce, enhancing switch longevity and signal stability.
In water heaters and dishwashers, these switches control critical operations such as flow detection, temperature regulation, and safety cut-off to prevent hazards like overheating or dry heating.
Micro switches come with a variety of actuator styles, each suited to different application needs:
- Button Plunger: Direct vertical movement to actuate the switch; commonly used where straightforward pressing is sufficient.
- Roller Lever: A lever with a roller at the tip reduces friction and wear when actuated by sliding or rotating components.
- Hinge Lever: Provides increased travel distance and lower actuation force, popular in detecting mechanical movements.
- Simulated Roller: Similar to a roller lever but with fixed bumpers to create a rolling action.
Choosing the correct actuator type is essential for ensuring the micro switch properly interfaces with the appliance mechanism, providing reliable and consistent activation.
Water heater micro switches monitor and regulate several vital processes that ensure user safety and efficient performance.
- Water Flow Detection: Modern electric water heaters rely on micro switches integrated with flow sensors or mechanical valves that detect when hot water is demanded. The switch closes the heating circuit only when water flow is present, preventing the element from heating without water, which would cause damage or hazardous overheating.
- Temperature Control: Micro switches act as safety cutoffs triggered by bimetallic strips or thermostats. If water temperature exceeds safe limits, the switch opens to cut power to the heating element, preventing scalding and appliance damage.
- Safety Protection: In some gas or hybrid water heaters, micro switches work together with gas valves to control ignition sequences and shutoff functions. If irregularities such as flame failure or gas leaks occur, the micro switch signals for automatic shutdown, reducing fire risk.
- G5W11 Series: Renowned for longevity and precision, the G5W11 micro switch features a high load capacity and tight switching tolerances. Its ability to withstand high temperatures makes it suitable for integration close to heating elements.
- Eccotemp L10 Microswitch: Specifically designed for Eccotemp's tankless water heaters, this micro switch provides reliable water flow and safety signaling to control ignition and heating with minimal maintenance requirements.
- Camplux BD Series Microswitch: Tailored for gas and water valve assemblies, this model supports safe gas ignition control by mechanically linking to valve actuators for automatic cut-offs and smooth operation cycles.
Water heaters subject micro switches to harsh conditions such as steam, high humidity, and temperature fluctuations. Hence, these switches often feature:
- Sealed Casings: To prevent moisture ingress and corrosion of internal components.
- High-Temperature Resistant Materials: Plastic and metal parts that endure continuous heat exposure.
- Robust Contacts: Gold or silver alloy contacts allow stable, low-resistance electrical conduction even after millions of actuations.
Selecting switches with these enhancements extends appliance lifespan and reduces failure rates for manufacturers and users.
In dishwashers, micro switches serve as highly efficient sensors and control points that coordinate mechanical and electrical operations throughout the cleaning cycle.
- Door Detection: Dishwashers must not operate when the door is open. Micro switches positioned on door latches accurately detect whether the door is securely closed, enabling or disabling power to pumps and heaters.
- Water Level Sensing: Some models use mechanical float systems linked to micro switches to monitor water levels, preventing overflow or engaging refill mechanisms as needed.
- Cycle Control: Wash cycle selectors and timer mechanisms incorporate micro switches to register settings and trigger successive phases of the cleaning process.
- Drain and Rinse Controls: Positioning micro switches in drain pump assemblies or detergent dispensers allows precise control over activation times to save water and electricity.
- High Repetition Durability: Dishwasher door switches operate daily, multiple times, so micro switches used are rated for millions of cycles without loss of functionality.
- Compact Design: Essential due to limited internal space, especially in countertop or built-in dishwashers.
- Low Actuation Force: Allows quieter and smoother operation, so door latches and buttons feel smooth and durable to the user.
- Subminiature Micro Switches: Extremely small with delicate actuator options, designed for tight spaces and frequent, light switches.
- Roller Lever Micro Switches: Found in mechanisms where moving parts gently engage the switch, such as detergent dispensers or spray arms.
Our Chinese factory specializes in manufacturing high-quality multi-position switches, including micro switches, slide switches, tactile switches, and push-button switches. We cater OEM services globally to meet diverse appliance manufacturers' demands.
- Actuator Design: We offer customization in actuator types, lengths, shapes, and materials to integrate micro switches seamlessly into water heaters and dishwashers.
- Electrical Ratings: Switches are designed to withstand specific voltages and currents, with variations for AC and DC applications.
- Environmental Specifications: Options include IP-rated dust and water sealing, heat resistance, and corrosion-proof finishes.
- Terminal Variations: Diverse terminal configurations like quick-connect, solder lugs, or PCB pins tailored for manufacturing processes.
Our production emphasizes advanced technology and quality control to support clients in delivering durable, reliable home appliances with superior switching components.
| Feature | Water Heater Application | Dishwasher Application |
|---|---|---|
| Size | Compact for limited spaces | Subminiature for confined installation |
| Sensitivity | High sensitivity for flow and temperature detection | Accurate door and water level sensing |
| Reliability | Long life with consistent performance | Can withstand frequent cycles |
| Safety | Prevents overheating and dry heating | Ensures safe operation via door detection |
| Customizability | Variety of actuators (push rod, lever) and terminals | Multiple actuator options including roller and pin types |
Additionally, micro switches contribute to energy efficiency by preventing unnecessary power consumption through precise on/off control. They also simplify appliance design by providing robust yet inexpensive sensing and control elements.
Micro switches are fundamental yet often overlooked components in water heaters and dishwashers. Their precision, sensitivity, and safety functions ensure that these appliances operate efficiently and securely. As technology advances, the availability of highly customizable and high-performance micro switches has grown, benefiting manufacturers and end-users alike. Choosing the right micro switch not only enhances appliance reliability but also extends its operational lifespan.
Our Chinese factory, with years of experience in producing multi-position switches including micro, slide, tactile, and push-button switches, offers OEM services tailored to the needs of international brands and manufacturers. We emphasize quality, innovation, and customer service to meet diverse application requirements in water heaters and dishwashers.
The micro switch detects water flow and temperature to control the heating element, preventing dry heating and overheating for safety and efficiency.
It detects door closure and water presence, ensuring the dishwasher operates only when conditions are safe.
Yes, micro switches come with various actuator types, terminal configurations, and force ratings to fit specific appliance designs and OEM requirements.
Signs include failure to ignite, inconsistent heating, or safety shutoffs; technical inspection or replacement may be needed.
Professional manufacturers provide quality-assured products with competitive pricing and customization options suitable for global appliance brands.
