In the expanding field of industrial automation and electronic device manufacturing, micro switches remain pivotal components for reliable control and precision. For 2025, the demand for heavy-duty micro switches that offer durability, high performance, and flexibility continues to grow significantly, especially for applications ranging from machinery controls to consumer electronics. This article presents a comprehensive guide—and visual showcase—of the best micro switches suitable for heavy-duty use, highlighting key features, technological advancements, and factors to consider when selecting micro switches for robust applications.
A micro switch is a compact, highly sensitive switch that mechanically toggles contact points swiftly from one position to another. Despite their name and small size, micro switches deliver significant performance in electrical switching, especially in applications requiring rapid and repeated operation, such as safety interlocks, limit switches, and automated machinery controls.
Heavy-duty micro switches must withstand harsh environments, higher electrical loads, and repeated mechanical actuations without degradation. This durability factor is critical for industries such as manufacturing, automotive, aerospace, and home appliances, where failure could lead to downtime, safety hazards, or costly repairs.
Heavy-duty micro switches for 2025 come with enhanced current carrying capabilities, often rated for up to 600 VAC and 250 VDC, with currents up to 10A or more. This ensures they can handle larger electrical loads safely without the risk of welding contacts or premature failure. Some advanced models push these limits even further, offering options with current ratings exceeding 15A to accommodate especially demanding industrial applications.
The housings of heavy-duty micro switches utilize rugged materials such as zinc die-cast with epoxy coatings. This construction provides resistance to corrosion and mechanical wear, making them suitable for both indoor and outdoor applications, including exposure to moisture and dust, with protection ratings reaching NEMA 4X and IP67 standards. Moreover, the internal components employ high-grade metals such as silver alloys for contacts, ensuring low contact resistance and high durability under frequent switching cycles.
Flexibility is offered through a broad range of actuator styles:

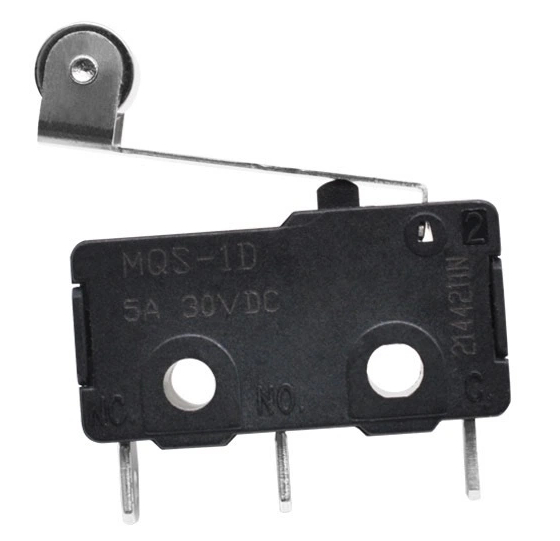

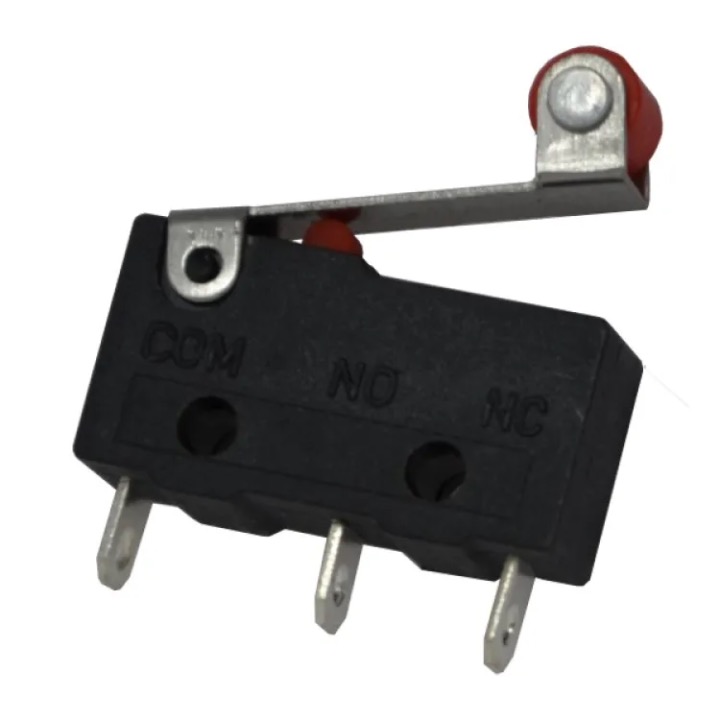

- Roller levers: Provide smooth actuation and are ideal for applications requiring operation by moving parts or cams.
- Wobble actuators: Offer enhanced operating angles and are suitable for restricted spaces.
- Pin plungers: Compact and reliable for precise actuation.
- Straight levers: Simple and robust, used in many mechanical systems.
Adjustable rotary heads allow for field configuration to clockwise (CW), counterclockwise (CCW), or dual actuation, reducing inventory complexity for end users. Some manufacturers also provide custom actuator shapes or lengths to meet unique application needs, further broadening the versatility of these switches.
Heavy-duty micro switches are sealed against water, dust, and chemicals, crucial for harsh environments such as manufacturing plants or outdoor equipment. Sealing levels of IP65 to IP67 ensure dependable operation even under high humidity or washdown conditions. Additionally, some switches incorporate special internal coatings or gel encapsulation to protect sensitive electronics from conductive dust or corrosive gases found in certain manufacturing or chemical processing environments.
A primary advantage of heavy-duty micro switches is their long operational life, often rated for millions of cycles both mechanically and electrically. This reliability is achieved through optimized contact designs and robust actuator mechanisms that minimize wear and contact bounce. Enhanced contacts coated with noble metals, such as gold or palladium, further reduce oxidation risks, maintaining consistent performance over extended periods.
Modular construction allows for fast servicing and reduced downtime on production lines, where operators can unplug the switching component without rewiring, a vital feature for high-volume industrial settings. This modularity also supports easier inventory management, as core switch bodies can be paired with various actuators or contact configurations per on-site requirements, speeding up maintenance and reducing costs.
Heavy-duty micro switches aimed at global markets comply with multiple industry standards, including UL, CSA, EN, IEC, and RoHS directives. Compliance ensures safety and reliability, and also simplifies integration in multinational manufacturing environments. Additionally, many switches possess certifications for explosion-proof or intrinsically safe designs required in hazardous locations such as oil refineries or mining operations.
Honeywell leads the heavy-duty micro switch segment with its HDLS series, featuring:
- 600 VAC / 250 VDC, 10A rating
- Modular zinc die-cast housing with epoxy coating
- Multiple actuator styles including roller lever and wobble actuator
- NEMA 1, 3, 4, 4X, 6, 6P, 12, and 13 sealing standards
- Field-adjustable rotary heads for versatile applications
Honeywell's stringent quality control ensures these switches excel in both electrical and mechanical life spans, making them a top choice for automation and control systems that demand uncompromising reliability.
TE Connectivity's HCP series extends options into heavy current ratings up to 26A with sturdy lever actuators, designed for converting mechanical movement into electrical action. Their switches meet demanding standards for home appliances and industrial automation. The HCP series also offers options with screw terminal and quick-connect configurations, catering to diverse installation preferences without sacrificing durability.
- OMRON, known for high-performance automation switches with precise engineering and long life.
- MARQUARDT, offering durable switches for automotive and industrial controls with innovative actuator designs.
- Panasonic and ZF, providing reliable switches for heavy-duty environments with global manufacturing footprints.
- DONGNAN and Kailh, recognized in China and internationally for quality OEM micro switches suited for various application requirements, many of which are customizable to OEM specifications for global brand partners.
Heavy-duty micro switches find critical roles in many sectors:
- Industrial machinery controls — limit switches for safety and operational feedback to prevent equipment damage or unsafe conditions.
- Automotive systems — door locks, seat adjustments, gear shifters, and detection switches critical to vehicle safety and user comfort.
- Home appliances — reliable micro switches ensure safe operation of microwave ovens, washing machines, dishwashers, and HVAC controls.
- Medical devices — pumps, diagnostic tools, and monitoring equipment use micro switches for critical on/off and position detection functions.
- Energy and utilities — control panels in power generation, transmission, and distribution systems that require reliable mechanical switching.
- Robotics and automation — precision switches for position detection, limit sensing, and emergency stop functions in robots and automated guided vehicles.
- Agricultural and construction equipment — rugged switches able to withstand dust, mud, vibration, and temperature extremes.
Selecting the right micro switch involves several technical considerations to ensure the switch will function properly and reliably throughout the product lifecycle.
- Electrical Ratings: It is vital to select a micro switch with a current and voltage rating that exceeds the maximum operating conditions, especially when switching inductive loads like motors or transformers that create voltage spikes.
- Mechanical Life: The switch should have a mechanical life rating appropriate for the device's expected use frequency. For instance, a machine that cycles thousands of times per day demands switches rated for millions of cycles.
- Operating Force: The amount of force required to actuate the switch affects device ergonomics and mechanical design. Lower forces can improve sensitivity and reduce user fatigue, but higher forces may be necessary to avoid false triggering in harsh environments.
- Environmental Rating: Understanding the operating environment is crucial. Selections should be based on ingress protection (IP) and NEMA ratings that correspond to exposure to water, dust, chemicals, or extreme temperatures.
- Actuator Style: The physical arrangement of the switching mechanism must match the application's mechanical interface. For example, roller levers are preferred for cam-driven switches, while pin plungers are often used in compact panels.
- Mounting and Size: The physical dimensions and mounting options must be compatible with existing hardware and installation practices to prevent costly machinery modifications.
- Reset Functionality: Some micro switches feature manual or automatic reset capabilities, an important consideration for safety applications where intentional reset is necessary to prevent accidents.
- Customization: For OEM applications, the ability to customize actuator lengths, contact materials, terminal types, and labels can streamline integration and branding.
The field of micro switches continues to evolve with technological advancements focused on improving reliability, environmental resilience, and ease of integration.
- Smart Micro Switches: Integration with sensors and IoT technology allows real-time condition monitoring, predictive maintenance alerts, and remote diagnostics of switch health, reducing the risk of unexpected failure.
- Eco-friendly Materials: The push towards greener manufacturing encourages the use of lead-free solder, halogen-free plastics, and recyclable materials in switch construction without compromising performance.
- Compact and Miniaturized Designs: As circuitry shrinks, micro switches are also scaling down in size while maintaining high ratings, enabling their use in space-constrained electronics.
- Enhanced Contact Technology: Novel coatings and contact geometries reduce wear and lower operating force, increasing switch lifespan beyond traditional limits.
Heavy-duty micro switches remain indispensable components in modern industrial and consumer device control systems. For 2025, the best micro switches combine high electrical ratings, rugged construction, versatile actuators, and superior environmental sealing to meet the stringent demands of heavy-duty applications. Brands like Honeywell and TE Connectivity provide leading solutions with modular designs and adaptability for a wide spectrum of industries. Advances in materials and smart technology integration further enhance these switches' reliability and functionality. Proper selection based on application criteria ensures enhanced reliability, safety, and extended operational life, making micro switches a cornerstone of dependable automation and control.
Heavy-duty micro switches have higher electrical load ratings (up to 600 VAC and 10A or more), rugged construction with superior sealing (like IP67), and durable actuators designed to withstand harsh environments and frequent actuations. They also feature longer mechanical and electrical lifespans tailored for industrial and safety-critical applications.
Yes. Quality micro switches specify their AC and DC voltage and current ratings. Heavy-duty switches handle both but must be selected to match the load type, especially for inductive applications such as motors or transformers where voltage spikes may occur.
Actuator style affects the switch's mechanical operation and suitability for particular applications. Options like roller levers or wobble actuators offer smoother operation, longer lifecycle, and better compatibility with machine components. The right actuator reduces mechanical wear and improves reliability.
Many heavy-duty micro switches come with IP65 to IP67 ratings, making them resistant to water jets and temporary immersion. This makes them ideal for wet or outdoor environments, washdown applications, and dusty or dirty industrial settings.
Modular designs enable quick field replacement of the switching component without rewiring or opening conduits, drastically reducing downtime and maintenance costs on production lines. They also facilitate easier customization and reduce inventory complexity.
