In the realm of electronic control and automation, micro switches play an essential role. As a Chinese factory specializing in multi-position switches and providing OEM services to international brands and distributors in the fields of micro switches, slide switches, tactile switches, and push-button switches, understanding the distinctions between different switch types is critical for offering the most suitable solutions to clients. This article delves deeply into comparing SPDT (Single Pole Double Throw) and DPDT (Double Pole Double Throw) micro switches, their mechanisms, applications, and advantages.
Micro switches are compact, highly sensitive switches designed to actuate electrical circuits quickly and reliably. Often referred to as "snap-action" switches, they are widely utilized in automation equipment, consumer electronics, automotive applications, and home appliances due to their small size and durability.
These switches come in various configurations, with SPDT and DPDT being among the most common types for versatile circuit control. Their snap-action mechanism ensures a rapid changeover of the switch contact state with a very small operating force, which contributes to their longevity and dependable performance in countless electronic devices.

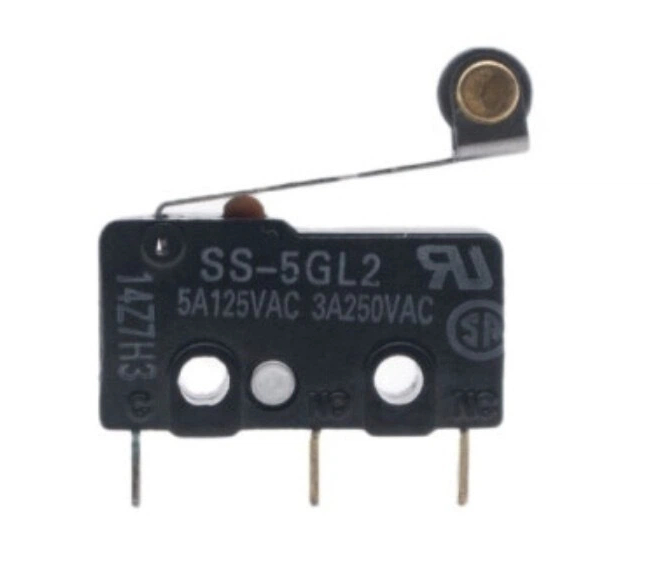

- Structure: An SPDT switch has one pole (single input) and two throws (two outputs). It contains three terminals: one common input and two switched outputs.
- Functionality: It can connect the input to either output, switching the current flow between two circuits, but never both simultaneously. This function is often referred to as a changeover or transfer switch.
- Positions: Typically two positions (ON-ON), allowing switching between two different circuits or paths.
- Applications: Often used where one needs to select between power supplies, alternate signal paths, or lighting control from two switches (for example, staircase lighting).
- Structure: A DPDT switch functions as two SPDT switches combined into one unit; it has two poles (two inputs) and two throws per pole, with a total of six terminals.
- Functionality: It operates two independent circuits at once, allowing switching between two sets of connections simultaneously.
- Positions: Usually two (ON-ON) or three (ON-OFF-ON) positions, offering more complex control options.
- Applications: Ideal for reversing motor polarity, controlling two separate devices simultaneously, or switching complex machinery circuits.
| Feature | SPDT | DPDT |
|---|---|---|
| Number of Poles | 1 | 2 |
| Number of Throws | 2 | 2 per pole (total 4 throws) |
| Terminals | 3 | 6 |
| Positions | 2 (ON-ON) | 2 or 3 (ON-ON or ON-OFF-ON) |
| Circuit Control | Controls single circuit | Controls two circuits simultaneously |
| Switching Capability | Switches current between 2 circuits | Switches or reverses two circuits |
| Use Case Examples | Selecting power source, lighting control | Motor control, double circuit switching |
| Size & Complexity | Simpler and smaller | Larger, more complex |
| Power Handling | Generally less | Can handle more due to dual circuits |
Choosing the right micro switch depends on your application requirements:
1. Number of Circuits to Control:
- If you control only one circuit with two possible outputs, SPDT is sufficient.
- For simultaneous control of two circuits, DPDT is required.
2. Complexity of Control Needed:
- Simple toggling or transfer can be addressed by SPDT switches.
- Complex switching such as polarity reversal or multi-load control needs DPDT.
3. Space Constraints:
- SPDT switches are compact and fit tight spaces.
- DPDT switches may require more room due to extra terminals.
4. Cost & Supply Chain:
- SPDT switches are generally less expensive and easier to source.
- DPDT switches are pricier but more versatile in industrial environments.
The rapid snap-action mechanism inside micro switches allows for consistent and reliable switching under demanding conditions. SPDT micro switches, being simpler in construction, typically have a slightly longer mechanical life cycle because of fewer internal components and lower complexity. DPDT switches, due to the doubling of contacts and possible increased wear with dual circuits, may have slightly lower lifecycle ratings but are engineered to meet high durability standards as well.
Materials used in the contact points, such as silver alloys, influence both types' electrical conductivity and switching life. In OEM manufacturing, specifying the appropriate actuation force and contact material is essential to ensure the micro switches meet the application's voltage, current, and endurance requirements.
Both SPDT and DPDT micro switches come in a range of electrical ratings, typically from a few volts and milliamps for low-power electronics up to hundreds of volts and multiple amperes for industrial and automotive applications.
Choosing a micro switch with the correct electrical specifications is critical—for example, ensuring the switch can safely carry the maximum expected current without contact bouncing or overheating. The DPDT switch, controlling two poles, should be rated to handle total load current on each pole to prevent premature failure.

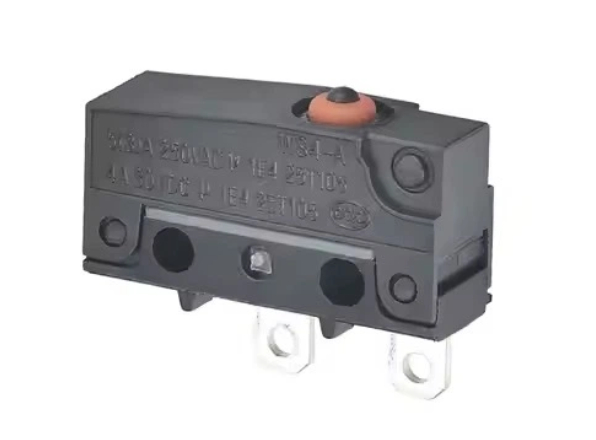

Manufacturers also offer sealed or water-resistant versions of both SPDT and DPDT micro switches for use in harsher environments such as outdoor equipment or automotive sectors.
As a Chinese manufacturer providing OEM services, customization is a vital strength. One can modify operating force, actuator shape (lever, roller, button), contact materials, terminals orientation, and mounting style (PCB mount, panel mount) to meet exact client specifications. Both SPDT and DPDT micro switches can be enhanced with dust seals, waterproof casings, or extended actuator arms for specific industrial usage scenarios.
Combining micro switches with slide switches, tactile switches, and push-button switches allows your clients to offer comprehensive switch assemblies tailored to different control panels, consumer devices, or automotive dashboards.
- SPDT Micro Switch Use Case:
In a home lighting system, an SPDT micro switch can be used as a stairway light changeover switch. Pressing the switch toggles the light between two power sources or control lines, ensuring the light turns on or off from two different locations.
- DPDT Micro Switch Use Case:
In robotics or automation, a DPDT micro switch is often used to reverse the polarity of a DC motor. Flipping the switch changes motor rotation direction while controlling two separate circuits (positive and negative lines) simultaneously.
In consumer electronics, DPDT switches can be employed to switch audio output between headphones and speakers while controlling two audio channels at once.
When integrating SPDT or DPDT micro switches into a device or system:

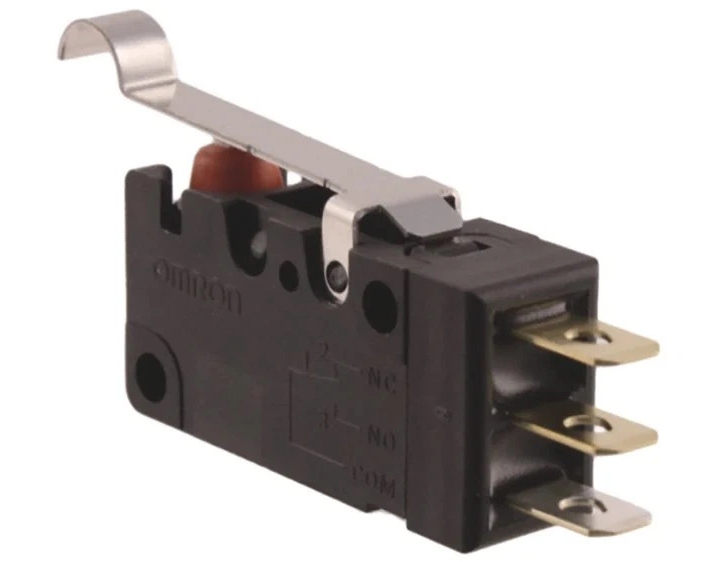

- Confirm terminal identification clearly before wiring. Using standard terminal labeling (Common, Normally Open, Normally Closed) helps avoid wiring errors.
- Use crimp or solder connections suitable for the terminal design. For repetitive maintenance, quick-disconnect terminals improve serviceability.
- Respect the load ratings to avoid overheating or premature switch failure.
- Ensure the actuator arm or button moves freely and correctly actuates the internal mechanism. Mechanical interference or binding can shorten switch lifespan.
Micro switches generally require minimal maintenance, but common issues can include:
- Contact wear or corrosion causing intermittent operation.
- Mechanical damage or actuator misalignment preventing proper switching.
- Dust ingress leading to impaired contact performance (especially in non-sealed versions).
Preventive maintenance includes regular visual checks, cleaning contacts with compressed air, and operating the switch through cycles to ensure smooth function. Using sealed switches helps mitigate environmental risks.
- High Precision and Reliability: Micro switches are capable of acting on very small physical movements, providing reliable and repeatable contact switching.
- Long Mechanical Life: Their snap-action mechanism significantly extends operational cycles compared to conventional switches.
- Compact Size: Space-saving designs allow them to fit into dense electronic assemblies or compact consumer devices.
- Versatile Configurations: Options like SPDT and DPDT enable tailored circuit control for myriad applications.
| Consideration | Recommendation |
|---|---|
| Switch Type Selection | SPDT for simple circuit switching; DPDT for multi-circuit or polarity reversal |
| Environmental Protection | Use sealed or dust-proof switches for harsh environments |
| Actuator Style | Customize actuator shape and force to match user interface or automation needs |
| Electrical Ratings | Match voltage and current ratings strictly to application specs |
| Terminal Type | Provide options (PCB pins, solder tabs, quick connect) for easier integration |
Choosing between SPDT and DPDT micro switches boils down to application requirements. SPDT switches provide straightforward, reliable switching between two outputs for a single circuit and are ideal for space-limited, cost-sensitive scenarios. DPDT switches offer enhanced functionality, managing two independent circuits simultaneously and enabling advanced controls like motor polarity reversal.
As an OEM micro switch manufacturer, understanding these nuances enables your factory to tailor micro switch solutions that meet diverse client demands and expand your product portfolio. Combining your expertise in multi-position switches and customization can differentiate your offerings in a competitive global market.
SPDT stands for Single Pole Double Throw, meaning the switch has one input and two selectable outputs, enabling it to toggle the circuit connection between two different paths but never both at the same time.
A DPDT switch integrates two SPDT switches into one unit with a common actuator, allowing simultaneous control of two independent circuits through six terminals.
No. An SPDT switch can only manage one circuit at a time. For controlling or switching multiple circuits simultaneously, a DPDT or other multi-pole switch is necessary.
They are widely used to reverse DC motor direction, control two devices simultaneously, or perform complex switching in industrial machines requiring separate circuits to be switched in tandem.
Absolutely. Both types can be customized in actuator design, operating force, contact materials, terminal configuration, and environmental sealing, making them ideal for OEM manufacturing to meet specific product requirements.
