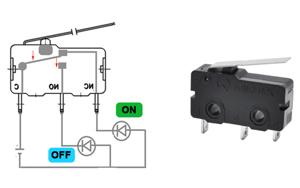

Micro switches operate on the principle of mechanical action and electrical conductivity. When an external force is applied to the actuator of the switch, it causes a mechanical movement that toggles the switch's state from open to closed or vice versa. This mechanism ensures that even a small amount of force can trigger a significant electrical response.

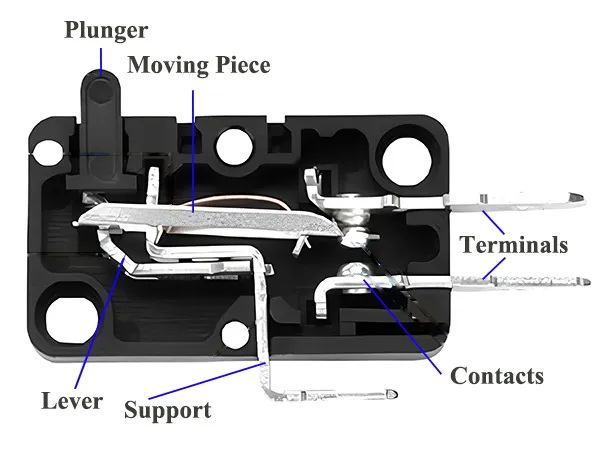

The internal structure of a micro switch includes an actuator, contacts, and a spring mechanism. When pressure is applied to the actuator:
1. The actuator compresses an internal spring.
2. Once the force exceeds a certain threshold, the spring rapidly snaps back.
3. This action moves the contacts within the switch, completing or breaking an electrical circuit.
This swift transition is crucial for applications requiring high precision and reliability.
Understanding the key components of a micro switch is essential for grasping its functionality:
- Actuator: The part that is physically pressed or moved to operate the switch. Actuators can come in various shapes and sizes depending on the application.
- Spring: Provides the necessary force for the snap-action mechanism. The spring's tension determines how much force is needed to activate the switch.
- Contacts: Metal pieces that either connect or disconnect to complete or break the circuit. The quality of these contacts affects the longevity and reliability of the switch.
- Housing: Protects internal components from environmental factors such as dust, moisture, and mechanical stress.
Each component plays a vital role in ensuring that micro switches function effectively over millions of cycles.
Micro switches come in various forms to suit different applications:
- Standard Micro Switches: Commonly used in household appliances like washing machines and microwaves.
- Subminiature Switches: Smaller versions designed for compact devices such as remote controls and electronic toys.
- Sealed Switches: Built to resist dust and moisture, ideal for harsh environments like outdoor machinery or industrial settings.
- Lever Switches: Feature extended actuators for specialized applications where more force is needed to activate the switch.
- Roller Lever Switches: These have a roller on the actuator which allows for smoother operation and can be used in applications where space is limited.
Each type is designed with specific features to meet diverse operational requirements.
Micro switches are found in numerous applications due to their versatility:
- Household Devices: Used in microwaves, refrigerators, washing machines, and HVAC systems for safety features and operational controls. For example, in washing machines, micro switches ensure that doors are securely closed before operation begins.
- Automotive Industry: Employed in brake lights, door locks, power windows, and seatbelt sensors. In vehicles, they help ensure safety by detecting whether doors are closed or if seatbelts are fastened.
- Industrial Machinery: Utilized for limit detection (e.g., ensuring machinery stops at designated points), emergency stops, and control panel buttons. They play a crucial role in automation systems where precise control is essential.
- Consumer Electronics: Found in remote controls, computer peripherals (like mice), gaming controllers, and smart home devices. They provide tactile feedback that enhances user experience.
- Medical Devices: Essential in equipment like infusion pumps and diagnostic tools where reliable operation is critical for patient safety.
The adaptability of micro switches makes them integral to modern technology across various sectors.
Micro switches offer several benefits that enhance their appeal:
- High Reliability: Designed for long operational life with minimal maintenance. Many micro switches can last over 10 million cycles without failure.
- Compact Size: Easy to integrate into space-constrained devices without compromising performance.
- Quick Switching Speed: Ideal for applications requiring rapid response times; they can toggle states within milliseconds.
- Wide Operating Temperature Range: Suitable for both indoor and outdoor use; many models can operate effectively from -40°C to +85°C (-40°F to +185°F).
- Cost-Effective: Provide excellent value for money across multiple applications due to their low manufacturing cost and high durability.
These advantages contribute to their widespread adoption in both consumer and industrial products.
While micro switches are generally reliable components, issues can arise during their lifetime. Here are some common problems along with troubleshooting tips:
If a micro switch does not activate when pressure is applied:
- Check if there is any obstruction preventing movement.
- Inspect the actuator for damage or wear.
- Test continuity using a multimeter to ensure electrical connectivity through contacts.
If a micro switch activates sporadically:
- Ensure that connections are secure; loose wires can cause inconsistent performance.
- Examine the actuator for signs of fatigue or misalignment.
- Clean contacts if there's corrosion or debris affecting conductivity.
Over time, mechanical wear can affect performance:
- Regularly inspect actuators and springs for signs of wear or fatigue.
- Replace worn components promptly to maintain functionality.
- Consider using sealed switches in environments prone to dust or moisture accumulation.
Micro switches exposed to harsh conditions may fail:
- Use appropriate sealed models designed for specific environmental conditions.
- Regularly clean external surfaces to prevent buildup that could affect operation.
- Store unused switches in protective packaging until installation.
By following these troubleshooting tips, users can extend the lifespan of their micro switches and ensure reliable performance throughout their operational life.
Micro switches are indispensable components in modern electronics due to their robust design and high reliability. Their simple yet effective mechanism allows them to perform consistently across various applications. As technology advances, micro switches continue to evolve, meeting increasing demands for precision and durability. Understanding how they work helps us appreciate their role in everyday devices and complex systems alike. With proper selection and maintenance, these small yet powerful components will continue contributing significantly across multiple industries for years to come.
Micro switches are designed for durability and can operate reliably over several million cycles before failure.
Yes, sealed micro switches are specifically designed for outdoor use, protecting components from environmental elements such as dust and moisture.
Consider factors like required current capacity, environmental conditions (temperature/humidity), actuation force (how much pressure is needed), physical size constraints, and mounting options when selecting a micro switch.
The term 'snap action' refers to the rapid movement generated by an internal spring mechanism that provides definitive contact action when activated—ensuring quick response times without requiring sustained pressure on the actuator.
Yes, certain designs incorporate hysteresis mechanisms or additional stabilization features that minimize false triggers caused by external vibrations or noise conditions—especially useful in industrial environments where machinery operates continuously.
