Slide switches are versatile components used in electronic circuits to control the flow of current. They can be utilized to create simple on/off switches or to toggle between different circuit paths. In this article, we will explore how to effectively use a slide switch in Tinkercad with Arduino, providing step-by-step instructions, diagrams, and example code.
A slide switch is a mechanical device that allows users to control an electrical circuit by sliding a lever. The switch typically has three terminals: one common (middle) terminal and two other terminals that connect to either side of the switch. Depending on the position of the slider, one of the two outer terminals connects with the middle terminal, completing the circuit.
To get started with using a slide switch in Tinkercad, you will need the following components:
- Arduino Uno board
- Slide switch
- LED (Light Emitting Diode)
- Resistor (220Ω)
- Breadboard
- Jumper wires
1. Open Tinkercad: Go to the Tinkercad website and create a new circuit project.
2. Add Components: Drag and drop the Arduino Uno, slide switch, LED, resistor, and breadboard onto your workspace.

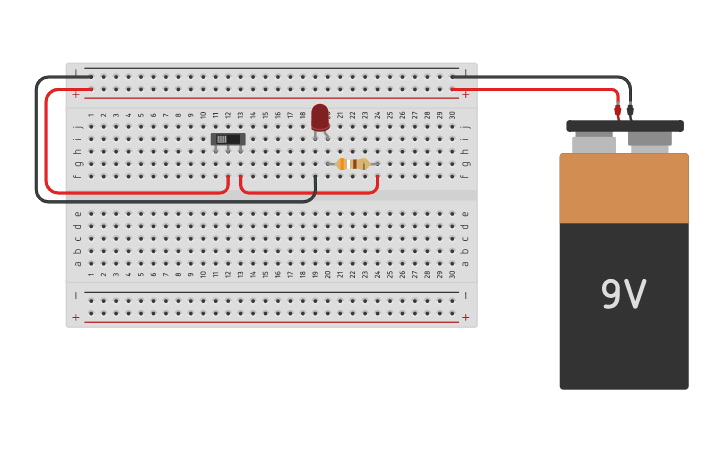

3. Wiring Diagram: Connect the components as follows:
- Connect one terminal of the slide switch to pin 12 on the Arduino.
- Connect the middle terminal of the slide switch to ground (GND).
- Connect the other terminal of the slide switch to 5V on the Arduino.
- Connect the anode (longer leg) of the LED to pin 6 on the Arduino through a 220Ω resistor.
- Connect the cathode (shorter leg) of the LED to ground.
When you slide the switch to one side, it connects either pin 12 to ground or pin 12 to 5V. This change in connection allows you to read different states in your Arduino code. The LED will light up when pin 12 is HIGH (5V) and turn off when it is LOW (0V).
After uploading your code to Tinkercad's simulation environment, click on "Start Simulation." You should see that when you toggle the slide switch, the LED lights up or turns off accordingly.

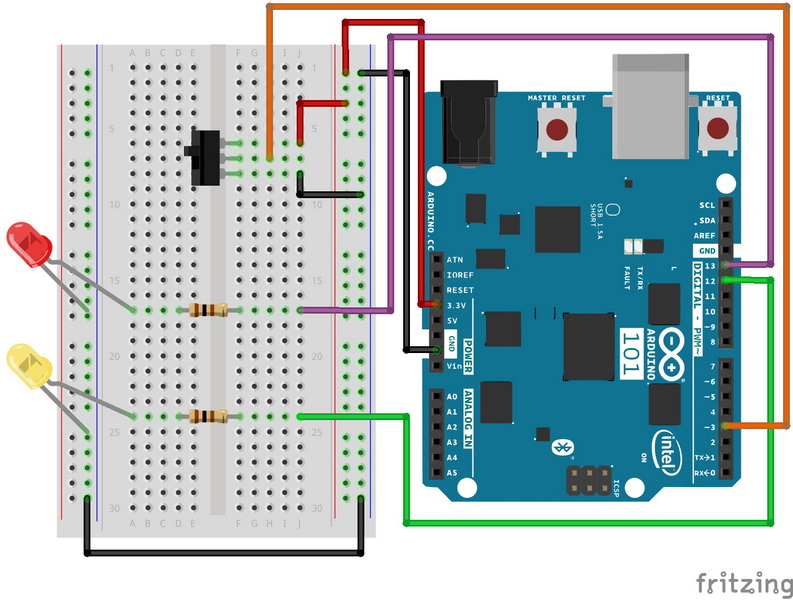

You can also use a slide switch to control multiple LEDs by connecting additional LEDs and modifying your code accordingly. For example:
1. Connect another LED with its anode connected to pin 7 through a resistor.
2. Update your wiring diagram accordingly.
Slide switches can be used in more complex projects beyond just controlling LEDs. Here are some advanced applications:

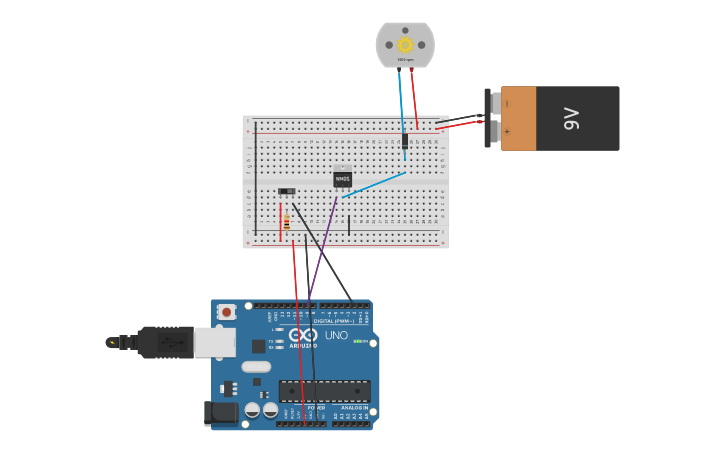

You can use a slide switch for mode selection in projects where different functionalities are required. For example, in a robot car project, one position could activate forward movement while another could activate backward movement.
In battery-operated devices, slide switches can serve as power controls that completely disconnect power from the circuit when not in use.
By using multi-position slide switches (like double-pole double-throw switches), you can create devices that perform multiple functions based on which position is selected.
When working with slide switches and Arduino in Tinkercad or any physical setup, you might encounter some common issues:
- LED Not Lighting Up: Check all connections carefully. Ensure that your resistor is connected properly and that you're using an appropriate value for your circuit.
- Switch Not Responding: Make sure that you're reading from the correct pin in your code and that you've set it as an input.
- Inconsistent Behavior: If your circuit behaves inconsistently, consider adding pull-up or pull-down resistors to stabilize your input readings.
Slide switches are commonly found in various devices we use daily. Here are some practical applications:
Many home appliances utilize slide switches for power control or mode selection. For instance:
- Fans: A simple fan might have a slide switch that allows users to select between low speed, high speed, or off.
- Lighting: Slide switches are often used in lamps where users can choose between different brightness levels or turn them off completely.
In many electronic toys:
- Power Control: Slide switches allow children to turn toys on/off easily without confusion.
- Sound Effects: Some toys feature sound effects controlled by sliding mechanisms that engage different sound circuits based on their position.
For hobbyists working with Arduino:
- Interactive Exhibits: In museum displays or educational settings where interactivity is key, slide switches can allow visitors to engage with exhibits by selecting options easily.
- Robotics: In robotic applications where different modes are required (e.g., autonomous vs manual control), implementing a multi-position slide switch simplifies user interaction.
When integrating slide switches into designs:
Ensure that the size of your chosen slide switch fits well within your project's design constraints while allowing easy access for users.
Select high-quality switches rated for sufficient cycles if they will be used frequently over time.
Consider how visible or accessible you want your controls; sometimes integrating them into designs helps maintain visual appeal while ensuring functionality.
Using a slide switch in Tinkercad with Arduino is straightforward and opens up numerous possibilities for controlling circuits. By understanding how to wire it correctly and write simple code for it, you can create various projects that require toggling between states or controlling multiple outputs. The flexibility of using slide switches makes them an essential component for both beginners and advanced electronics enthusiasts alike.
A slide switch is used for controlling electrical circuits by connecting or disconnecting them based on its position. It can be used for simple ON/OFF controls or for toggling between multiple states.
Connect one terminal of the slide switch to an Arduino digital input pin, connect another terminal to ground (GND), and connect the middle terminal to power (5V). Use additional components like LEDs and resistors as needed for your project.
Yes! You can control multiple LEDs with a single slide switch by connecting each LED to different pins on the Arduino and modifying your code accordingly.
If connected incorrectly, your circuit may not function as intended—LEDs may not light up or may stay permanently on. Always double-check your connections against your wiring diagram.
You will need basic Arduino code that reads the state of the input pin connected to your slide switch and uses conditional statements (`if` statements) to control output pins connected to LEDs or other components based on that state.
