Micro switches have undergone a remarkable transformation since their inception, evolving from simple mechanical devices to sophisticated smart components integrated with cutting-edge technology. This evolution reflects broader trends in industrial automation, electronics, and the Internet of Things (IoT), enabling micro switches to serve diverse applications with increasing precision, durability, and intelligence. This article explores the comprehensive journey of micro switches, spotlighting their history, technological advancements, key players, modern innovations, and future prospects.

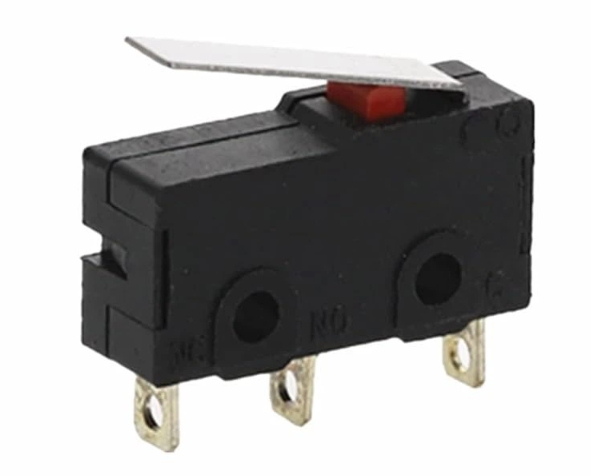

Micro switches are electromechanical switches that operate with very little physical force and feature snap-action mechanisms, allowing for rapid opening and closing of electrical contacts. They have become essential components in industrial machinery, consumer electronics, automotive systems, and more, delivering reliable and precise control in myriad applications.
The micro switch was invented in 1932 by Peter McGall and W.B. Hannan while working for the Burgess Battery Company in Illinois. McGall's invention was motivated by the need for a reliable, highly sensitive switch capable of rapid actuation with minimal effort. The design utilized a snap-action mechanism that allowed the switch to change state quickly and consistently, minimizing contact bounce and wear.
In 1933, Honeywell patented this design and launched the MICRO SWITCH brand in 1937, establishing a standard for quality and reliability. During World War II, these micro switches were deployed widely in military applications such as bombsights and navigation systems, proving their ruggedness and precision. By the 1950s, micro switches had become integral in household appliances, including washing machines and dryers, improving safety and user convenience through dependable limit and control functions.
As semiconductor technology advanced, micro switches evolved from purely mechanical devices to components integrating electronic circuits. This transition dramatically enhanced their capabilities:
During the 1960s, high-precision micro switches developed by companies like Honeywell became essential in aerospace and industrial automation, serving applications where reliability and repeatability were critical. Engineers improved the contact mechanisms by refining materials such as silver alloys and advanced plastics, providing longer switch life and stable electrical performance.
In the 1980s, manufacturers like Panasonic designed ultra-small micro switches tailored to the miniaturization trends in consumer electronics such as mobile phones and computer peripherals. The shrinking form factor still retained the fundamental snap-action characteristic, providing tactile feedback despite the reduced size and actuation force.
This era also saw diversification in switch types with the emergence of sliding switches, tactile (light-touch) switches, and multi-position rotary switches. Each design expanded the functional options for device manufacturers seeking specific modes of user interaction or control. Industry standards began to emerge, fostering global interoperability in applications ranging from office equipment to automotive interiors.
Continuous improvements in materials and design have catalyzed advances in micro switch performance, safety, and durability, including:
- The use of noble metals such as silver and gold alloys for contact surfaces, which reduce contact resistance and prevent corrosion.
- Snap-action mechanisms engineered for specific actuation forces, ensuring reliable operation over millions of cycles.
- Enhanced electrical insulation materials to allow switches to handle higher voltages and currents safely.
- Introduction of miniature sealed switches to protect internal contacts from dust, moisture, and contaminants—important for harsh industrial environments.
Industry standards have been critical to ensuring product quality and regulatory compliance. International standards such as IEC 61058 regulate switch electrical performance and mechanical durability; UL 61058 governs safety certification in North America; and China's GB/T 15092 outlines national standards for switch characteristics and testing methods. Compliance with these enables manufacturers to serve global markets efficiently.
The proliferation of smart devices and the Internet of Things (IoT) has driven micro switches beyond traditional boundaries, embedding intelligence and connectivity features:
Sensor integration allows micro switches to provide more than binary on/off states. For example, embedded pressure or temperature sensors can enable condition monitoring, adaptive control, and safety interlocks. This capability is especially valuable in industrial automation, robotics, and automotive systems, where real-time status reporting can prevent failures.
Wireless connectivity features in advanced micro switch designs support communication over IoT protocols such as Bluetooth, Zigbee, or Wi-Fi. This enables smart home applications where switches can be controlled remotely or programmed for automation routines, enhancing user convenience and energy efficiency.
Ruggedization advancements, including waterproof and corrosion-resistant housings, expanded micro switch applications to outdoor and harsh environment settings like renewable energy facilities and transportation infrastructure. These designs comply with IP65 and higher ingress protection ratings, ensuring reliable operation under exposure to dust, moisture, and temperature fluctuations.
In automotive sectors, manufacturers have developed micro switches with integrated sensor technologies capable of providing real-time data about system status, vibration, and environmental conditions. This supports advanced driver-assistance systems (ADAS) and predictive maintenance, improving safety and reducing downtime.
As a Chinese factory specializing in multi-position switches, our product range often supplied for OEM clients includes:
- Micro Switch Series: Compact switches with snap-action mechanisms designed for limit control and presence detection in industrial machines, home appliances, and security systems.
- Slide Switch Series: Multi-position sliding switches commonly used for signal selection in consumer electronics, audio devices, and instrumentation.
- Tactile (Light Touch) Switches: Low force, short travel switches providing responsive user inputs for portable electronics, calculators, and remote controls.
- Pushbutton Switch Series: Durable manual actuation switches ensuring reliable, repeatable operation, applicable in telecommunications, automotive dashboards, and control panels.
Each product line can be customized with different actuation forces, terminal types, and protective features (such as dust caps or sealing) to meet the technical requirements of international brand owners, distributors, and manufacturers. This OEM capability enables clients to integrate high-quality switches into their own products seamlessly.
While micro switches are mature technology, they face continual challenges in design and manufacturing:
Contact degradation remains a critical issue, especially under high current or inductive load conditions. Silver alloy contacts can tarnish or weld under arcing, reducing switch life. Advanced contact materials, such as silver-nickel or gold-plated interfaces, and refined contact geometry help mitigate these failures.
Environmental factors such as humidity, dust, and electromagnetic interference (EMI) impact switch reliability. Vacuum hermetic sealing or silicone gel encapsulation protects critical components. EMI shielding and suppression circuits are employed in electrically noisy environments to maintain signal integrity.
The constant trend toward miniaturization pressures designers to balance smaller size with durability and tactile feedback. Reduction in mechanical travel and actuation force can compromise switch life or user experience if not carefully engineered.
Manufacturing consistency remains vital; automated assembly and testing equipment ensure each switch meets specifications for force, travel, and electrical performance, minimizing returns and failures downstream.
The future of micro switches is promising, pushed by trends in automation, smart infrastructure, and consumer convenience:
Micro-Electro-Mechanical Systems (MEMS) technology is driving the development of ultra-small switches under 3 mm³ in volume. These MEMS switches integrate mechanical switching with semiconductor control, combining the advantages of both worlds for highly compact, low-power applications.
Self-lubricating materials and coatings promise extended operational life with minimal maintenance, important for inaccessible or high-cycle environments.
Artificial Intelligence (AI) integrated condition monitoring could enable micro switches to analyze operational data on switching cycles, loads, and environmental conditions—predicting failures before they occur and alerting maintenance systems.
Greater environmental adaptability will be realized through advanced composite materials and design approaches that enable reliable operation across extreme temperature ranges, humidity levels, and vibration spectra.
These innovations ensure micro switches remain essential components in the toolkit of engineers designing the next generation of smart, connected devices.
The journey of micro switches from simple mechanical devices to smart, sensor-integrated components reflects the broader evolution of industrial automation and intelligent electronics. These switches have become indispensable across sectors, ensuring precise control, safety, and automation. Continuous innovation in materials, design, and integration technologies promises an exciting future where micro switches will play an even greater role in smart systems globally.
A micro switch is a small, snap-action switch that actuates quickly with minimal force, changing electrical contact states rapidly. It uses a mechanical lever and spring mechanism to achieve this fast response.
Peter McGall and W.B. Hannan invented the micro switch in 1932, patenting the snap-action design. Honeywell later commercialized it as MICRO SWITCH in 1937.
They are used in industrial automation, household appliances, automotive systems, consumer electronics, and increasingly in smart devices with sensor integration.
From purely mechanical switches in the early 20th century to electronic-integrated smart switches with IoT connectivity and sensor embedding today.
Challenges include high power contact wear, environmental impacts like moisture and EMI, and achieving durability while miniaturizing switches.
