Slide switches are essential components in various electronic devices, allowing users to control the flow of electricity in circuits. Understanding the contacts of a slide switch is crucial for effective application and wiring. This article delves into the six contacts typically found in a slide switch, their functions, types of slide switches, and practical applications.

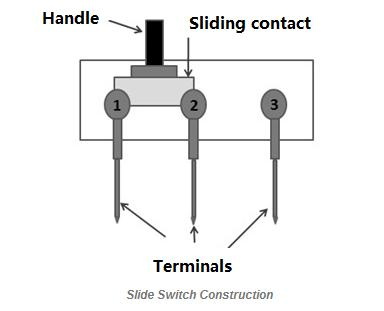

A slide switch is a mechanical device that operates by sliding a lever or actuator from one position to another. This movement either connects or disconnects electrical circuits, providing a simple yet effective way to control devices. The primary components of a slide switch include:
- Actuator: The part that the user moves to operate the switch.
- Contacts: Metal components that touch each other to complete or break a circuit.
- Housing: The outer casing that protects the internal components.
- Terminals: Connection points for wiring.
Slide switches come in various configurations, each serving different functions:
- Single Pole Single Throw (SPST): The simplest type, functioning as an on/off switch.
- Single Pole Double Throw (SPDT): Allows switching between two circuits.
- Double Pole Single Throw (DPST): Controls two circuits simultaneously.
- Double Pole Double Throw (DPDT): Offers more complex switching options by controlling two circuits with two outputs.
In many slide switches, particularly those with six contacts, the configuration typically includes:
1. Common Terminal: This is the terminal that connects to either of the two other terminals based on the switch's position.
2. Left Terminal: Connects to the common terminal when the switch is slid to one side.
3. Right Terminal: Connects to the common terminal when the switch is slid to the opposite side.
4. Additional Common Terminals: In some configurations, there may be additional common terminals for more complex operations.
5. Fixed Contacts: These are stationary contacts that remain in place while the sliding contact moves between them.
6. Sliding Contact: This moves with the actuator and connects different terminals depending on its position.
The operation of a slide switch involves sliding the actuator along a track, which moves the sliding contact between fixed contacts. Depending on its position, it either completes or breaks an electrical circuit.
For example:
- In an SPST configuration, moving the actuator connects or disconnects power from a device.
- In an SPDT configuration, moving it can route power from one source to another.
Wiring a slide switch correctly is essential for its function. Here's how you can wire different types:
1. Connect one terminal to the power source.
2. Connect the second terminal to the device you want to control.
1. Connect the common terminal to your power source.
2. Connect each of the other terminals to different devices or circuits.
1. Connect one pair of terminals to one circuit and another pair to a second circuit.

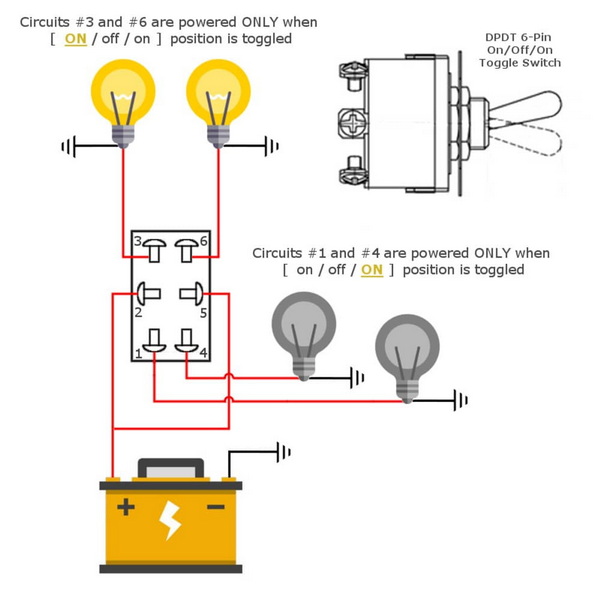

1. Connect each pair of terminals to two different circuits you wish to control simultaneously.
Slide switches are widely used across various industries due to their reliability and ease of use:
- Consumer Electronics: Used in devices like remote controls and toys.
- Industrial Equipment: Controls machinery and equipment operations.
- Automotive Applications: Controls functions within vehicles such as lighting systems.
Slide switches offer several advantages that make them popular in both consumer and industrial applications:
- Simple Operation: They allow for easy on/off control with minimal effort.
- Compact Size: Their small dimensions make them suitable for use in tight spaces within electronic devices.
- High Reliability: With fewer moving parts compared to other types of switches, they tend to have longer lifespans and lower failure rates.
- Cost-Effectiveness: Generally less expensive than more complex switching mechanisms, making them ideal for budget-sensitive projects.
Despite their many benefits, slide switches also have certain limitations:
- Limited Complexity: Typically designed for binary operations (on/off), they may not be suitable for applications requiring multiple states or analog control.
- Physical Wear: As mechanical devices, they are subject to wear over time which can lead to failure if not properly maintained.
Maintaining slide switches involves regular checks and cleaning of contacts to ensure optimal performance:
- Remove dust and grime from contacts regularly.
- Inspect mechanical parts for signs of wear or damage.
For most consumer applications, however, slide switches are generally maintenance-free throughout their lifespan in devices.
Understanding how slide switches work and their contact configurations is vital for anyone working with electronics. The six contacts in a typical slide switch facilitate various functions, enabling users to control multiple circuits efficiently. Whether you're designing a new electronic device or troubleshooting existing equipment, knowing how to wire and utilize these switches can greatly enhance your project's functionality.
A slide switch is used for controlling electrical circuits by connecting or disconnecting them through a sliding action.
Wiring depends on the type of slide switch; generally, connect one terminal to power and another to your device or circuit.
SPST stands for Single Pole Single Throw (on/off), while SPDT stands for Single Pole Double Throw (allows switching between two circuits).
While some slide switches can handle moderate power levels, it's essential to check specifications before using them in high-power applications.
Consider factors like size, number of poles and throws, current rating, and intended application when selecting a slide switch.
