Shift lever micro switches are essential components in modern vehicles and machinery, playing a critical role in the operation and safety of these systems. These small yet powerful switches are activated by the movement of the shift lever, detecting its position and triggering various functions within the vehicle or equipment. This article will explore the functions, importance, and applications of shift lever micro switches, as well as how to select the right one for your needs.

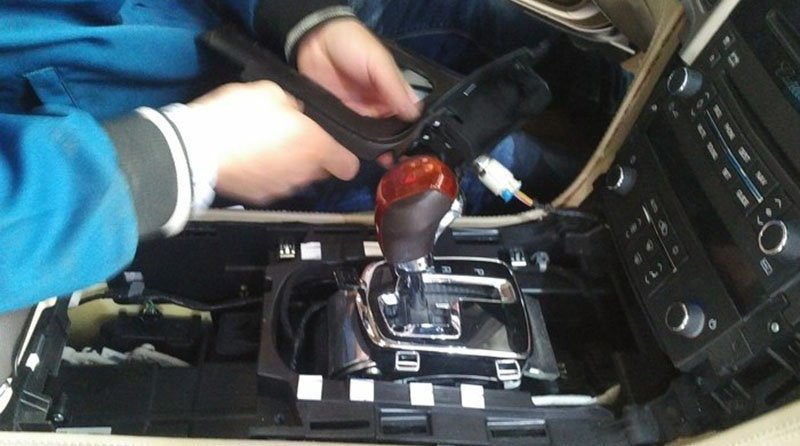

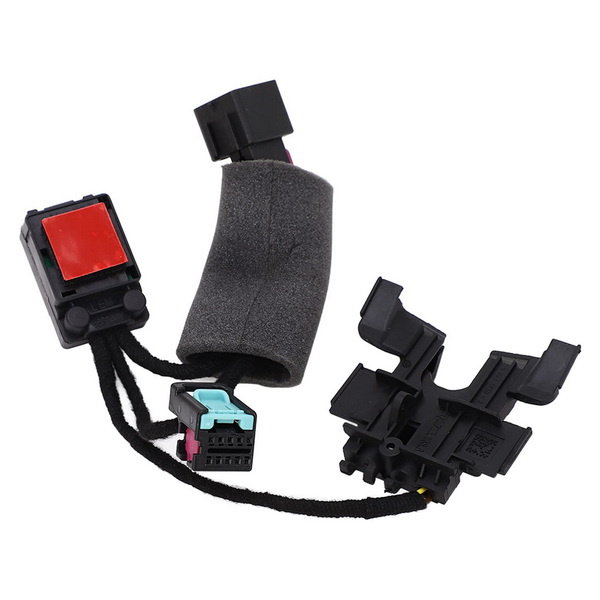

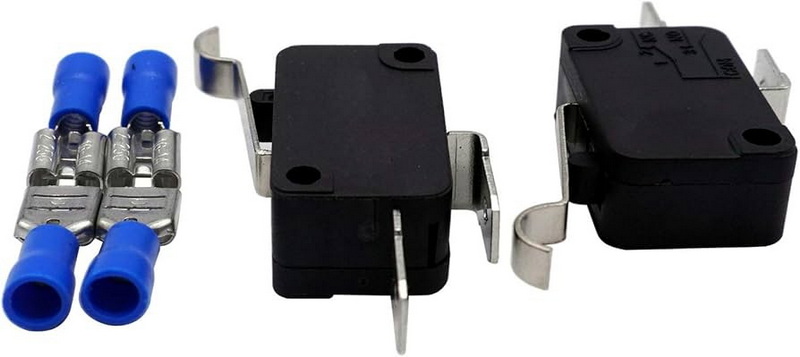

A shift lever micro switch is a type of electrical switch designed to detect the position of a shift lever in vehicles and machinery. Typically located near the shift lever, these switches operate through a snap-action mechanism, allowing them to quickly complete or break an electrical circuit when activated. This functionality is crucial for ensuring that various systems within the vehicle respond accurately to the driver's commands.
When a driver moves the shift lever from one position to another, such as from "Park" to "Drive," the micro switch is activated. This activation sends a signal to the vehicle's transmission control module (TCM), which then engages or disengages gears accordingly. The process can be summarized as follows:
- Activation: The driver moves the shift lever.
- Signal Transmission: The micro switch detects this movement and sends an electrical signal to the TCM.
- Gear Engagement: The TCM processes this signal and engages the appropriate gear.
This process happens almost instantaneously, allowing for seamless transitions between different driving modes.
Shift lever micro switches serve several important functions in vehicles and machinery:
- Transmission Shifting: The primary function is to facilitate smooth transmission shifting by sending signals to the TCM.
- Reverse Light Activation: When the shift lever is placed in reverse, the micro switch activates the reverse lights, alerting others that the vehicle is backing up.
- Safety Mechanisms: These switches contribute to safety features by preventing gear shifts unless certain conditions are met (e.g., brake pedal depressed).
- Park Lock Mechanism: Many vehicles employ a park lock mechanism that prevents shifting out of "Park" unless the brake pedal is pressed. The micro switch plays a critical role in this safety feature.
Shift lever micro switches are vital for several reasons:
- Precision: They provide accurate detection of gear positions, helping prevent accidental shifts that could lead to accidents.
- Reliability: High-quality micro switches are designed for durability and can withstand harsh operating conditions, ensuring long-term functionality.
- Safety: By ensuring that systems only operate under safe conditions, these switches help protect both drivers and passengers.
- User Experience: Smooth gear transitions enhance overall driving comfort and responsiveness, contributing to a more enjoyable driving experience.
Shift lever micro switches are used in various applications beyond standard vehicles:
- Heavy Machinery: In cranes and forklifts, these switches activate safety mechanisms that prevent movement when operators are not positioned correctly.
- Motorcycles: Similar functions apply in motorcycles where gear position detection is crucial for safe operation.
- Automated Systems: In industrial automation, these switches help control machinery based on operator input.
- Electric Vehicles (EVs): With the rise of electric vehicles, shift lever micro switches have adapted to work with advanced electronic transmission systems, ensuring efficient power delivery and energy management.
When selecting a shift lever micro switch, several factors should be considered:
1. Compatibility: Ensure that the switch is compatible with your specific vehicle or machinery type.
2. Operating Environment: Consider whether the switch will be exposed to harsh conditions such as extreme temperatures or moisture.
3. Electrical Specifications: Check voltage and current ratings to ensure they match your system requirements.
4. Durability: Look for switches designed for long-lasting performance in challenging environments.
5. Manufacturer Reputation: Choose products from reputable manufacturers known for quality and reliability.
Despite their reliability, shift lever micro switches can experience issues over time. Common problems include:
- Erratic Shifting Behavior: This may indicate a malfunctioning switch that fails to detect gear positions accurately.
- Failure of Reverse Lights: If reverse lights do not activate when shifting into reverse, it may signal a problem with the micro switch.
- Warning Lights on Dashboard: Malfunctions can trigger warning lights related to transmission issues.
In summary, shift lever micro switches play a crucial role in modern vehicles and machinery by facilitating smooth operations and enhancing safety features. Their ability to detect gear positions accurately ensures that drivers can shift gears without fear of malfunction or accident. When selecting a micro switch, it is essential to consider compatibility with your vehicle or equipment, environmental conditions, electrical specifications, reliability, and manufacturer reputation. Understanding these components can significantly improve both performance and safety in automotive applications while enhancing user experience through smooth gear transitions.
A shift lever micro switch detects the position of the shift lever in vehicles or machinery and sends signals to control systems like transmission control modules for smooth operation.
Signs include erratic shifting behavior, failure of reverse lights to activate, or warning lights on your dashboard indicating transmission issues.
Yes, but it requires some mechanical knowledge and tools; it's advisable to consult your vehicle's manual or seek professional help if unsure.
No, they vary by design, specifications, and compatibility with different vehicles or machinery types.
Consider compatibility with your vehicle or equipment, operating environment conditions, electrical specifications (voltage/current ratings), durability, and manufacturer reputation.
