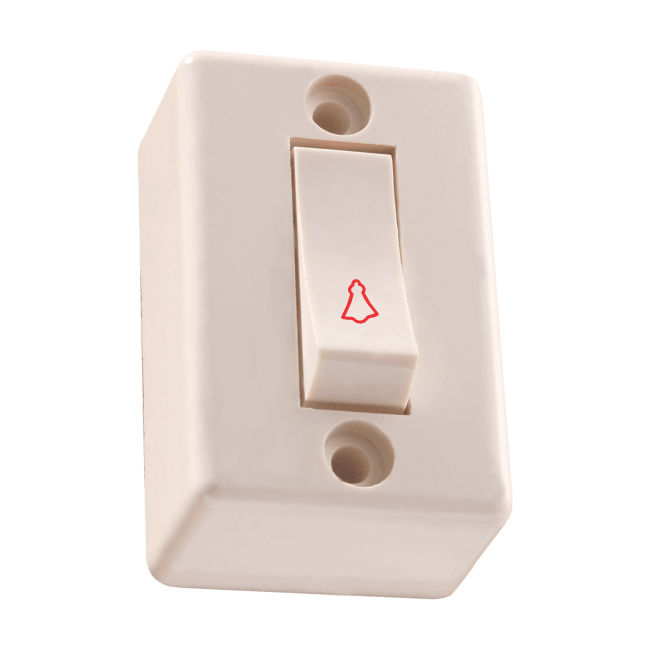

A bell push switch is an essential component in many households and commercial buildings, primarily used to activate a doorbell or chime. This simple yet effective device allows visitors to alert occupants of their presence, enhancing communication and security at entry points. The design and functionality of bell push switches can vary, but they generally consist of a button that, when pressed, completes an electrical circuit to sound a bell or chime.
Bell push switches come in various types, each designed for specific applications. Here are some common types:
- Momentary Push Button Switches: These switches only remain active while the button is pressed. Once released, the circuit opens again. This type is commonly used in doorbells.
- Latching Push Button Switches: Unlike momentary switches, latching switches maintain their state after being pressed. This means they can turn a device on or off with a single press.
- Illuminated Push Button Switches: These switches feature built-in LED lights that indicate their status (on or off) and provide visibility in low-light conditions.
- Wireless Bell Push Switches: These operate without physical wiring, using radio signals to communicate with a chime or bell unit.
The operation of a bell push switch is straightforward. When the button is pressed, it completes an electrical circuit, allowing current to flow through the wiring to the bell or chime. This action activates the bell mechanism, producing sound.
For momentary switches, this action only lasts as long as the button is held down. In contrast, latching switches will remain in their activated state until pressed again.
Installing a bell push switch typically involves several steps:
1. Choose the Location:
Select an appropriate location near your door for easy access.
2. Wiring:
Connect the switch to the power source and the bell unit according to the manufacturer's instructions. For wired models, ensure you follow local electrical codes.
3. Mounting:
Securely mount the switch on the wall using screws or adhesive as required.
4. Testing:
After installation, test the switch to ensure it activates the bell correctly.
1. Remove Old Button:
If replacing an existing button, start by removing it from its mounting location.
2. Drill a Hole:
If necessary, drill a hole for the new button's mounting plate.
3. Connect Wires:
Attach the wires from your existing doorbell system to the new button.
4. Secure Mounting Plate:
Use screws to secure the mounting plate over the hole.
5. Test Functionality:
Once installed, test the button by pressing it to ensure it activates the doorbell chime.
Bell push switches are versatile and can be used in various settings:
- Residential Homes: The most common use is at front doors for traditional doorbells.
- Commercial Buildings: Used for entry alerts in offices and retail spaces.
- Elevators: They serve as call buttons for requesting elevator service.
- Emergency Systems: In some cases, they are used in alarm systems to alert authorities during emergencies.
Bell push switches come in numerous designs and finishes to match different aesthetics:
- Traditional Designs: Often made from brass or chrome with ornate detailing.
- Modern Designs: Sleek and minimalist styles made from materials like plastic or stainless steel.
- Customizable Options: Many manufacturers offer customizable plates and finishes to suit personal preferences.
Using bell push switches provides several advantages:
- Convenience: Easily alert others without needing to knock on doors.
- Variety of Styles: Available in numerous designs to fit any decor.
- Energy Efficiency: Many modern models are designed with energy-saving features.
- Durability: High-quality materials ensure longevity and resistance to wear and tear.
While generally reliable, users may encounter some common issues:
- Failure to Activate: This can occur due to poor wiring connections or faulty components.
- Stuck Button: Dirt or debris may cause buttons to stick, preventing proper operation.
- Electrical Issues: Problems with power supply can affect functionality; checking connections may resolve these issues.
If your bell push switch fails to work properly, follow these troubleshooting steps:
1. Check Connections:
Ensure all wiring connections are secure and not damaged.
2. Test with Multimeter:
Use a multimeter to check for continuity in the circuit when the button is pressed.
3. Inspect for Damage:
Look for any visible signs of wear or damage on both the switch and connected components.
4. Replace if Necessary:
If all else fails, consider replacing the switch with a new one.
In recent years, smart doorbells have gained popularity due to their advanced features compared to traditional bell push switches. Here's how they compare:
| Feature | Traditional Bell Push Switch | Smart Doorbell |
|---|---|---|
| Installation | Wired/Wireless | Wireless (Wi-Fi connection) |
| Alerts | Sound only | Sound + Smartphone notifications |
| Video Capability | No | Yes |
| Night Vision | No | Yes |
| Two-Way Communication | No | Yes |
Smart doorbells offer increased security and convenience but may require more initial investment compared to traditional options.
In conclusion, bell push switches play a crucial role in modern communication within buildings by providing a simple yet effective way for visitors to announce their presence. With various types available—ranging from momentary to illuminated options—these devices cater to diverse needs across residential and commercial applications. Their design flexibility allows homeowners and businesses alike to choose styles that complement their environments while ensuring functionality and convenience. Understanding how these devices work and their potential issues can help users maintain their effectiveness over time.
Momentary switches only activate while pressed, while latching switches remain activated until pressed again.
Generally, wireless bell push switches require compatible receivers; check compatibility before purchasing.
Choose a location near your door, wire it according to instructions, mount it securely, and test its functionality afterward.
Yes, many manufacturers offer weatherproof models suitable for outdoor installations.
Check wiring connections for any loose ends or damage; if issues persist, consider replacing the switch or consulting an electrician.
