Micro switches, also known as snap-action switches, are essential components in various electronic devices and systems. They serve a critical function by opening or closing electrical circuits based on mechanical movement. Understanding when a micro switch is closed is vital for troubleshooting and designing circuits that rely on these switches. This article delves into the mechanics of micro switches, their applications, and the conditions under which they are considered closed.

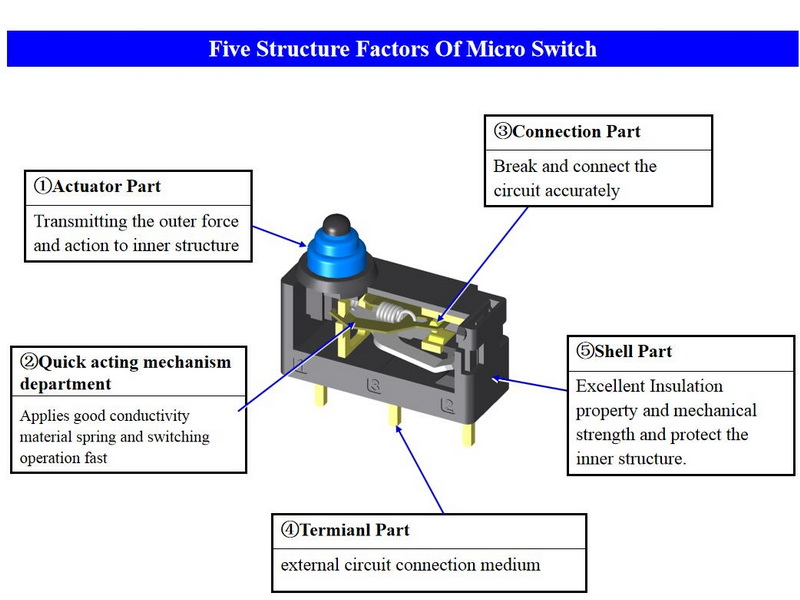

A micro switch is a small, electromechanical device that operates on the principle of mechanical action to control electrical circuits. Typically housed in a plastic casing, these switches contain internal contacts that open or close when the actuator is moved. The key components of a micro switch include:
- Actuator: The part that is physically manipulated to trigger the switch.
- Contacts: These are the conductive parts that either connect (closed) or disconnect (open) the electrical circuit.
- Housing: Protects internal components from environmental factors.
Micro switches operate using a simple mechanism:
1. Actuation: When an external force is applied to the actuator (e.g., pressing a button), it moves slightly.
2. Contact Closure: This movement causes the internal contacts to touch, completing the electrical circuit. At this point, the micro switch is in the "closed" position.
3. Return to Open Position: Once the external force is removed, a spring mechanism returns the actuator to its original position, breaking contact and opening the circuit.
Micro switches can be classified based on their contact configuration:
- Normally Closed (NC): The circuit is closed when no force is applied. When actuated, it opens.
- Normally Open (NO): The circuit remains open until the actuator is pressed, at which point it closes.
Micro switches are widely used in various applications due to their reliability and compact size:
- Home Appliances: Used in devices such as microwaves and refrigerators to detect door positions.
- Industrial Equipment: Employed in machinery for safety interlocks and limit detection.
- Automotive Systems: Utilized for functions like seatbelt reminders and door ajar indicators.
- Consumer Electronics: Found in devices like computer mice and keyboards for tactile feedback.
- Medical Devices: Used in equipment such as infusion pumps and diagnostic machines for precise control.
A micro switch is considered closed when its internal contacts are touching, allowing current to flow through the circuit. This state occurs under specific conditions:

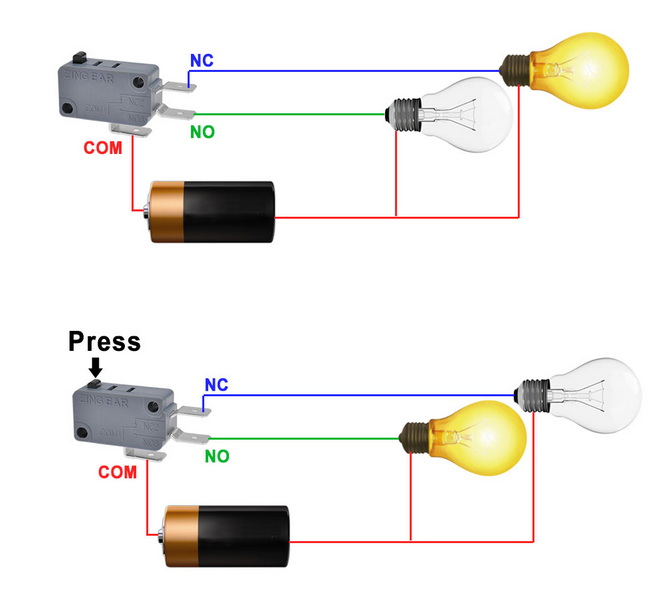

- Actuator Pressed: For NO switches, pressing the actuator connects the common terminal (C) with the normally open terminal (NO). For NC switches, pressing disconnects C from NC.
- Mechanical Engagement: The actuator must travel a certain distance to engage the contacts fully. If not pressed sufficiently, it may not close properly.
To determine if a micro switch is functioning correctly, you can perform simple tests:
1. Continuity Test: Use a multimeter to check for continuity between terminals when pressed.
2. Visual Inspection: Ensure there are no obstructions preventing actuator movement.
Micro switches can experience several issues that may affect their operation:
- Mechanical Failure: Wear and tear can prevent proper actuation. Over time, repeated use can lead to degradation of internal components.
- Electrical Faults: Overloading can damage contacts, leading to failure. This might occur if the switch is used beyond its rated current or voltage specifications.
- Misalignment: If not properly aligned with the actuator mechanism, they may not close reliably. Proper installation is crucial for consistent performance.
- Environmental Factors: Exposure to dust, moisture, or extreme temperatures can affect functionality. Sealed micro switches are designed for harsher environments but may still require periodic maintenance.
Several factors can influence how well a micro switch performs:
The design of the actuator plays a significant role in how effectively a micro switch operates. Different actuators provide varying levels of sensitivity and force requirements to engage the switch.
The material used for contacts affects durability and conductivity. Common materials include gold-plated contacts for low-current applications and silver for higher currents.
Each micro switch has an operating force specification that dictates how much force must be applied to actuate it successfully. Exceeding this force can lead to premature wear or failure.
The distance that an actuator must move to close or open the switch affects response time and reliability. A shorter travel distance typically allows for faster actuation but may be more susceptible to accidental triggering.
Micro switches have rated temperature ranges; operating them outside these limits can lead to malfunction or damage over time.
Proper maintenance can extend the life of micro switches:
- Regular Inspection: Check for signs of wear or damage regularly.
- Cleaning: Dust and debris should be cleaned off periodically to prevent interference with operation.
- Testing: Conduct routine tests using multimeters to ensure they function correctly under expected loads.
Understanding when a micro switch is closed is crucial for anyone working with electronic devices or systems that utilize these components. By recognizing how they operate and testing them effectively, users can ensure reliable performance in various applications. Proper maintenance practices will further enhance their longevity and functionality.
A micro switch failure can lead to malfunctioning devices, such as appliances not operating correctly or safety features failing to engage.
You can identify this by checking the circuit configuration; typically, NO switches will not conduct until pressed, while NC switches will conduct until actuated.
In many cases, if there's mechanical damage or wear, replacing the switch is more practical than attempting repairs.
A multimeter for continuity testing and basic hand tools for access and removal are usually sufficient.
Yes, micro switches come in various sizes and configurations depending on their intended application and space constraints.
