Micro switches are essential components widely used in automation systems for reliable, precise, and cost-effective control tasks. As a Chinese multi-gear switch factory dedicated to providing OEM services for international micro switch, sliding switch, tact switch, and push-button switch brand owners, wholesalers, and manufacturers, mastering the best installation practices for micro switches is critical to ensuring system performance and longevity. This article explores in depth the key strategies, technical considerations, wiring methods, integration techniques, and maintenance tips for installing micro switches in various automation contexts, emphasizing operational efficiency, protection, and product life.

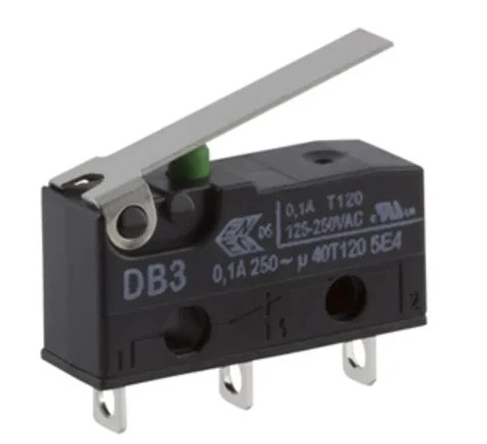

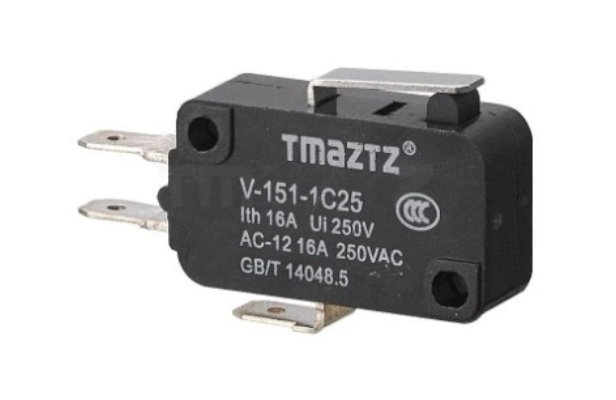

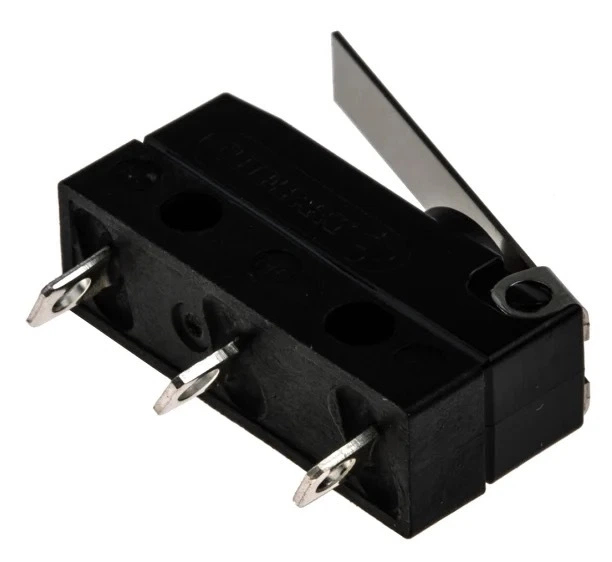

Micro switches, also called snap-action switches, are precision electromechanical devices that change electrical contacts via a very small physical movement, with a fast snap action typically occurring in under a few milliseconds. Their core structure includes:
- Operating Mechanism: Button, roller, or lever externally activated
- Snap-Action Mechanism: Spring-driven, instantaneous motion element ensuring quick transition between contacts
- Contact System: Normally open (NO) and normally closed (NC) contact sets for flexible control schemes
- Housing: Provides electrical insulation, mechanical protection, and environmental resistance
The unique snap-action design offers quick, dependable switching with low operating force, ideal for automation systems requiring precise, repeatable control signals. Their compact size and high reliability make micro switches fit for detecting mechanical movement, position sensing, and implementing safety interlocks.
Choosing the right micro switch depends primarily on the application's electrical, mechanical, and environmental demands, along with standards compliance and lifespan requirements.
Key parameters when selecting micro switches in automation include:
- Rated Voltage: Typically ranges from 12V up to 480V AC or DC, defining maximum voltage the switch can safely handle
- Rated Current: Between 1A and 25A, specifying continuous current capacity without failure
- Contact Resistance: Generally less than 50 milliohms, important to minimize power dissipation and heating
- Insulation Resistance: Usually greater than 100 megohms at 500V DC, ensuring electrical isolation between contacts to avoid short circuits
- Dielectric Strength: Can be from 1kV to 4kV AC for 1 minute test duration, indicating switch resistance to electrical breakdown
- Mechanical Life: Often rated for millions of cycles under standard conditions, ensuring durability in repetitive operations
Considering these ratings based on load and environment prevents premature failure and ensures safety.
Industrial and export markets require specific certifications confirming product safety and quality levels:
- UL 61058: Recognized safety certification in North America
- EN 61058: European directive compliance
- CCC: Mandatory for products sold within China
- ATEX: Required for switches used in explosive atmospheres
- ISO 13849: Standard for functional safety in machine control systems
Using certified switches improves acceptance in international markets and keeps systems compliant with regulations.
Correct installation is pivotal to unlocking the full potential of micro switches in automation systems. Improper installation can lead to early switch failure, inaccurate triggering, or system errors.
Micro switches can be mounted in multiple ways, depending on the design and accessibility needs:
- Panel Mounting: A common method where switches are fixed to control panels using M3 or M4 screws. It's important to maintain enough clearance around the actuator to avoid mechanical binding and permit full lever movement. Ensure mounting surfaces are flat and free of debris.
- PCB (Printed Circuit Board) Mounting: For compact electronic devices, micro switches can be mounted directly on PCBs using through-hole tech or surface mount. Special attention should be paid to soldering quality and mechanical support for the switch to avoid stress from external forces.
- DIN Rail Mounting: In industrial cabinets, switches can be mounted on DIN rails using adaptor brackets, enabling modular and easily serviceable control assemblies.
Whichever method is chosen, allow an over-travel margin of about 20% beyond the operation travel to prevent mechanical stress on the internal snap-action mechanism.
Wiring micro switches properly reduces the risk of signal loss, interference, and functional error:
- Identify exactly each terminal — common (COM), normally open (NO), and normally closed (NC) — according to the datasheet to avoid incorrect connections.
- Prefer using high-quality stranded copper wires with appropriate gauge to carry load current without overheating.
- Use crimped or soldered contacts instead of loose wire wraps to ensure secure connections.
- Employ color coding and labeling for easy identification and troubleshooting.
- In safety circuits, use series wiring for sequential conditions or parallel wiring for redundant fault-tolerant designs.
- When integrating with Programmable Logic Controllers (PLC) or microcontrollers, it's advisable to isolate inputs with relays or optocouplers to protect control electronics.
Micro switches often face harsh industrial environments, so guarding them is crucial:
- Protect switches with dust caps, protective covers, or sealed enclosures rated with IP codes (e.g., IP65 rated housings protect against dust ingress and water jets).
- Employ switches with built-in waterproof features such as sealing rings or rubber boots for buttons and levers.
- For extremely corrosive or hazardous conditions, choose switches made with corrosion-resistant materials or explosion-proof designs certified to ATEX standards.
- Avoid mounting switches directly where they may be exposed to excessive vibration or mechanical shocks without shock-absorbing features.
The effectiveness of a micro switch also depends on how the actuator is engaged:
- Ensure the actuator type (button, roller lever, leaf lever) matches the mechanical interface that activates the switch in the production machine or robot.
- Align the actuator movement perpendicular to the switch lever to ensure full and repeatable contact operation. Avoid side forces that can cause early wear or unreliable triggering.
- Allow clearance so the lever can return freely without obstruction.
Automation system integrators increasingly rely on micro switches as part of complex sensing and control solutions. Modern applications require seamless integration into control panels, production lines, and robotic systems.
- Micro switches can act as limit switches to stop machine movement at critical points, improving both product quality and operator safety.
- They serve as feedback devices to alarm systems, confirming door closure, conveyor positioning, or presence detection.
- Assembly of micro switches often uses automatic placement machines featuring vision-based alignment, robotic handling, and precision pressing to assemble tiny internal contacts, springs, and actuators swiftly and with consistent quality.
- Testing stations simulate expected switch action and electrical characteristics, ensuring 100% functional reliability before shipment.
By leveraging automation technology in production, switch manufacturers can ensure stable quality and meet large-volume OEM orders efficiently.
Routine maintenance contributes significantly to extending micro switch service life and preventing unexpected downtime:
- Perform periodic electrical measurements such as contact resistance and insulation resistance tests to check integrity.
- Physically inspect actuators and mounting areas for dust, corrosion, or signs of mechanical wear. Cleaning with dry compressed air or approved solvents removes contaminants that hinder operation.
- Lubricate moving parts only if recommended by the manufacturer to avoid sticky residue buildup.
- Replace micro switches once electrical or mechanical failures, such as contact welding or spring fatigue, are detected rather than risking partial function.
- Keep spare switches onsite for rapid replacement to minimize production interruptions.
Proper installation of micro switches in automation systems requires a thorough approach that balances correct switch selection, precise mounting, rigorous wiring practices, and comprehensive environmental protection. Consideration of mechanical orientation and actuator type along with integration into automation control strategies guarantees reliable performance. Adopting certified components and maintenance routines enhances both operational safety and switch longevity. Leveraging automated assembly and inspection technologies further assures product quality. By following these best practices, manufacturers and system integrators can optimize reliability, efficiency, and overall productivity in automated equipment using micro switches.
Micro switches provide fast, reliable switching with minimal physical movement, ideal for precise control and safety interlocking in automation systems where accurate, repeatable signaling is necessary.
For redundancy and enhanced safety, parallel wiring configurations are employed so that multiple micro switches can independently trigger a single load or signal chain, minimizing risk of total system failure.
Durability is improved by using dust-proof sleeves, sealing rings, protective housings rated for ingress protection (IP), and choosing switches designed for resistance against harsh environmental factors such as moisture, dust, and vibration.
Certifications such as UL 61058, EN 61058, CCC, ATEX for hazardous environments, and ISO 13849 for safety-related controls validate micro switches for industrial and international applications.
Automated assembly lines use vision systems and robotic handlers to precisely place components, apply springs and actuators uniformly, and perform consistent quality testing, thereby reducing defects and increasing production efficiency.
