Micro switches are small but crucial components in various electrical devices and systems. Their role in triggering actions based on the mechanical movement of a lever makes them indispensable in modern technology. In this article, we will explore how to effectively test a micro switch, including the necessary tools, the step-by-step testing process, common issues that might arise, and their applications across different industries.
A micro switch (or miniature snap-action switch) is a general-purpose switch that is operated by a very small physical force. When a sufficient force is applied, the switch changes its state, allowing or interrupting the current flow.
Micro switches are commonly found in:
- Appliances like microwaves and washing machines
- Vending machines
- Elevator buttons
- Gaming devices

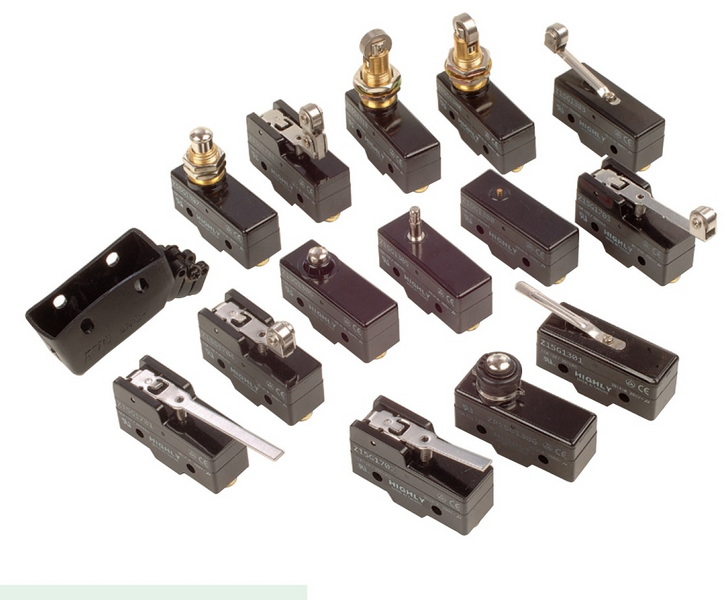

Micro switches come in various types designed for specific applications. Some common types include:
- Standard Micro Switch: Compact and versatile, suitable for various applications.
- Subminiature Micro Switch: Smaller in size, ideal for applications with limited space.
- Waterproof Micro Switch: Designed to resist moisture, used in wet environments.
- High-Temperature Micro Switch: Built to withstand extreme temperatures.
- Snap-Action Micro Switch: Features quick actuation for rapid response.
Understanding these types helps in selecting the right switch for your needs.
To test a micro switch, you will need:
1. Multimeter: Essential for measuring continuity and resistance.
2. Screwdriver: For removing the micro switch from devices if necessary.
3. Cleaning supplies: Such as compressed air or contact cleaner to ensure there is no debris affecting performance.
Before starting any testing, ensure that you have disconnected the power supply to the device containing the micro switch. Safety is paramount, as working with electrical components can be dangerous.
Identify the position of the micro switch in your device. If it's not easily accessible, carefully remove any covers or panels.
Before using a multimeter, perform a physical inspection. Look for:
- Cracks or chips on the switch casing
- Loose connections
- Any signs of wear or burn marks
1. Set your multimeter to the continuity setting.
2. Connect the multimeter probes to the terminals of the micro switch.
3. Press the actuator of the switch. If the switch is functioning properly, you should hear a beep or see a reading on the meter indicating continuity.
1. With the switch still activated, switch the multimeter to measure resistance (Ohms).
2. Check the readings; a functional micro switch should show low resistance when activated.
3. Release the actuator and ensure that resistance returns to infinity or a very high value.
Reinstall the micro switch if it was removed and connect it back to the power supply. Test the device to ensure it operates correctly. If it does not function, consider replacing the switch.
- No Continuity Detected: This might indicate a broken switch that needs replacement.
- Erratic Readings: If you get varying results, the switch might be dirty; clean it using contact cleaner.
- Physical Damage: If there is visible damage, replacing the switch is recommended.
Micro switches are integral components across various industries due to their reliability and versatility.
Micro switches are commonly used in household appliances like:
- Microwave Ovens: They ensure that microwaves do not operate when the door is open by being part of the door latch assembly.
- Washing Machines: They monitor door status and prevent operation if doors are ajar.
In automotive applications, micro switches play critical roles:
- Seat Belt Buckles: They detect whether seat belts are fastened and trigger warning lights if not.
- Braking Systems: They monitor brake pedal positions to optimize performance and safety during braking.
Micro switches enhance precision and safety in industrial machinery:
- Conveyor Systems: They help locate objects on conveyor belts and trigger alarms if items are improperly loaded.
- Robotics: Used as limit switches to control robotic movements accurately.
In medical applications, reliability is paramount:
- Blood Pressure Monitors: They check cuff positions to provide accurate readings.
- Diagnostic Machines: Used in MRI scanners to identify when scanning mechanisms reach desired positions.
Testing a micro switch is a straightforward process that can be done with minimal tools. By following these steps, you can diagnose potential issues and ensure that your devices operate smoothly. Remember, if a micro switch shows signs of damage or fails to perform correctly after troubleshooting, it is best to replace it to maintain functionality.
Micro switches are among the most versatile components with significant applications across all industries. Their accuracy, dependability, and robustness are vital for improving performance, safety, and efficiency in household devices, automotive systems, industrial controls, medical instruments, consumer electronics products, security alarms, detection systems, and even aerospace engineering concepts.
Understanding how to test these components effectively allows users to maintain their devices better and appreciate their critical role in modern technology.
It's advisable to test them during regular maintenance checks or if you notice any performance issues in devices they are used in.
In many cases, if the switch is just dirty, cleaning can help. However, if damaged, it's best to replace it.
A failed micro switch can result in devices not functioning correctly, leading to potential safety hazards or malfunctions.
Yes, there are various types of micro switches categorized based on their design and functionality, including single pole double throw (SPDT) and double pole single throw (DPST).
While you can use a regular switch in some applications, micro switches are designed for specific tasks where small forces are involved, making them indispensable in many contexts.
