A Single Pole Double Throw (SPDT) slide switch is a versatile electrical component commonly used in various electronic devices. It allows a single input to connect to one of two outputs, making it ideal for applications that require toggling between two different circuits. This article will delve into the workings of SPDT slide switches, their applications, advantages, and wiring configurations.
An SPDT slide switch consists of three terminals: one common terminal and two output terminals. The common terminal is connected to the input signal, while the output terminals connect to different circuits. By sliding the actuator, users can select which circuit to complete.
- Three Terminals: One common and two selectable outputs.
- Two Positions: Allows for switching between two circuits.
- Simple Mechanism: Operated by sliding a lever or actuator.
When the switch is in one position, it connects the common terminal to one of the output terminals, completing that circuit. When slid to the other position, it connects the common terminal to the other output terminal, thus completing a different circuit.
SPDT slide switches are widely used in various applications due to their simplicity and effectiveness. Some common uses include:
- Mode Selection: In devices where users need to select between different modes or settings.
- Signal Routing: Directing signals from one source to another in audio equipment or communication devices.
- Power Control: Turning devices on or off or switching between power sources.
1. Lighting Systems: SPDT switches are often employed in lighting controls that allow users to toggle between different light sources or dimmer settings.
2. HVAC Systems: They can switch between heating and cooling modes or control multiple air handler units.
3. Electronics Testing:In laboratories and workshops, SPDT switches are used in test equipment to select between different test circuits.
4. Consumer Electronics: Many household devices utilize SPDT switches for mode selection or power management.
5. Industrial Applications: In manufacturing equipment, these switches can reverse motor direction or change power sources for redundancy.

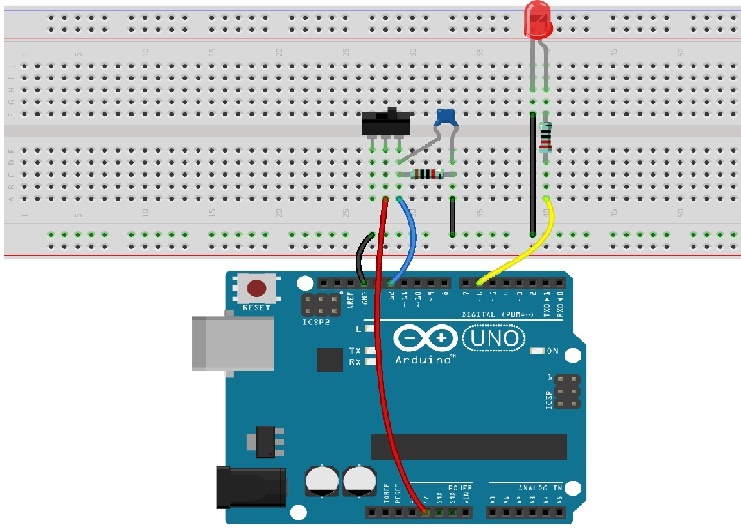

Wiring an SPDT slide switch may seem daunting at first, but it is straightforward once you understand the connections involved.
1. Identify Terminals: The center pin is the common terminal; the outer pins are the output terminals.
2. Connect Power Source: Attach your power source to the common terminal.
3. Connect Devices: Connect each device or circuit you wish to control to the outer terminals.
4. Test Connections: Use a multimeter to ensure proper connections and functionality.
SPDT slide switches offer several advantages:
- Compact Design: They occupy minimal space on printed circuit boards (PCBs).
- Easy Operation: The sliding mechanism is intuitive and user-friendly.
- Reliable Performance: They provide consistent switching with minimal wear over time.
Understanding the various types of slide switches can help in selecting the right one for your application:
- Two positions (on/off).
- Controls one circuit.
- Three positions (one common and two outputs).
- Routes one input to either of two outputs.
- Controls two separate circuits simultaneously.
- Each circuit has an on/off position.
- Controls two circuits with two outputs each.
- Allows for more complex switching operations.
- Designed for small electronic devices where space is at a premium.
- Offer similar functionalities as larger counterparts but are scaled down.
- Mounted directly onto the surface of a circuit board.
- Ideal for modern electronics manufacturing where space efficiency is crucial.
When selecting an SPDT slide switch, several specifications should be taken into account:
- Voltage Rating: Maximum voltage across the device (commonly up to 24 VDC).
- Current Rating: Maximum current through the device (typically up to 500 mA).
- Actuator Height: Raised or flat actuators depending on design needs.
- IP Rating: Indicates resistance against moisture and dust ingress; important for outdoor or industrial applications.
In summary, SPDT slide switches are essential components in many electronic devices, providing a simple yet effective means of controlling circuits. Understanding their operation and wiring can empower users to implement them effectively in various applications. With their compact design and reliable performance, they continue to be a popular choice for engineers and designers alike.
SPST (Single Pole Single Throw) switches control one circuit with an on/off function, while SPDT (Single Pole Double Throw) switches can connect one input to one of two outputs.
Yes, an SPDT switch can control multiple circuits by selecting which circuit receives power at any given time.
You can use a multimeter set to continuity mode to check which pins connect when the switch is in each position.
SPDT switches are limited in that they can only connect one input to one output at a time; they cannot handle multiple outputs simultaneously unless designed specifically for such use.
While some SPDT switches are rated for higher currents and voltages, always check specifications before using them in high-power applications.
