When working with a Raspberry Pi 3, understanding how to manage power effectively is crucial for both performance and longevity of the device. One common method to control power to the Raspberry Pi is through the use of a slide switch. This article will explore the power requirements of the Raspberry Pi 3, how a slide switch can be integrated into your setup, and the implications of using such switches on power management.
The Raspberry Pi 3 Model B has specific power consumption characteristics that must be understood to effectively integrate it into projects. Below are some key points regarding its power usage:
- Idle State: The Raspberry Pi 3 consumes approximately 260 mA (1.4 W) when idle.
- Active State: Under load, such as running intensive tasks or multiple peripherals, the power consumption can rise significantly. For example, during a stress test, it can draw up to 730 mA (3.7 W).
- Shutdown State: Even when shut down, the Raspberry Pi still consumes a small amount of power (around 20-30 mA). This is important to consider when designing circuits that involve cutting off power completely.
To use a slide switch with your Raspberry Pi 3, you will need the following components:
- Slide Switch: A Single Pole Double Throw (SPDT) slide switch is commonly used for this purpose.
- Resistors: Depending on your circuit design, you may need pull-up or pull-down resistors.
- Capacitor: A capacitor can help in maintaining power temporarily during shutdown sequences.
- Wires and Breadboard: For building the circuit.

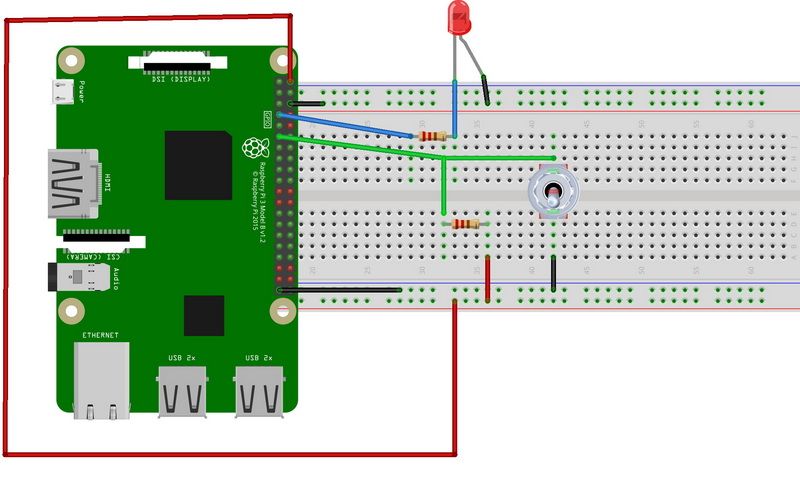

The wiring of a slide switch to a Raspberry Pi can be straightforward. Below is a basic outline of how to wire an SPDT slide switch:
1. Connect the Middle Pin: This pin will typically connect to one of the GPIO pins on the Raspberry Pi.
2. Connect One End Pin: Connect this pin to the +5V supply from the Raspberry Pi.
3. Connect the Other End Pin: This pin should be connected to ground.
4. Add Resistors: Use a pull-down resistor on the GPIO pin to ensure it reads low when not activated.
You can write a simple Python script using the RPi.GPIO library to read the state of the slide switch and control other components based on its position.

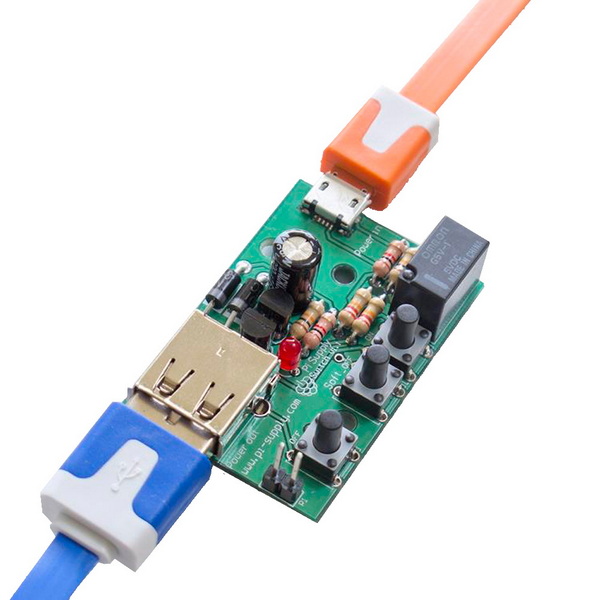

When using a slide switch with your Raspberry Pi, consider implementing additional circuitry that allows for graceful shutdowns. This means:
- Allowing the Raspberry Pi some time to shut down properly before cutting off power.
- Using capacitors to maintain power temporarily during this shutdown period.
A common issue with simply cutting off power via a slide switch is that it can lead to data corruption or improper shutdowns. To mitigate this risk, you can design your circuit in such a way that it allows for a short delay after turning off the switch before completely cutting off power. Here's how you can achieve this:
1. Use an N-FET Low-Side Switch: This allows you to control when power is delivered based on signals from your Raspberry Pi.
2. Add a Capacitor: By adding an electrolytic capacitor in parallel with the load, you can keep powering the Raspberry Pi for several seconds after switching off, allowing it to complete any ongoing processes and safely shut down.
3. Signal Input for Shutdown: You can wire one contact of your slide switch to a GPIO pin configured as an input on your Raspberry Pi. When switched off, it sends a signal prompting the Pi to initiate its shutdown sequence.
To further enhance energy efficiency while using your Raspberry Pi 3, consider implementing these optimization techniques:
Many onboard features like Bluetooth and HDMI consume power even when not actively used. You can disable them through configuration settings.
Review running processes and optimize scripts by removing unnecessary services or switching to lightweight alternatives. This helps reduce CPU load and overall power consumption.
Utilizing software tools that monitor and manage energy consumption can provide insights into usage patterns and help automate low-power states during inactivity.
Using tools like `cron`, you can automate shutdowns at specific times when you know your Raspberry Pi won't be in use, further conserving energy.
Selecting peripherals designed for low energy consumption will also contribute significantly to overall efficiency.
Integrating a slide switch into your Raspberry Pi projects offers an effective way to control power while ensuring safe operation through proper shutdown sequences. Understanding the power consumption characteristics of your device is crucial for ensuring that you do not overload your circuit or risk damaging your Raspberry Pi. By following proper wiring techniques and using appropriate coding practices, along with implementing advanced circuit designs for graceful shutdowns and optimizing software configurations, you can create a reliable setup that allows for safe operation and shutdown of your Raspberry Pi 3 while maximizing energy efficiency.
You should use an SPDT (Single Pole Double Throw) slide switch for controlling power effectively.
The Raspberry Pi 3 consumes approximately 260 mA (1.4 W) when idle and up to 730 mA (3.7 W) under heavy load.
Yes, as long as the current and voltage ratings of the slide switch match those required by your devices.
You can implement additional circuitry that keeps power on for a few seconds after turning off the slide switch, allowing time for proper shutdown.
Cutting power abruptly can lead to data corruption on your SD card and potential damage to your operating system files.
