Bypassing a micro switch can be a practical solution when the switch is malfunctioning or when you need to run a device without the need of a switch. In this article, we will explore how to effectively bypass a micro switch, including techniques, necessary tools, potential risks involved, and detailed instructions for various applications.

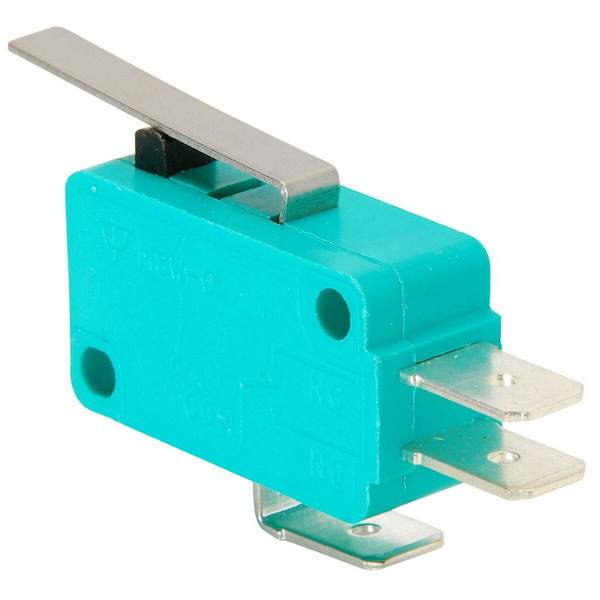

Micro switches are small electromechanical devices that are commonly used in various applications including appliances, automotive, and industrial machinery. These switches are designed to be activated by minimal physical movement and can be crucial components for safety mechanisms.
Micro switches come in different types based on their design and functionality:
- Single Pole Single Throw (SPST): This is the most common type, which has one input and one output.
- Single Pole Double Throw (SPDT): This type can connect to two different outputs.
- Double Pole Double Throw (DPDT): This switch has two inputs and can control two different circuits.
Understanding the type of micro switch you are dealing with is essential for effective bypassing.
There are several reasons one might want to bypass a micro switch:
- Malfunctioning Switch: If the micro switch fails, the device it controls may become inoperable. Common symptoms include intermittent operation or complete failure to activate.
- Testing Purposes: Bypassing the switch can help determine whether the switch is the problem without needing a replacement. This is especially useful in troubleshooting electrical issues.
- Simplifying Operations: In some applications, operators may prefer bypassing the switch for ease of use. For instance, in industrial settings where machines need to run continuously, operators might find it more efficient to bypass certain switches temporarily.
Before starting the bypassing process, gather the necessary tools:
- Wire Strippers: To remove insulation from wires safely.
- Electrical Tape or Heat Shrink Tubing: For securing and insulating wire connections.
- Jumper Wires: To create temporary connections if needed.
- Multimeter: For testing voltage and continuity to ensure proper connections.
- Soldering Iron: Optional but useful for making permanent connections.
- Screwdriver Set: To open up devices and access internal components.
Always ensure that the power supply to the device is turned off before starting any electrical work. This prevents electric shock and protects both you and the device from damage.
Identify where the micro switch is located within the device. Consult the user manual for guidance if necessary. Take photos of the wiring setup before disconnecting anything; this will help during reassembly.
Once located, carefully disconnect the wires from the micro switch. Use your wire strippers if necessary to expose fresh wire ends. Take note of how the wires are connected for future reference; labeling them can also be helpful.
To bypass the switch, connect the two wires together. This can be done by twisting the wires together or using a jumper wire. Ensure that you connect them securely to avoid any loose connections that could lead to further issues.
Use electrical tape or heat shrink tubing to ensure that the connections are insulated and secure to prevent accidental shorts. Proper insulation is critical in maintaining safety standards.
Turn the power back on to the device and test it to ensure it operates correctly without the micro switch. Observe how it functions; if there are any irregularities, check your connections again.
Keep an eye on the device for any issues that may arise from running without the micro switch. If you notice any unusual behavior, it may be time to replace the micro switch instead of continuing with a bypass.
Micro switches are used in various applications across multiple industries:
- Home Appliances: Such as washing machines, refrigerators, and ovens where they act as safety devices or operational controls.
- Automotive: Used in car doors, seat belts, and other safety features.
- Industrial Equipment: In manufacturing machines where they control operations based on position or safety requirements.
- Consumer Electronics: Found in devices like keyboards and remote controls for various functionalities.
Understanding these applications can help you appreciate why maintaining or bypassing these switches may be necessary in specific contexts.
Bypassing a micro switch can have its drawbacks:
- Safety Hazards: The micro switch may have been part of a safety mechanism; bypassing it could expose users to hazards such as electrical fires or mechanical failures.
- Device Damage: Running the device without a switch can lead to unforeseen operations that might damage internal components or lead to malfunctions.
- Warranty Void: If the device is still under warranty, bypassing components may void this warranty. Always check warranty terms before proceeding with modifications.
There are certain instances where replacing a micro switch is more advisable than attempting to bypass it:
- If there are visible signs of wear or damage on the switch itself.
- When troubleshooting indicates that multiple components may be affected by a faulty switch.
- If safety regulations require all safety mechanisms to be functional.
In these cases, investing in a replacement part may save time and prevent further issues down the line.
Bypassing a micro switch can be a helpful technique in scenarios where the switch is malfunctioning or when operational efficiency is necessary. However, always approach with caution and ensure that safety is prioritized. If in doubt, consulting with a professional or replacing the switch may be the best course of action. Understanding when it's appropriate to bypass versus replace will help maintain both functionality and safety in your devices.
Yes, it can lead to device failure if the switch was part of a safety mechanism or if the device was not designed to operate without it. Always consider potential consequences before proceeding with a bypass.
Bypassing safety switches is generally not recommended and may violate safety regulations depending on local laws. It's crucial to consult local regulations before making modifications that could impact safety compliance.
You will need wire strippers, electrical tape, jumper wires, multimeter for testing voltage continuity, soldering iron (optional), and screwdrivers for accessing internal components of devices.
The risks include potential safety hazards such as electric shock or fire hazards; damage to devices due to uncontrolled operations; and voiding warranties which could result in higher replacement costs later on.
Yes, you can reverse the bypass by reconnecting the original wires to the micro switch if it is operational again. Always test functionality after reinstallation.
