Connecting a slide switch to a battery is a fundamental task in electronics that allows you to control the power supply to your devices easily. This article will guide you through the process, covering everything from understanding different types of slide switches to step-by-step instructions on how to make the connections safely and effectively.

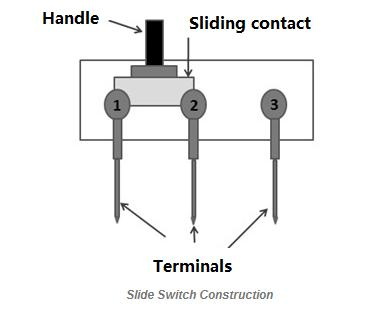

Slide switches are electromechanical devices that can open or close an electrical circuit. They come in various types, including:
- SPST (Single Pole Single Throw): This is the simplest type, with two terminals. It either connects or disconnects the circuit.
- SPDT (Single Pole Double Throw): This type has three terminals and can route a single input to one of two outputs.
- DPST (Double Pole Single Throw): Similar to SPST but controls two circuits simultaneously.
- DPDT (Double Pole Double Throw): Controls two circuits and can switch between two outputs for each.
Understanding these types will help you choose the right switch for your project.
Before starting, gather the following tools and materials:
- Slide switch (SPST or SPDT)
- Battery (LiPo, AA, etc.)
- Wires
- Soldering iron
- Wire stripper
- Multimeter
- Heat shrink tubing (optional)
- Needle-nose pliers
- Screwdriver (if mounting is required)
First, determine whether you are using an SPST or SPDT slide switch. For most battery applications, an SPST switch is sufficient as it simply turns the power on or off.
Using a wire stripper, remove about 1/4 inch of insulation from both ends of two wires. If you are using stranded wire, tin the ends with solder to prevent fraying.

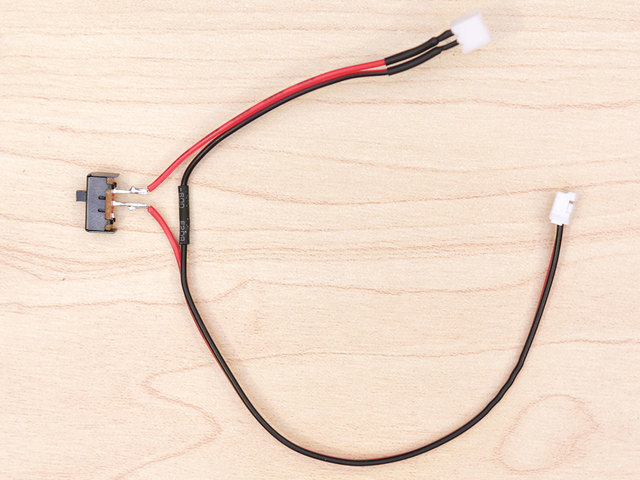

For an SPST switch:
1. Solder one end of the first wire to one terminal of the switch.
2. Solder one end of the second wire to the other terminal.
For an SPDT switch:
1. Solder one wire to the common terminal (usually in the center).
2. Solder another wire to one of the outer terminals. The second outer terminal can be left unconnected if you are not using it.
1. Connect the free end of one wire from the switch to the positive terminal of your battery.
2. Connect the free end of the other wire from the switch to your device's power input or ground as needed.
Use heat shrink tubing or electrical tape to insulate any exposed wires or solder joints to prevent short circuits.
Before powering up your device, use a multimeter to check for continuity and ensure there are no shorts between connections.
When working with batteries, especially lithium-based ones, take precautions:
- Always check polarity before connecting.
- Use a fuse rated for your circuit's current.
- Avoid short circuits by ensuring wires are insulated properly.
While connecting a slide switch may seem straightforward, there are advanced considerations that can enhance functionality and safety:
Different battery types have unique characteristics that affect how you connect them:
- Lithium Polymer (LiPo) batteries require careful handling due to their sensitivity to overcharging and discharging. Ensure your slide switch is rated for the voltage and current your LiPo battery provides.
- Nickel Metal Hydride (NiMH) batteries are more forgiving but still require proper handling and charging practices.

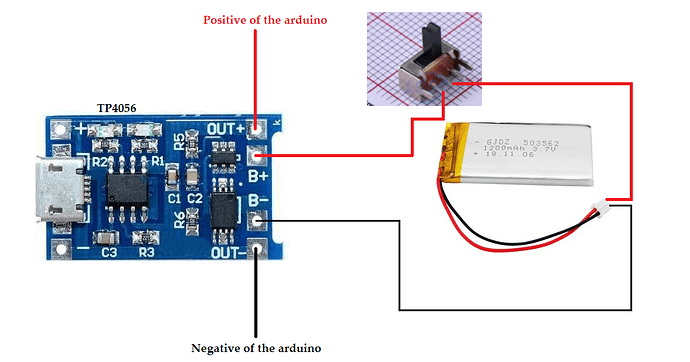

When connecting a slide switch in projects involving rechargeable batteries, consider incorporating a charge management circuit that allows charging while maintaining control over power supply through the slide switch. This can be implemented using dedicated charging ICs that support simultaneous charging and load operation.
In practical applications, you may need to mount your slide switch securely within an enclosure or on a PCB. Here are some methods:
- PCB Mounting: Many slide switches come with mounting legs designed for soldering directly onto printed circuit boards. Ensure adequate spacing for components around your switch.
- Enclosure Mounting: If you're using an enclosure, consider drilling holes that align with your switch's mounting points. Use screws or adhesive mounts as necessary.
If your device does not turn on after connecting everything correctly, consider these troubleshooting steps:
- Check Connections: Ensure all wires are securely connected and there are no loose ends.
- Verify Battery Charge: Make sure your battery is charged and functional.
- Test with Multimeter: Use a multimeter to check if power is reaching your device when the slide switch is in the "on" position.
Slide switches have numerous applications across various electronic projects:
- Toys: Many battery-operated toys use slide switches for easy on/off functionality.
- LED Lighting: Projects involving LED strips often use slide switches for user control.
- DIY Electronics Projects: From Arduino projects to custom-built devices, incorporating a slide switch enhances usability by providing manual control over power supply.
To make your project even more functional, consider adding features such as:
Incorporating an LED indicator light can provide visual feedback about whether your device is powered on or off. To add this feature:
1. Connect an LED in parallel with your load.
2. Use an appropriate resistor in series with the LED to limit current based on its specifications.
This way, when you turn on the slide switch, both your device and LED will activate simultaneously.
If you want flexibility in powering your project from different sources (e.g., batteries or USB), consider using a DPDT switch. This allows you to select between multiple power sources without needing to rewire everything each time you change power sources.
1. Connect each power source's positive lead to one of the outer terminals.
2. Connect the common terminal to your load.
3. This setup allows you to toggle between different power supplies easily.
Connecting a slide switch to a battery is a straightforward process that enhances control over your electronic projects. By following these steps and understanding your components, you can ensure safe and effective operation in your designs. With careful consideration of battery types, mounting options, troubleshooting techniques, and additional features like indicator lights or multiple power sources, you'll be well-equipped to integrate slide switches into various applications effectively.
Answer: SPST switches have two terminals and can either connect or disconnect a circuit. SPDT switches have three terminals and can route one input to one of two outputs.
Answer: You can use a multimeter in continuity mode to test which terminals connect when you slide the switch. The middle pin is usually common for SPDT switches.
Answer: Yes, as long as the voltage rating of the battery matches your device's requirements and you ensure proper connections.
Answer: Yes, but ensure that your connections are secure and insulated properly to prevent short circuits since LiPo batteries can be hazardous if mishandled.
Answer: Check all connections for continuity with a multimeter, ensure that your battery is charged, and verify that you have connected everything according to your wiring diagram.
