Connecting a slide switch to a breadboard is a fundamental skill for anyone interested in electronics. This guide will walk you through the process step-by-step, complete with diagrams and explanations to ensure you understand how to make these connections effectively.
Slide switches are simple mechanical devices used to connect or disconnect electrical circuits. They typically have three pins: one common pin and two other pins that connect depending on the switch's position. The most common type is the Single Pole Double Throw (SPDT) switch, which can connect one common terminal to either of two other terminals.
- SPST (Single Pole Single Throw): Connects or disconnects one circuit.
- SPDT (Single Pole Double Throw): Connects one circuit to one of two other circuits.
- DPST (Double Pole Single Throw): Controls two circuits simultaneously.
- DPDT (Double Pole Double Throw): Controls two circuits with two positions.
To connect a slide switch to a breadboard, you will need:
- A slide switch (preferably SPDT)
- A breadboard
- Jumper wires
- An LED (optional for testing)
- A resistor (typically 220Ω for the LED)
- A power source (like a battery)
Most slide switches have three pins. The middle pin is usually the common pin, while the other two pins are connected based on the switch's position.
*Image showing the pin configuration of a slide switch.*
Place your slide switch onto the breadboard. Ensure that each pin fits into separate rows to avoid short-circuiting.
*Image demonstrating how to place the slide switch on a breadboard.*
1. Connect the Middle Pin: This pin should be connected to your power source (VCC). For example, if you are using a 5V battery, connect it to this pin.
2. Connect One Outer Pin: Connect one of the outer pins to ground (GND).
3. Connect the Other Outer Pin: This pin will be used for your output signal or for connecting additional components like an LED.
*Wiring diagram showing connections from the slide switch to power and ground.*
To test if your slide switch works correctly, you can add an LED:
1. Connect the anode (long leg) of the LED to the outer pin of the switch that is not connected to ground.
2. Connect a resistor (220Ω) from the cathode (short leg) of the LED to ground.
This setup allows you to control whether the LED lights up based on the position of the slide switch.
*Image showing how to connect an LED with a resistor.*
Once everything is connected, toggle your slide switch. If connected correctly:
- In one position, the circuit should be closed, and the LED will light up.
- In the other position, the circuit will open, and the LED will turn off.
Once you are comfortable with basic connections, you can explore more complex configurations using multiple LEDs or even integrate microcontrollers like Arduino.

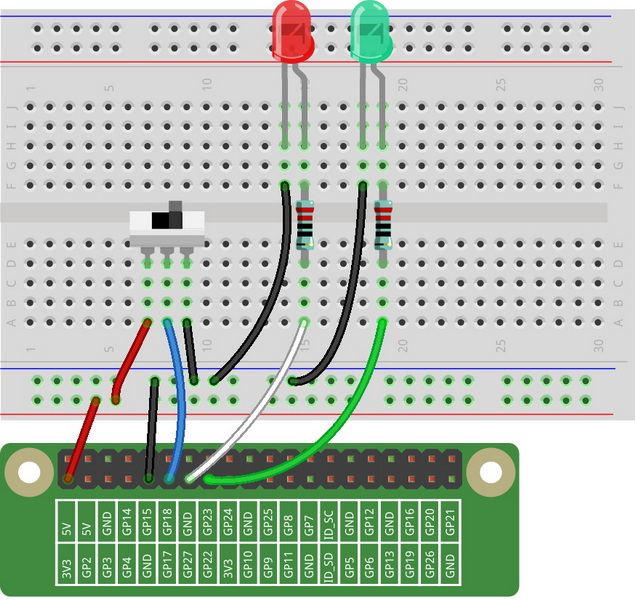

You can expand your circuit by connecting multiple LEDs. Here's how:
1. Connect Additional LEDs: Use additional resistors for each LED and connect them in parallel from the outer pins of your slide switch.
2. Control Multiple Outputs: Depending on how you wire them, you can have different LEDs light up based on which position your slide switch is in.

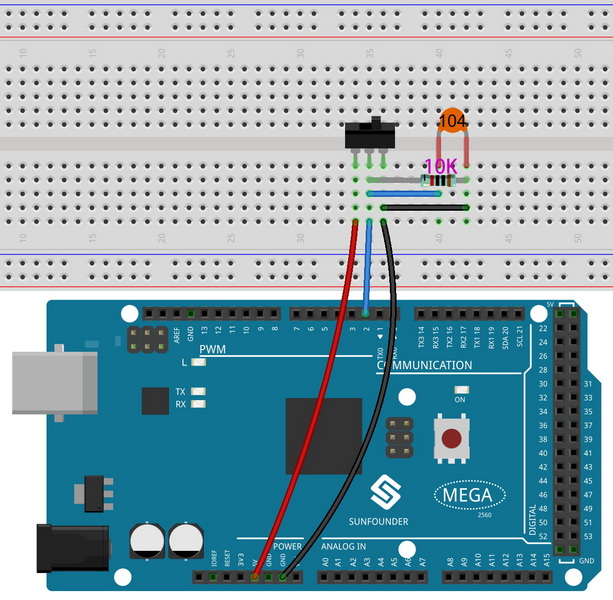

For those interested in programming, integrating a slide switch with an Arduino can enhance your projects significantly:
1. Connect Your Slide Switch: Use one pin as input from your slide switch connected to a digital input on Arduino.
2. Write Simple Code: Program your Arduino to read the state of the slide switch and control an output device like an LED or motor based on its position.
Connecting a slide switch to a breadboard is straightforward once you understand how it operates and how to wire it correctly. This skill is essential for building various electronic projects, from simple circuits to more complex systems involving microcontrollers.
A slide switch is used to control electrical circuits by connecting or disconnecting them based on its position.
You can identify pins using a multimeter in continuity mode or by referring to datasheets that provide diagrams for specific models.
Yes, you can connect multiple LEDs in parallel or series configurations depending on your circuit design needs.
If connected incorrectly, it may not function as intended, potentially causing short circuits or damaging components.
Yes, alternatives include toggle switches, push buttons, or even electronic switches like MOSFETs depending on your project requirements.
