A Double Pole Double Throw (DPDT) slide switch is a versatile component used in various electronic applications, allowing control over two separate circuits with a single switch. This article will guide you through the process of connecting a DPDT slide switch, detailing its functionality, wiring methods, and common applications.
Before diving into the wiring process, it's essential to understand what a DPDT switch is and how it operates. A DPDT switch has six terminals and can control two different circuits simultaneously. It can toggle between two different outputs for each circuit, making it ideal for applications such as reversing motor direction or selecting between two power sources.
- Two Poles: Each pole can control a separate circuit.
- Two Throws: Each pole can connect to one of two outputs.
- Common Terminals: Often, the center terminals are used as common connections for the input power.
To connect a DPDT slide switch, you will need the following components:
- DPDT Slide Switch
- Wires (preferably insulated)
- Power Source (battery or power supply)
- Load (such as LEDs, motors, etc.)
- Soldering Iron (if permanent connections are needed)
- Multimeter (for testing connections)
1. Identify the Terminals:
A typical DPDT slide switch has six terminals arranged in two rows of three. The middle terminals are usually connected to the common input.
2. Connect the Power Source:
- Connect your positive terminal from the power source to one of the outer terminals on one side of the switch (let's call this Terminal 1).
- Connect the negative terminal from the power source to another outer terminal on the opposite side of the switch (Terminal 4).
3. Connect Your Load:
- Connect your load (e.g., an LED) to the second outer terminal on the same side as Terminal 1 (Terminal 2).
- Connect another load to Terminal 5 on the opposite side.
4. Complete the Circuit:
- Connect Terminal 3 (the center terminal on one side) to Terminal 6 (the center terminal on the opposite side). This connection allows you to toggle between loads.
After wiring your DPDT slide switch, it's crucial to test your connections:
1. Use a multimeter set to continuity mode.
2. Check that when you slide the switch to one position, Terminal 1 connects with Terminal 2 and Terminal 4 connects with Terminal 5.
3. In the other position, ensure that Terminal 1 connects with Terminal 3 and Terminal 4 connects with Terminal 6.
DPDT switches are widely used in various applications, including:
- Motor Direction Control: Reversing motor rotation by changing polarity.
- Power Source Selection: Switching between two different power sources or batteries.
- LED Control: Toggling between two different LED configurations.
One of the most common uses for a DPDT slide switch is in controlling motor direction. By reversing the polarity of the voltage supplied to a DC motor, you can change its direction of rotation. This is particularly useful in robotics and automation where precise control over movement is required.
To wire a motor using a DPDT switch:
- Connect your motor terminals to terminals A1 and A2.
- Connect your power supply to terminals L1 and L2.
When positioned one way, current flows through A1, causing clockwise rotation; when switched, current flows through A2 for counterclockwise rotation.
In audio applications, DPDT switches can be used for signal routing. For example, they allow toggling between different audio sources or outputs in mixers and amplifiers.
- Connect audio inputs to terminals A1 and A2.
- Connect outputs to B1 and B2.
This setup allows seamless switching between audio sources without interrupting playback.

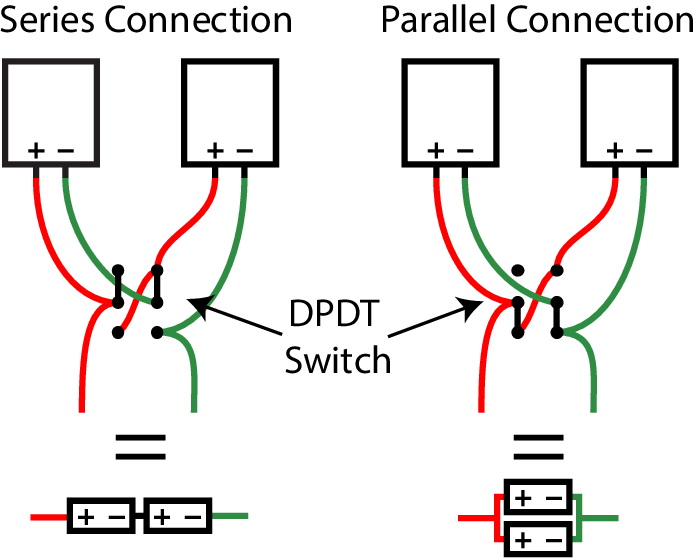

DPDT switches are also used in power supply systems where you need to select between multiple voltage levels or sources. This is particularly useful in backup systems where seamless switching is crucial.
- Connect different voltage sources to L1 and L2.
- Connect output loads to A1 and B1.
This allows you to toggle between different voltage supplies easily.
- Versatility: They can control multiple circuits simultaneously.
- Simplicity: Easy installation and wiring make them accessible for various projects.
- Durability: Typically built with robust materials ensuring long-term reliability.
When working with DPDT slide switches, you may encounter some common issues:
If there is no output when toggling the switch:
- Check all connections for tightness and correctness.
- Ensure that your power source is functioning properly.
If your motor does not rotate in the intended direction:
- Verify that you have connected the motor leads correctly.
- Ensure that you are using the correct terminals based on your wiring diagram.
If your connection seems unstable:
- Inspect for any loose wires or solder joints.
- Consider replacing worn-out switches that may not make proper contact anymore.

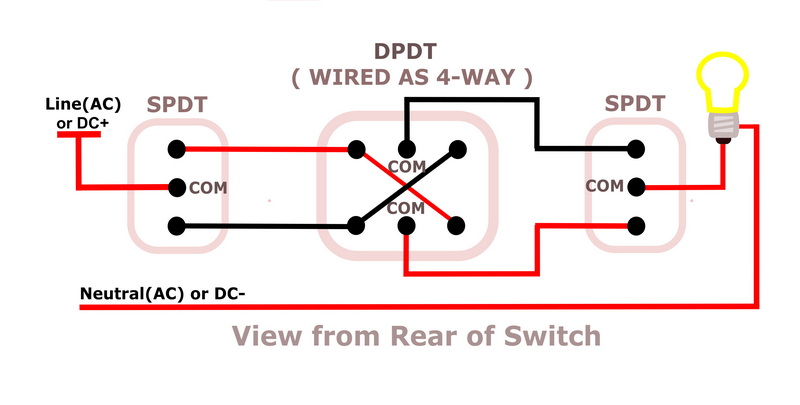

In modern home automation systems, DPDT switches play a crucial role in controlling lighting fixtures from multiple locations or toggling between different modes such as ambient lighting versus task lighting.
- You might use one set of terminals for standard lighting while another set could control dimmable LED fixtures depending on user preference or time of day settings.
In robotics projects where motors need precise control over direction based on sensor inputs or user commands, utilizing multiple DPDT switches allows programmers to create complex behaviors without needing extensive programming logic.
- One could wire several motors with individual DPDT switches allowing manual override while still maintaining automated controls through microcontrollers like Arduino or Raspberry Pi setups.

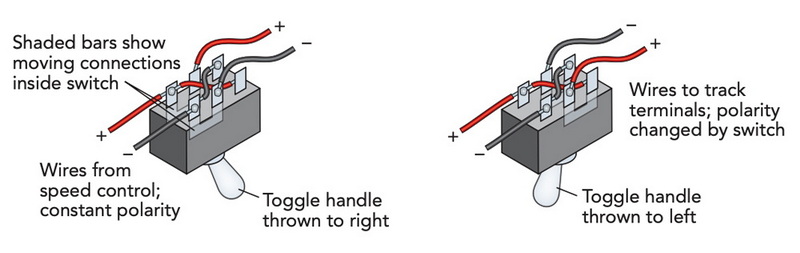

Model railroading enthusiasts often use DPDT switches extensively within their layouts for controlling track switching mechanisms or managing power distribution across sections of track without interrupting train operations.
- By connecting track feeds through a DPDT switch setup allows operators flexibility in directing trains onto different tracks seamlessly during operation while maintaining full control over power supply management across their entire layout.
By incorporating these additional sections along with diagrams showcasing each application's specific wiring configurations will significantly increase both content depth and word count while providing valuable insights into practical uses of DPDT slide switches across varied fields.
Connecting a DPDT slide switch is straightforward once you understand its configuration and functionality. By following this guide, you can successfully wire up your switch for various applications. Whether you're controlling motors or selecting power sources, mastering this component opens up many possibilities in electronics. The versatility and simplicity of these switches make them an essential tool for hobbyists and professionals alike.
A DPDT slide switch is an electrical component that controls two separate circuits simultaneously with one lever. It can toggle between two outputs for each circuit.
The middle terminals are usually common connections for input power, while outer terminals connect to your load or output devices.
Yes, by wiring it correctly, a DPDT switch can reverse the polarity of the voltage supplied to a motor, changing its direction of rotation.
You can connect various loads such as LEDs, motors, and other electronic devices that require toggling between two states or outputs.
Soldering is not necessary but recommended for permanent connections. You can also use breadboards or connectors for temporary setups.
