Micro switches are versatile and essential components across industries, from home appliances to automotive systems and industrial controls. Their reliability, rapid switching, and small size make them the preferred choice for engineers and designers seeking precise control and feedback. But how do you ensure a micro switch is tailored to your project's unique requirements? This comprehensive guide explores every aspect of micro switch customization, from parameters and environmental protection to integration, testing, and OEM/ODM services.

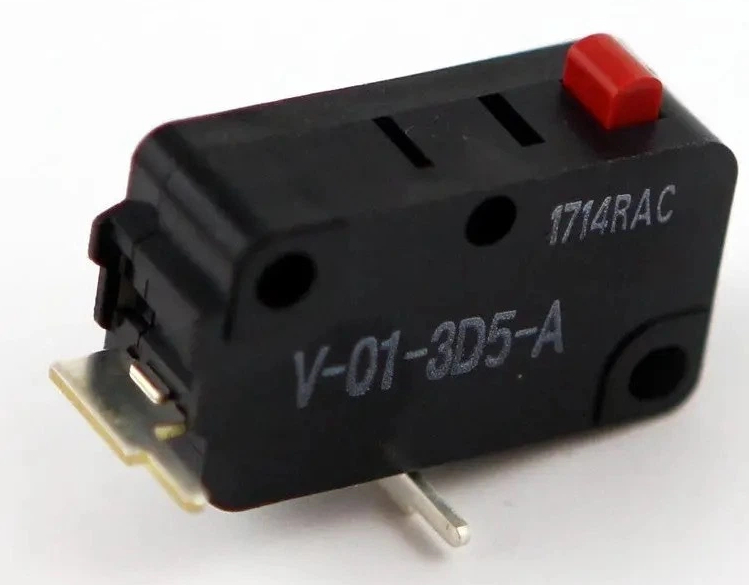

A micro switch is a miniature snap-action switch with a mechanism that operates rapidly under minimal physical force. These switches provide tactile and audible feedback, and their reliability comes from their rapid switching characteristics. Used in both high-end electronics and everyday devices, micro switches are prized for durability and consistency.
Micro switches typically feature a small actuator that, when pressed, rapidly changes the state of the electrical contacts inside. This snap-action behavior creates precise responses with minimal wear over millions of operation cycles.
While standard micro switches serve a wide range of purposes, custom micro switches are necessary for:
- Specialized device geometries that require unique actuator shapes or mounting solutions.
- Optimized performance such as specific actuation force, travel distance, or tactile feedback.
- Unique environmental protections including waterproof, dustproof, or resistance to chemicals and extreme temperatures.
- Integration with existing electrical systems, needing custom terminal arrangements or contact materials.
- Differentiated aesthetics to align with branded products or specific industrial design requirements.
Customization ensures compatibility, longevity, enhanced performance, and a superior user experience for specific applications.
Customization starts with a thorough understanding of the application's requirements. This includes:
- Installation Environment: Consider the temperature range, humidity levels, chemical exposure, dust presence, and the likelihood of water exposure.
- Electrical Parameters: Required operating voltage and current ratings determine contact materials and terminal designs.
- Mechanical Parameters: Determine the actuation force needed, travel distance, size constraints, and mounting style.
- Operational Life: The number of expected actuation cycles affects material choice and design robustness.
- Special Certifications: Compliance with RoHS, UL, TUV, or other industry-specific standards may be necessary.
A detailed requirement analysis lays the foundation for all further design decisions.
The actuator is the component that the user or machine physically interacts with. Common actuator types include:
- Pin Plunger: Compact and direct actuation for precise triggering.
- Roller Lever: Reduces friction and provides smooth operation ideal for mechanical linkages.
- Simulated Roller: Offers a rolling feel with smaller actuator size.
- Hinge Lever: Provides mechanical advantage for heavier actuations.
- Extended Lever: Useful for difficult-to-reach or sensitive trigger points.
Actuator size, length, angle, and material can be adjusted to fit device geometry and functional needs.
Terminals must match the integration needs of the hosting device:
- Solder Terminals for printed circuit board (PCB) mounting.
- Quick Connect Terminals for easy mating with wires during assembly.
- Screw Terminals for robust connections in heavy-duty or industrial devices.
Contact configuration often includes Normally Open (NO), Normally Closed (NC), or Changeover (CO) contacts.
Contact materials influence conductivity, durability, and corrosion resistance:
- Silver: Most common due to excellent conductivity.
- Gold: Used for low-voltage or signal-level applications to prevent oxidation.
- Platinum or Other Alloys: Employed in specialized environments that require high wear resistance or chemical stability.
Operating force can be customized according to ergonomic or mechanical requirements, ranging from very light touches (approximately 15 grams force) to heavy-duty actuations (up to 500 grams force).
Voltage ratings depend on device electrical systems and range from low-voltage DC (5V, 12V, 24V) to AC mains voltage switches.
Micro switches come in various sizes:
- Miniature, Subminiature, Ultra-miniature: Suitable for compact electronics.
- Heavy-duty: For industrial and automotive applications.
Mounting styles include PCB mount, panel mount, surface mount, or custom brackets to ease integration.
For harsh environments, micro switches can be designed with sealing to meet IP67 or IP68 standards, providing protection against dust, water jets, and even temporary submersion.
Materials and design adaptations can offer:
- Resistance to high or low temperatures.
- Chemical resistance for exposure to oils, solvents, or acids.
- Vibration and shock resistance for automotive or industrial uses.
Additional features can be integrated based on project needs:
- Incorporation of LED indicators to provide visual feedback.
- Use of double-spring mechanisms for enhanced durability.
- Multi-position switches, allowing multiple outputs or throw positions.
These options enable micro switches to meet very specific functionality requirements.
Once the specifications are finalized, the engineering team creates 3D computer-aided design (CAD) models and prototypes.
- Rapid Prototyping: Initial samples allow for hands-on evaluation.
- Rigorous Testing: Includes mechanical endurance tests, environmental stress (temperature, moisture), and electrical reliability tests.
- Iterative Design Improvements: Based on testing feedback, further modifications ensure the final design meets all criteria.
This phase is crucial to avoid costly issues during mass production.
After prototype approval:
- Mold and Tooling Creation: Custom tooling is built for unique shapes or actuator types.
- Automated Assembly Lines: Provide consistent product quality and efficiency.
- Quality Control: Comprehensive inspections test actuation force, insulation resistance, life cycles, and environmental seals.
Quality assurance guarantees that every micro switch performs reliably throughout its service life.
Factories specializing in micro switches often offer full OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) services, including:
- Custom Branding: Laser marking, logo printing, and specific packaging designs.
- Additional Services: After-sales support, consultancy on system integration, life expectancy analysis, and certification management.
- Flexible Production Runs: From small prototype batches to large-scale manufacturing.
Partnering with professional OEM/ODM suppliers ensures that your customized micro switches align perfectly with your product and market goals.
| Industry | Customization Aspect | Benefit |
|---|---|---|
| Home Appliances | Unique actuator shapes tailored for microwave doors or washing machine controls | Enhances safety and improves user experience |
| Automotive | Waterproof casing and reinforced electrical contacts | Provides reliable operation in harsh conditions |
| Industrial Control | Multiple contact sets with higher current capacities | Supports complex control systems and increases safety |
| Medical Devices | Miniaturized designs with gold contacts | Ensures compactness and reduces oxidation |
| Gaming Products | Specialized tactile feedback tuning | Delivers satisfying and responsive user interactions |
These examples show how customization allows micro switches to address precise demands across sectors.
Modern projects often combine micro switches with smart electronics for enhanced device control.
- Signal Conditioning: Custom micro switches can be designed with internal circuitry to interface with microcontrollers or IoT platforms.
- Low Power Consumption: Selecting contact materials and designs that reduce power draw improves battery life in portable devices.
- Noise Reduction: Incorporation of noise suppression techniques helps prevent signal interference especially where micro switches operate in electrically noisy environments.
Environmental regulations require the use of eco-friendly materials and manufacturing processes.
- RoHS Compliance: Ensures materials are free from hazardous substances like lead or mercury.
- End-of-Life Considerations: Some factories provide micro switches designed for easy recycling or disposal.
- Factories often help customers navigate these regulations by recommending design changes or certifications.
Customization typically increases per-unit cost. Selecting the right balance between performance and cost is crucial.
- Economical Sealing Solutions: For moderate environments, simpler sealing methods reduce costs.
- Standard Actuator Shapes with Custom Finish: May achieve sufficient customization with less expense.
- Volume Discounts: Larger production runs lower unit costs, making full customization more feasible.
Engaging with suppliers early helps identify cost-effective solutions tailored to the project's needs.
Customizing a micro switch is a detailed and multifaceted process that transforms a standard component into a tailored solution meeting unique operational, environmental, and ergonomic demands. From precise requirement analysis through iterative prototyping and rigorous testing, customization ensures your micro switch integrates seamlessly, delivers outstanding reliability, and enhances user satisfaction.
Leveraging professional OEM/ODM partnerships offers valuable expertise, advanced manufacturing capabilities, and streamlined quality control. Whether designing consumer electronics, automotive safety systems, industrial control panels, or medical devices, custom micro switches provide the dependable precision essential for innovation and competitive product differentiation.
Nearly every aspect of a micro switch can be tailored, including actuator type and size, terminal configuration, contact material, operating force and voltage, mounting styles, environmental protection (such as waterproofing and dustproofing), and special features like LED indicators or multi-position switches.
Yes. Many micro switch OEM/ODM factories accommodate small batch orders and prototype runs to support research and development, early market testing, or low-volume specialized applications.
Absolutely. Custom micro switches can be sealed to meet IP67 or IP68 standards for water and dust resistance, built to operate under high or low temperatures, resist chemicals, and endure vibration or shock in demanding industrial or automotive contexts.
The timeline depends on the complexity of design requirements and production scale, but generally spans several weeks. This includes requirement analysis, prototyping, testing, iterative adjustments, and mold/tool creation before mass production commences.
Industries such as home appliances, automotive, gaming, robotics, industrial automation, and medical devices significantly benefit from tailored micro switches that meet specific functional, environmental, and regulatory needs.
