Microwaves are essential kitchen appliances, but when they malfunction, it can be frustrating. One common issue involves the micro switch, which is crucial for the operation of the microwave door. This guide will walk you through the steps to safely remove a micro switch from a microwave, including necessary precautions, tools required, and troubleshooting tips.
Micro switches are small devices that detect the position of the microwave door. They ensure that the microwave does not operate when the door is open, preventing accidents and ensuring safety. If your microwave is not functioning correctly, the micro switch may be faulty.
Typically, microwaves have three types of micro switches: door latch switches, interlock switches, and monitor switches. The door latch switch ensures that the door is closed before the microwave operates. The interlock switch prevents operation when the door is open, and the monitor switch ensures that the interlock switch is functioning correctly.
Before starting any repair work on your microwave, it's essential to take safety precautions:
- Tools Needed:
- Screwdriver (Phillips and flathead)
- Multimeter (for testing)
- Wire cutters or strippers
- Insulated gloves
- Safety goggles
- Needle-nose pliers (optional)
- Safety Precautions:
- Unplug the Microwave: Always disconnect the power supply before starting any repairs.
- Discharge Capacitors: Microwaves contain high-voltage capacitors that can hold a charge even when unplugged. Use a screwdriver with an insulated handle to short the capacitor terminals.
- Work in a Well-Lit Area: Ensure you have good visibility while working.
- Wear Protective Gear: Use safety goggles and gloves to protect yourself from any sharp edges or electrical components.
1. Remove the Outer Cover:
- Use a screwdriver to remove screws from the back and sides of the microwave.
- Carefully lift off the cover to expose internal components.
2. Locate the Control Panel:
- Open the microwave door and look for screws securing the control panel.
- Remove these screws and gently tilt forward to access internal wiring.
3. Document Wiring Connections:
- Before disconnecting any wires, take pictures to remember their positions for reassembly.

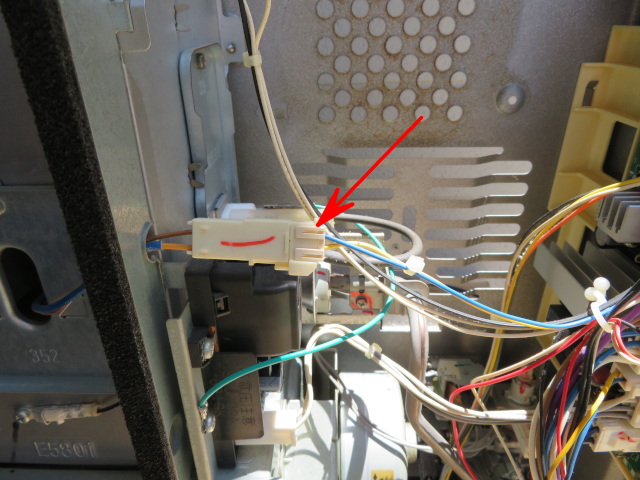

4. Disconnect Wire Connectors:
- Carefully pull out wire connectors attached to the micro switch. Use a gentle rocking motion if they are tight.
5. Identify Micro Switches:

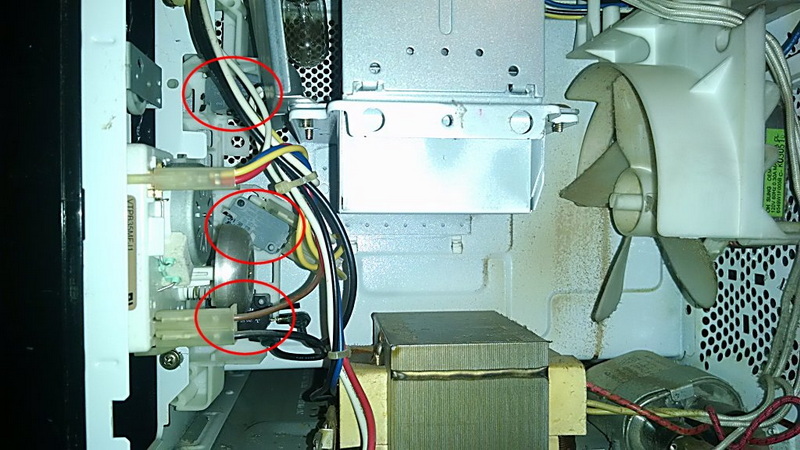

- Locate the micro switches; typically, there are three: upper, middle, and lower switches.
6. Unscrew Micro Switches:
- Using a screwdriver, remove screws holding each switch in place.
- Gently pull out each switch from its housing.
7. Inspect and Test Switches:
- Use a multimeter to test each switch for continuity. If a switch is faulty, replace it with a new one.
8. Reinstall New or Repaired Switches:
- Place new or repaired switches back into their respective housings.
- Secure them with screws.
9. Reconnect Wires:
- Reattach all wire connectors according to your documentation or photos taken earlier.
10. Replace Control Panel and Outer Cover:
- Carefully tilt back and secure the control panel with screws.
- Replace the outer cover and secure it with screws.
If your microwave still does not function after replacing or removing micro switches, consider these troubleshooting steps:
- Check Fuses: Inspect internal fuses for any signs of damage or blowing. Replace if necessary.
- Inspect Wiring Connections: Ensure all wire connectors are securely attached and not damaged.
- Test Other Components: If issues persist, other components such as diodes, transformers, or circuit boards may require inspection.
- Consult User Manual: Refer to your microwave's user manual for specific troubleshooting tips related to your model.
While many microwave issues can be resolved at home, some problems may require professional assistance:
- If you are uncomfortable working with electrical components or unsure about any step in this process.
- If you have replaced micro switches but still experience issues, it may indicate deeper electrical problems that need expert attention.
- If your microwave is under warranty, tampering with internal components may void it; consult with customer service before proceeding.
Removing and replacing a micro switch in a microwave is a manageable task if approached with caution and attention to detail. Always prioritize safety by disconnecting power and discharging capacitors before beginning repairs. With proper tools and steps outlined above, you can effectively troubleshoot and resolve issues related to faulty micro switches in your microwave.
Maintaining your microwave by understanding its components can save you time and money while ensuring safe operation in your kitchen. Regular checks on micro switches can prevent unexpected failures and extend your appliance's lifespan.
A faulty micro switch may cause the microwave not to start, trip circuit breakers when opening or closing the door, or fail to stop cooking when the door is opened.
You can test a micro switch using a multimeter set to continuity mode. If it shows continuity when pressed and no continuity when released, it is functioning correctly.

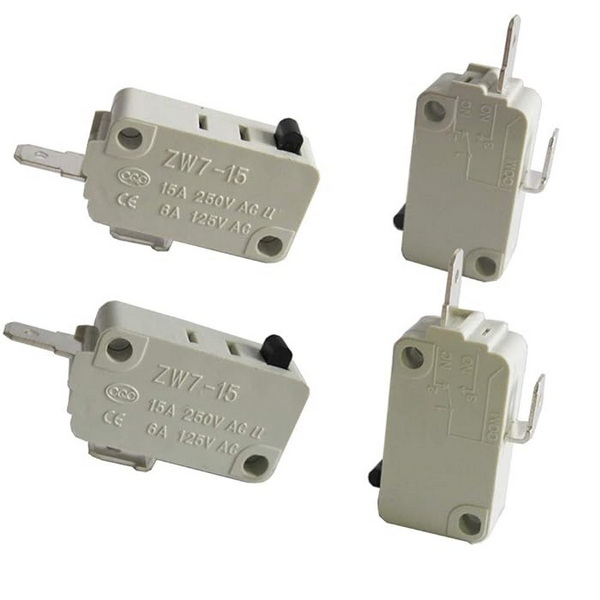

Yes, microwaves typically use normally open (NO) or normally closed (NC) micro switches depending on their design requirements.
Yes, as long as you follow safety precautions and have basic tools, you can replace a micro switch yourself without professional help.
If your microwave still doesn't function after replacing the switch, consider checking other components such as fuses or circuit boards for faults.
