Micro switches are small but crucial components found in various electronic devices, from appliances to gaming controllers. They serve as triggers that activate when a specific physical movement occurs. Over time, these switches can fail due to wear and tear, dirt accumulation, or internal component damage. This article will guide you through the process of repairing a micro switch, including identifying issues, disassembling the switch, cleaning and replacing components, and reassembling it.

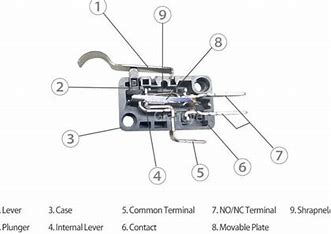

Before diving into the repair process, it's essential to understand what a micro switch is and its components. A typical micro switch consists of:
- Actuator: The part that is physically pressed to activate the switch.
- Contact Points: These are the electrical contacts that open or close the circuit when the actuator is pressed.
- Housing: The outer casing that protects the internal components.
The first step in repairing a micro switch is to identify what is wrong. Common issues include:
- The switch does not activate when pressed.
- The switch feels sticky or requires excessive force to operate.
- There is visible damage or wear on the actuator or housing.
To diagnose the problem, you can use a multimeter to check for continuity across the switch's terminals. If there is no continuity when the switch is pressed, it indicates a fault.
Once you've identified the issue, it's time to disassemble the micro switch. Follow these steps:
1. Gather Tools: You will need a small screwdriver, a multimeter, and cleaning supplies (like isopropyl alcohol and a soft brush).
2. Remove Housing: Depending on the design, you may need to unscrew or pry apart the housing carefully. Take pictures during this process to help with reassembly later.
3. Inspect Internal Components: Look for any visible signs of damage or dirt accumulation on the contacts and actuator.
Dirt and debris can significantly affect a micro switch's performance. Cleaning it can often restore functionality:
1. Clean Contacts: Use a soft brush dipped in isopropyl alcohol to clean the contact points gently.
2. Check for Corrosion: If you see corrosion on any metal parts, you may need to replace those components.
3. Dry Completely: Ensure all parts are dry before reassembly to prevent short circuits.
If any components are damaged beyond repair, they will need replacement. This may include:
- Actuator
- Contact points
- Internal springs
Replacement parts can often be sourced online or from electronics supply stores.
After cleaning and replacing any damaged parts, reassemble the micro switch:
1. Follow Your Photos: Use the pictures you took during disassembly as a guide for reassembly.
2. Secure Housing: Ensure all screws are tightened properly and that there are no loose parts.
3. Test Functionality: Before fully closing up, test the switch again using your multimeter to ensure it activates correctly.
Repairing a micro switch can be a straightforward process if approached methodically. By identifying issues, cleaning contacts, replacing damaged components, and carefully reassembling everything, you can often restore functionality without needing to purchase a new switch.
In summary, here's what you learned about repairing micro switches:
- Identify common problems and diagnose using a multimeter.
- Disassemble carefully while documenting each step.
- Clean internal components thoroughly.
- Replace any damaged parts before reassembly.
- Test functionality before finalizing repairs.
You will need a small screwdriver set, multimeter for testing continuity, cleaning supplies like isopropyl alcohol, and possibly replacement parts depending on your findings.
You can test for continuity using a multimeter; if it does not show continuity when pressed or always shows continuity regardless of being pressed, it may be faulty.
If the cost of replacement parts is low compared to buying a new switch and you have some technical skills, repairing can be worthwhile.
While some surface cleaning can be done without disassembly (e.g., using contact spray), thorough cleaning typically requires disassembly for effective results.
If repairs do not restore functionality, consider consulting with an electronics repair professional or replacing the entire switch as it may have irreparable damage.
