Replacing a micro switch in a Little Giant pump is a straightforward process that can be accomplished with some basic tools and a little patience. Micro switches are critical components that control the operation of pumps, ensuring they function correctly by detecting water levels or pressure. This guide will provide you with detailed steps, tips, and visuals to help you successfully replace your Little Giant micro switch.
What is a Micro Switch?

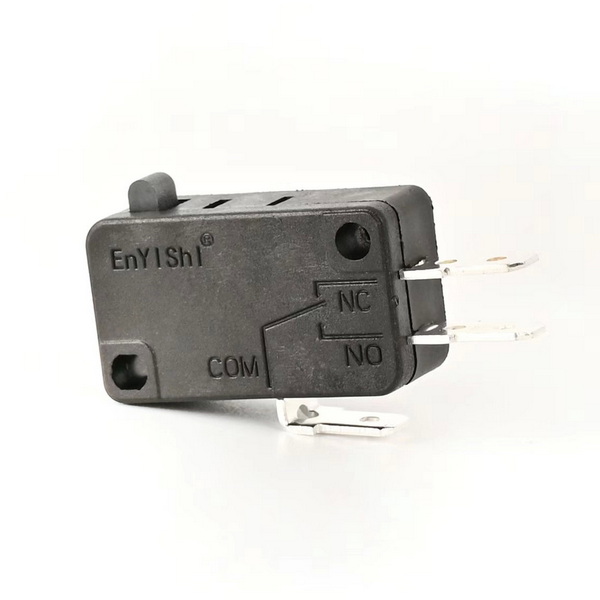

A micro switch is a small, sensitive switch that requires minimal force to operate. It typically consists of an actuator, a fixed contact point, and several internal components that allow it to complete or break an electrical circuit when activated. In pumps, micro switches are often used to control the on/off function based on water levels or pressure.
Before starting the replacement process, gather the following tools and materials:
- Replacement Micro Switch: Ensure you have the correct model compatible with your Little Giant pump.
- Screwdriver Set: For removing screws.
- Wrench Set: For any nuts or bolts.
- Multimeter: To test electrical connections.
- Wire Strippers/Cutters: For preparing wires.
- Heat Shrink Tubing or Electrical Tape: For insulating connections.
- Safety Gear: Gloves and goggles for protection.
Before beginning any work on your pump, ensure it is unplugged from the electrical outlet. This step is crucial for your safety.
Using a screwdriver, remove the screws holding the pump cover in place. Carefully lift off the cover to expose the internal components.
Identify the micro switch within your pump. It is usually mounted near the float assembly or diaphragm. Take note of how it is connected.
Using wire strippers or cutters, carefully disconnect the wires from the old micro switch. Make sure to remember which wire goes where; taking a photo can help with reassembly later.
Unscrew or unclip the old micro switch from its mounting location. Be gentle to avoid damaging any surrounding components.
Position the new micro switch in place and secure it using screws or clips as appropriate. Ensure it is mounted securely to prevent movement during operation.
Reconnect the wires to the new micro switch according to your earlier notes or photo. Use heat shrink tubing or electrical tape to insulate any exposed connections.
Before reassembling everything, use a multimeter to test that all connections are secure and functioning correctly.
Once everything is connected and tested, carefully replace the pump cover and secure it with screws.
Plug in your pump and test its operation. Make sure it turns on and off as expected based on water levels or pressure.
If your pump does not operate correctly after replacing the micro switch, consider these troubleshooting tips:
- Check Connections: Ensure all wires are securely connected and insulated.
- Inspect Float Mechanism: If applicable, ensure that the float mechanism moves freely without obstruction.
- Test Power Supply: Verify that power is reaching the pump by checking outlets and circuit breakers.
- Consult Manufacturer's Manual: Refer to your Little Giant pump manual for specific troubleshooting steps related to your model.
Replacing a micro switch in a Little Giant pump can be done efficiently with proper preparation and attention to detail. By following this guide, you can save time and money while ensuring your pump operates effectively. Regular maintenance, including checking switches and other components, will prolong the life of your equipment.
If your pump fails to turn on or off properly based on water levels, it's likely that the micro switch is malfunctioning.
Yes! With basic tools and following safety precautions, most users can replace a micro switch without professional help.
Refer to your pump's manual for specifications on compatible micro switches for your specific model.
While not strictly necessary, using heat shrink tubing provides better insulation and protection against moisture and wear.
Double-check all connections, ensure proper installation, and consult troubleshooting tips in this guide before seeking professional assistance.
