Replacing a slide switch button on a Milwaukee tool can seem daunting, but with the right tools and guidance, it is a manageable task. This article will provide a comprehensive guide on how to replace the Milwaukee slide switch button, including necessary tools, step-by-step instructions, and helpful tips.

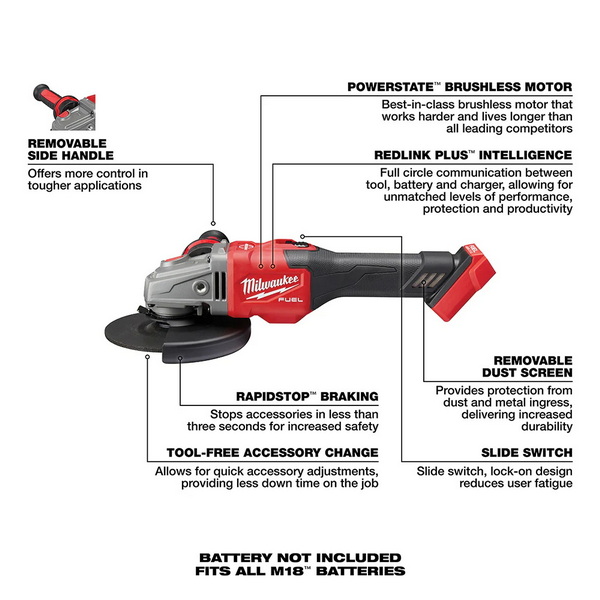

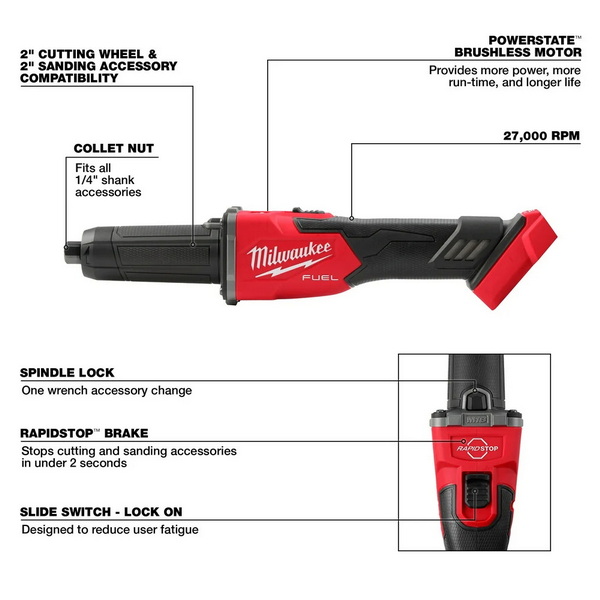

The slide switch button is an essential component of many Milwaukee power tools, such as angle grinders and saws. It allows users to turn the tool on and off easily. Over time, wear and tear can cause the button to break or malfunction. Replacing it promptly ensures that your tool remains functional and safe to use.
Before starting the replacement process, gather the following tools:
- Screwdriver: A flathead or Phillips screwdriver depending on your tool model.
- Replacement Slide Switch Button: Ensure you have the correct part number, such as 31-89-0245.
- Pliers: For handling small parts.
- Safety Goggles: To protect your eyes during repair.
- Multimeter: For testing electrical connections if needed.
Before beginning any repairs, ensure that the tool is unplugged from the power source. This step is crucial for your safety.
1. Locate and remove any screws securing the housing of your Milwaukee tool.
2. Carefully separate the two halves of the housing to expose the internal components.
Once you have access to the internal parts, locate the slide switch button. It is typically situated near the power cord connection.
1. Use a flathead screwdriver to gently pry up the old slide switch button from its position.
2. Be cautious not to damage surrounding components while removing it.
1. Align the new slide switch button (part number 31-89-0245) with its designated slot.
2. Press it firmly into place until you hear a click indicating it is secured properly.
1. Align both halves of the housing and gently press them together.
2. Reinsert and tighten all screws that were removed earlier.
Plug in your Milwaukee tool and test the new slide switch button to ensure it functions correctly.
Here are some visual aids that can help you understand each step better:
Step 1: Disconnect Power Supply
Step 2: Remove Tool Housing
Step 3: Identify Slide Switch Button
Step 4: Remove Old Slide Switch
Step 5: Install New Slide Switch
Step 6: Reassemble Tool Housing
Step 7: Test Functionality
While replacing a slide switch button is straightforward, there are common issues that may arise during or after replacement:
- Incorrect Part: Ensure you have ordered the correct part number for your specific model.
- Misalignment: If the switch does not engage properly, check for misalignment during installation.
- Electrical Issues: If problems persist after replacement, there may be underlying electrical issues unrelated to the switch itself.
- Take Photos: Document each step with photos so you can refer back if needed during reassembly.
- Keep Track of Screws: Use a small container to hold screws and small parts to prevent losing them.
- Use Genuine Parts: Always opt for OEM (Original Equipment Manufacturer) parts like part number 31-89-0245 for compatibility and reliability.
To prolong the life of your Milwaukee tools and minimize future repairs:
- Regular Cleaning: Keep your tools clean by wiping off dust and debris after each use.
- Proper Storage: Store tools in a dry place away from moisture to prevent rusting and electrical issues.
- Routine Inspections: Periodically check for signs of wear or damage, especially on switches and cords.
Milwaukee tools are designed with intricate electrical systems that require careful handling during repairs. Understanding how these systems work can help in troubleshooting issues beyond just replacing switches:
- Power Supply Connections: Familiarize yourself with how power flows through your tool. This includes recognizing where wires connect to switches and motors.
- Safety Features: Many Milwaukee tools come equipped with safety features like lock-off buttons which prevent accidental startups. Knowing how these interact with switches can aid in diagnosing problems.
If replacing your slide switch button does not resolve operational issues with your tool, consider these common electrical problems:
- Faulty Wiring: Inspect wiring connections for frays or breaks which could interrupt power flow.
- Motor Problems: If your tool runs intermittently or not at all after replacing the switch, there may be an issue with its motor requiring further inspection or professional repair.
For further assistance beyond this guide:
- Videos & Tutorials: There are numerous online resources available including YouTube tutorials specifically focused on Milwaukee tool repairs which visually demonstrate processes similar to those outlined here.
- Manufacturer Support: Milwaukee offers extensive support options including service centers where professionals can assist with repairs if DIY solutions prove insufficient.
Engaging in DIY repairs not only saves money but also enhances your understanding of how tools function:
- Cost Efficiency: Professional repairs can be costly; learning how to fix common issues allows you to save significantly over time.
- Skill Development: Every repair enhances your skills as a handyman or DIY enthusiast—valuable traits whether at home or in professional settings.
When working on power tools, safety should always be a priority. Here are some additional safety measures to consider:
- Work in a Well-Lit Area: Ensure that your workspace is well-lit so you can see all components clearly while working.
- Wear Protective Gear: In addition to safety goggles, consider wearing gloves to protect your hands from sharp edges inside the tool housing.
- Avoid Distractions: Focus solely on your task while performing repairs; distractions can lead to mistakes or accidents.
In conclusion, replacing a Milwaukee slide switch button is an empowering task that enhances both safety and functionality of your power tools. By following this comprehensive guide along with maintenance tips and troubleshooting advice, you can ensure that your tools remain reliable partners in all your projects. Regular upkeep coupled with knowledge gained from DIY repairs will serve you well in maintaining an efficient workshop environment.
You will need a screwdriver, pliers, safety goggles, and a replacement slide switch button (part number 31-89-0245).
Typically, replacing the slide switch button takes about 15 to 30 minutes depending on your experience level with repairs.
While aftermarket parts may be cheaper, it is recommended to use OEM parts for better compatibility and performance.
If your new slide switch button does not fit properly, double-check that you have ordered the correct part number for your specific model.
Yes, as long as you follow safety precautions such as disconnecting power supply and wearing safety goggles during repair.
