Micro switches are essential components in various electronic devices and industrial applications. These small but powerful switches play a crucial role in controlling electrical circuits and ensuring the proper functioning of many systems. In this comprehensive guide, we'll explore the process of setting up a micro switch, from understanding its basic components to wiring and troubleshooting. Whether you're a DIY enthusiast or a professional technician, this article will provide you with valuable insights into working with micro switches.

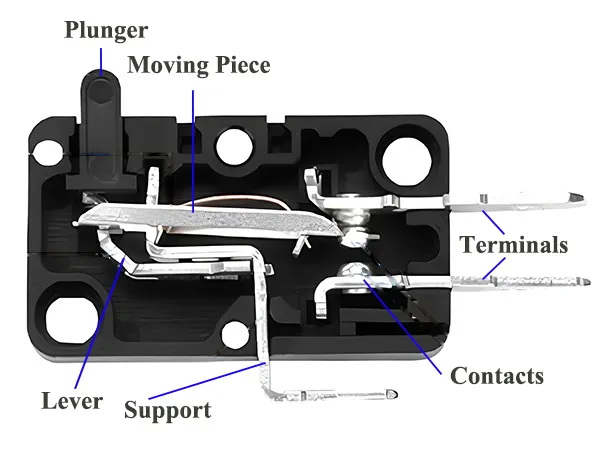

Before diving into the setup process, it's important to understand what a micro switch is and how it works. A micro switch, also known as a miniature snap-action switch, is a small electrical switch that operates with minimal physical force. It consists of three main terminals: Common (COM), Normally Open (NO), and Normally Closed (NC).
The switch's mechanism is designed to change states quickly, producing a distinctive "click" sound when activated. This rapid action makes micro switches ideal for applications requiring precise timing and reliability.
There are several types of micro switches available, each suited for different applications:
1. Single Pole Double Throw (SPDT)
2. Single Pole Single Throw (SPST)
3. Double Pole Double Throw (DPDT)
4. Subminiature
5. Waterproof
Understanding the type of micro switch you need is crucial for proper setup and functionality.
Before setting up your micro switch, gather the following tools and materials:
- Micro switch
- Wire strippers
- Soldering iron and solder
- Heat shrink tubing
- Multimeter
- Screwdriver set
- Electrical tape
- Wire (appropriate gauge for your application)
Having these items on hand will ensure a smooth setup process.
The first step in setting up a micro switch is to identify its terminals. As mentioned earlier, there are typically three terminals:
- Common (COM): The central terminal
- Normally Open (NO): Connects to COM when the switch is activated
- Normally Closed (NC): Connected to COM when the switch is not activated
Correctly identifying these terminals is crucial for proper wiring and functionality.
Before wiring, plan your circuit carefully. Determine whether you need the switch to complete a circuit when pressed (NO) or break a circuit when pressed (NC). This decision will affect how you wire the switch.
Strip the ends of your wires using wire strippers, exposing about 1/4 inch (6mm) of bare wire. If you're using stranded wire, twist the exposed strands together to prevent fraying.

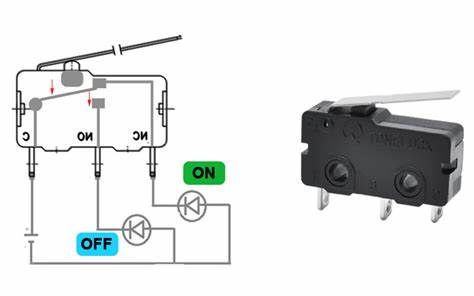

Depending on your application, connect the wires to the appropriate terminals:
- For a normally open circuit: Connect one wire to COM and the other to NO
- For a normally closed circuit: Connect one wire to COM and the other to NC
There are several methods to secure the wire connections:
1. Tin the wire ends and switch terminals with a small amount of solder.
2. Heat the terminal with the soldering iron and touch the wire to it, allowing the solder to flow and create a secure connection.
3. Let the joint cool before moving the wire.
For some applications, you can use quick connectors that slide onto the switch terminals. Ensure they fit snugly and make good contact.
Some micro switches come with screw terminals. In this case:
1. Loosen the terminal screws.
2. Insert the stripped wire end into the terminal.
3. Tighten the screw to secure the wire.
After securing the connections, it's important to insulate them to prevent short circuits:
1. Slide heat shrink tubing over each connection.
2. Use a heat gun or lighter to shrink the tubing, ensuring it's snug around the connection.
3. Alternatively, you can wrap each connection with electrical tape.
Secure the micro switch in its intended location. Many switches have mounting holes or tabs for this purpose. Ensure the switch is positioned correctly for its intended function.
Before finalizing the installation, test the switch to ensure it's working correctly:
1. Use a multimeter set to continuity mode.
2. Test the connection between COM and NO (or NC, depending on your setup) with the switch in both activated and non-activated states.
3. Verify that the circuit opens and closes as expected when the switch is activated.
Micro switches find applications in various fields due to their reliability and precision. Some common uses include:
1. Home appliances (e.g., microwave door sensors)
2. Automotive systems (e.g., door sensors, limit switches)
3. Industrial machinery (e.g., safety interlocks)
4. Gaming devices (e.g., arcade buttons)
5. Security systems (e.g., tamper detection)
Understanding these applications can help you appreciate the versatility of micro switches and inspire new uses in your projects.
To ensure long-term reliability of your micro switch setup:
1. Regularly inspect the switch and connections for signs of wear or damage.
2. Keep the switch clean and free from debris.
3. If you notice inconsistent operation, check the wiring and connections.
4. For switches in high-use applications, consider implementing a maintenance schedule to replace them before they fail.
When working with micro switches, especially in mains voltage applications, safety should be your top priority:
1. Always disconnect power sources before working on electrical circuits.
2. Use appropriate personal protective equipment (PPE) when soldering or working with electrical components.
3. Ensure all connections are properly insulated to prevent short circuits.
4. If you're unsure about any aspect of the setup, consult a qualified electrician.
For those looking to take their micro switch setups to the next level, consider these advanced techniques:
Micro switches can sometimes produce multiple signals when activated due to mechanical bouncing. Implement debouncing techniques in your circuit or software to ensure clean, single activations.
For more complex applications, you can wire multiple micro switches in parallel or series to create logic gates or redundant safety systems.
Parallel and series configurations
Micro switches can be easily integrated with microcontrollers like Arduino or Raspberry Pi for more sophisticated control and monitoring applications.
Setting up a micro switch is a straightforward process that can greatly enhance the functionality of various devices and systems. By following the steps outlined in this guide, you can confidently install and use micro switches in your projects. Remember to prioritize safety, plan your circuit carefully, and maintain your switches for optimal performance. Whether you're building a simple control mechanism or a complex industrial system, mastering the setup of micro switches opens up a world of possibilities in electrical and mechanical design.
Micro switches are known for their durability and can last for millions of cycles under normal conditions. However, the exact lifespan depends on factors such as usage frequency, environmental conditions, and the quality of the switch. In general, a well-maintained micro switch can last anywhere from 1 to 10 million cycles.
Most micro switches are designed to work with both AC and DC circuits. However, it's crucial to check the switch's specifications to ensure it's rated for the voltage and current of your specific application. Some switches may be optimized for either AC or DC use, so always verify compatibility before installation.
While both micro switches and limit switches serve similar purposes, there are some key differences:
- Size: Micro switches are generally smaller and more compact.
- Activation Force: Micro switches typically require less force to activate.
- Precision: Micro switches often offer more precise activation points.
- Applications: Limit switches are more commonly used in industrial settings, while micro switches have a broader range of applications, including consumer electronics.
Selecting the right micro switch involves considering several factors:
- Electrical ratings (voltage and current capacity)
- Actuator type (lever, button, roller, etc.)
- Environmental conditions (temperature, humidity, dust)
- Size constraints
- Activation force required
- Lifespan expectations
Assess your project's specific needs and compare them with the specifications of available micro switches to make the best choice.
In many cases, replacing a faulty micro switch in an appliance is a task that can be done by a DIY enthusiast. However, it's important to consider the following:
- Safety: Always unplug the appliance before attempting any repairs.
- Warranty: Opening an appliance may void its warranty.
- Complexity: Some appliances may be more complex and require professional service.
- Skill level: If you're not confident in your ability to safely replace the switch, it's best to consult a professional.
If you decide to proceed, ensure you have the correct replacement switch and follow proper safety procedures throughout the process.
