Micro switches are essential components in EZ GO gas carts, playing a crucial role in the operation of various electrical systems. They are responsible for activating functions such as the accelerator pedal, brake lights, and even the reverse buzzer. Understanding how to test these switches can help you diagnose issues effectively and maintain your cart's performance. This article will guide you through the process of testing micro switches on an EZ GO gas cart, including necessary tools, step-by-step instructions, and troubleshooting tips.

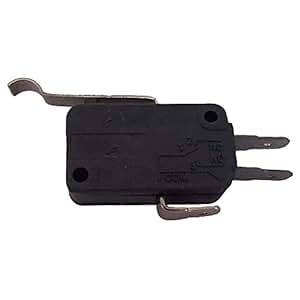

A micro switch, also known as a snap-action switch, is a small electrical switch that is activated by a minimal amount of force. It consists of a lever mechanism that opens or closes an electrical circuit when pressed. In golf carts, micro switches are used for:
- Activating the accelerator pedal
- Controlling brake lights
- Engaging reverse alarms
- Indicating the state of charge in electric carts
Before you begin testing your micro switches, gather the following tools:
- Multimeter (with ohm and voltage settings)
- Screwdriver set
- Wire cutters/strippers
- Safety goggles
- Electrical tape
Before starting any work on your EZ GO gas cart, ensure that it is turned off and the key is removed from the ignition. Disconnect the battery to prevent any accidental short circuits.

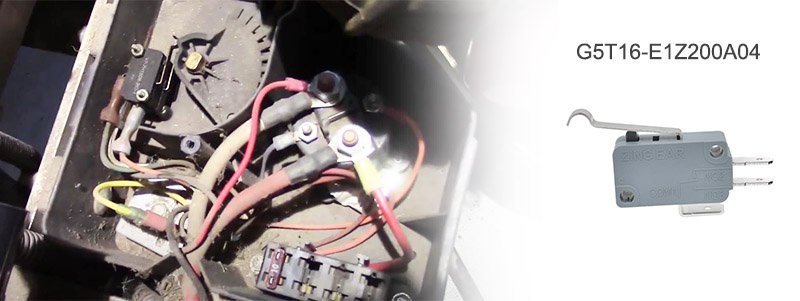

Micro switches are typically located near the accelerator pedal and under the floorboard of your cart. Depending on your model, you may need to remove some panels or covers to access them.
Check for any visible signs of damage such as cracks, corrosion, or loose connections. If you notice any physical damage, it may be necessary to replace the switch rather than test it.
Carefully disconnect the wires from the micro switch terminals. Make sure to note their positions for reconnection later.
Set your multimeter to the ohms (Ω) setting to measure resistance.
Place one probe of the multimeter on one terminal of the micro switch and the other probe on the second terminal. In its default state (not pressed), a functioning micro switch should show infinite resistance (open circuit).
- Reading: Infinite resistance indicates an open circuit.
Press down on the lever of the micro switch while keeping one probe on each terminal. The multimeter should now display a low resistance value (typically close to zero).
- Reading: Low resistance indicates a closed circuit.
If your readings do not match these expectations, your micro switch may be faulty and should be replaced.
In addition to testing resistance, you can also check if voltage is reaching the micro switch when activated.
Reconnect the wires to their original terminals after conducting resistance tests.
Change your multimeter setting to measure DC voltage.
With everything connected and secured, turn on your EZ GO gas cart.
Press down on the accelerator pedal while measuring voltage at one of the terminals of the micro switch. You should see a voltage reading consistent with your battery voltage (typically around 12 volts for most carts).
- Reading: A proper voltage reading indicates that power is reaching the micro switch correctly.
If your tests indicate that a micro switch is not functioning properly, consider these common issues:
- Corroded Connections: Clean any corrosion from terminals and connectors.
- Wiring Issues: Inspect wires for fraying or breaks; repair or replace as necessary.
- Faulty Components: If multiple switches are failing, there may be an issue with the power source or control unit.
Testing micro switches on an EZ GO gas cart is essential for maintaining optimal performance and safety. By following these steps and using appropriate tools, you can diagnose issues effectively and ensure that all components are functioning as intended. Regular maintenance checks can prevent unexpected failures and extend the life of your golf cart.
Micro switches activate various functions like accelerator pedals, brake lights, and reverse alarms by opening or closing electrical circuits based on mechanical movement.
Signs include lack of response when pressing pedals, malfunctioning brake lights, or failure of reverse alarms to activate.
While some minor repairs are possible (like cleaning contacts), replacing a faulty micro switch is often more reliable for ensuring proper function.
You will need a multimeter, screwdrivers, wire cutters/strippers, safety goggles, and electrical tape for repairs.
Regular checks during maintenance intervals are recommended, especially if you notice performance issues with your golf cart.
