Micro switches are essential components in various devices, ranging from household appliances to industrial machinery. They serve as triggers that activate when a specific physical movement occurs. However, like any mechanical part, micro switches can fail or become faulty over time. This article will provide a detailed guide on how to test a micro switch effectively, ensuring that your devices operate smoothly.
Micro switches, also known as snap-action switches, are designed to change their state (open or closed) in response to a small amount of movement. They are widely used due to their reliability and precision. Common applications include:
- Home appliances: microwaves, washing machines, and refrigerators.
- Industrial equipment: conveyor belts and safety systems.
- Consumer electronics: gaming controllers and vending machines.
Micro switches typically consist of three terminals: common (COM), normally open (NO), and normally closed (NC). The configuration of these terminals allows the switch to either complete or break a circuit based on its mechanical actuation.
Testing a micro switch is crucial for several reasons:
- Preventing Equipment Failure: A faulty micro switch can lead to complete device failure.
- Ensuring Safety: In devices like microwaves, a malfunctioning switch can pose safety hazards.
- Maintaining Efficiency: Regular testing helps maintain the efficiency of machinery and appliances.
Before testing, it's essential to recognize the signs of a faulty micro switch:
- Intermittent Operation: The device may work sporadically.
- Failure to Activate: The device does not respond when the switch is engaged.
- Physical Damage: Look for cracks or burn marks on the switch.
To test a micro switch effectively, you will need the following tools:
- Multimeter: For measuring continuity and resistance.
- Screwdriver: To remove the switch if necessary.
- Cleaning Supplies: Compressed air or a soft brush for cleaning.
Before beginning any testing, ensure that the power supply to the device is turned off. This prevents electrical shock and protects both you and the equipment.
If necessary, remove the micro switch from its housing using a screwdriver. Take care not to damage any surrounding components. It's important to document or remember how the switch is connected, as this will aid in reinstallation.
Conduct a visual inspection of the micro switch. Look for:
- Cracks or chips in the casing.
- Burn marks indicating overheating.
- Loose or damaged wires.
A thorough inspection can often reveal issues that may not be detectable through electrical testing alone.

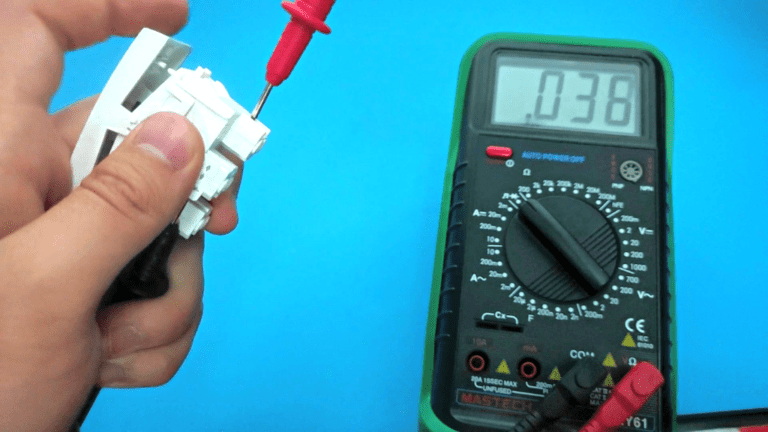

Set your multimeter to measure continuity (or resistance). This setting allows you to check whether the switch is functioning correctly. Familiarize yourself with your multimeter's settings if you're unsure how it operates.

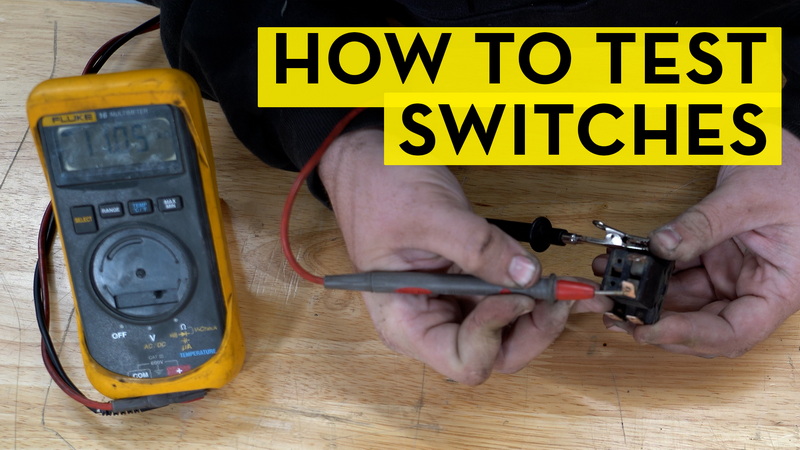

1. Connect one probe of the multimeter to one terminal of the micro switch and the other probe to the second terminal.
2. Press the actuator (the button or lever) on the micro switch while observing the multimeter reading.
- If the multimeter beeps or shows zero resistance when pressed, the switch is functioning correctly.
- If there is no change (the meter reads infinity), the switch may be faulty.

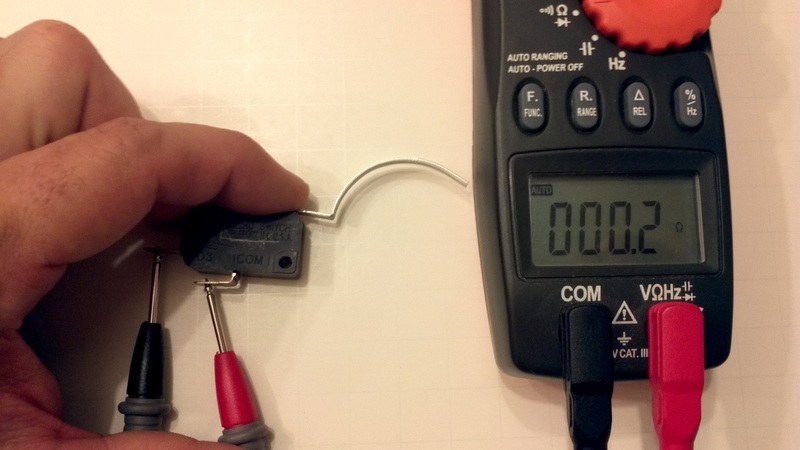

Testing Continuity with Multimeter
Ensure that the actuator aligns correctly with the internal contacts. Misalignment can cause malfunctioning even if the switch appears intact. Adjustments may be necessary if you notice any discrepancies during your inspection.
Dirt and debris can accumulate on contacts, preventing proper operation. Use compressed air or a soft brush to clean any buildup. Avoid using liquid cleaners unless specified by the manufacturer, as they can leave residues that might affect performance.
Understanding common issues can help in troubleshooting:
- Worn Contacts: Over time, contacts can wear out and fail to make a proper connection. This wear can result from frequent actuation cycles.
- Corrosion: Exposure to moisture can lead to corrosion, affecting performance. Corrosion can cause increased resistance in electrical connections, leading to intermittent operation or complete failure.
- Mechanical Failure: The internal mechanism may fail due to wear and tear. Mechanical parts may become stuck due to dirt accumulation or physical damage.
Micro switches come in various types, including:
- Single Pole Single Throw (SPST): The simplest form with one input and one output.
- Single Pole Double Throw (SPDT): Allows switching between two outputs.
Testing procedures may vary slightly depending on the type of micro switch you are dealing with. For instance, SPDT switches will require checking both output states during testing.
If your tests indicate that a micro switch is faulty, replacing it is straightforward:
1. Purchase an Appropriate Replacement: Ensure you get a compatible micro switch based on specifications such as voltage rating and size.
2. Disconnect Power Again: Always ensure power is off before working on electrical components.
3. Remove Old Switch: Carefully disconnect wires from the old switch, noting their positions for reinstallation.
4. Install New Switch: Connect wires to the new micro switch according to your notes and secure it in place.
5. Test Functionality: After installation, restore power and test to ensure everything operates correctly.
Testing a micro switch is an essential maintenance task that ensures your devices operate safely and efficiently. By following this comprehensive guide, you can diagnose issues effectively and prolong the lifespan of your equipment. Remember always to prioritize safety by disconnecting power before performing any tests.
Regular checks not only enhance device reliability but also prevent unexpected breakdowns that could lead to costly repairs or replacements. Understanding how micro switches function and knowing how to test them empowers you as a user or technician, allowing for proactive maintenance rather than reactive fixes.
Signs include intermittent operation, failure to activate, or visible physical damage like cracks or burn marks.
Yes, you can test it while it's still connected by using a multimeter set to continuity mode; however, removing it allows for thorough inspection.
If it fails continuity testing, it's likely defective and should be replaced with a new one.
It's advisable to test them periodically as part of routine maintenance, especially in critical applications where reliability is paramount.
Yes, dirt and debris can prevent proper contact between internal components, leading to malfunctioning switches.
