Wiring a micro switch is a fundamental skill for anyone working with electrical circuits, whether in DIY projects, home automation, or industrial applications. Micro switches are widely used in various devices due to their reliability and versatility. This article will provide a comprehensive guide on how to wire a micro switch, including diagrams, step-by-step instructions, and troubleshooting tips.
A micro switch, also known as a snap-action switch, is a small electromechanical switch that is activated by a physical force. It is commonly used in applications such as door sensors, limit switches, and control panels. The defining feature of a micro switch is its ability to change states with minimal movement, making it ideal for precise control.
Before diving into the wiring process, it's essential to understand the components of a micro switch:
- Actuator: The lever or button that you press to activate the switch.
- Terminals: The points where you connect wires. Typically, there are three terminals: common (COM), normally open (NO), and normally closed (NC).
- Housing: The protective casing that encases the internal mechanisms.
To wire a micro switch, you will need the following tools and materials:
- Micro switch
- Wire stripper
- Screwdriver
- Soldering iron (optional)
- Electrical wires
- Multimeter (for testing)

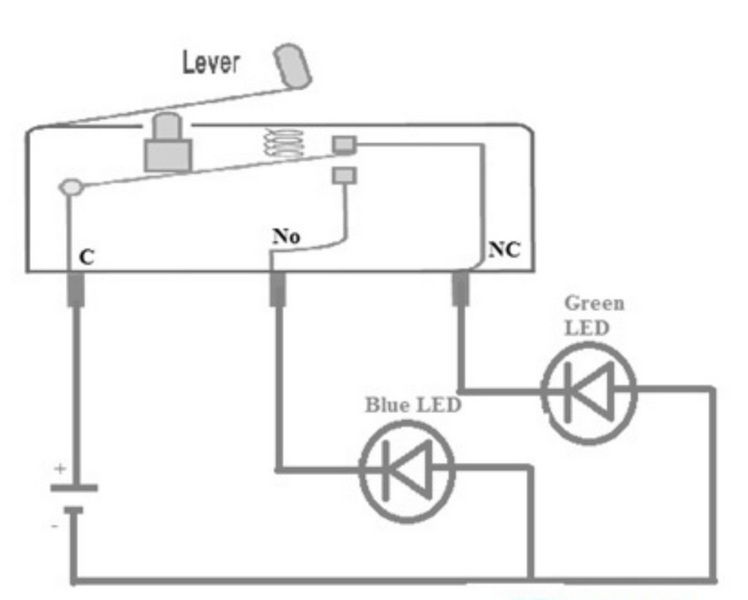

Micro switches typically have three terminals:
- Common (COM): This terminal is connected to the power source.
- Normally Open (NO): This terminal is open when the switch is not activated. It closes when the actuator is pressed.
- Normally Closed (NC): This terminal is closed when the switch is not activated. It opens when the actuator is pressed.
Using a wire stripper, strip about 1/4 inch of insulation from both ends of each wire you will use for connections.

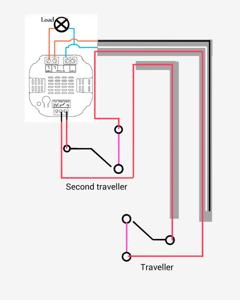

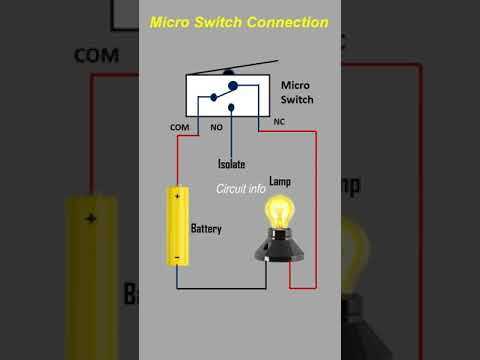

1. Connect the Common Terminal: Connect one wire from your power source to the COM terminal of the micro switch.
2. Connect Normally Open Terminal: If you want the circuit to complete when the switch is pressed, connect another wire from the NO terminal to your device or load.
3. Connect Normally Closed Terminal: If you want the circuit to be active until the switch is pressed, connect another wire from the NC terminal to your device.
Ensure all connections are secure. If using soldering for connections, make sure to heat both the wire and terminal simultaneously for a good bond.
Use a multimeter to test your connections:
- Set your multimeter to continuity mode.
- Check between COM and NO; it should show continuity when the actuator is pressed.
- Check between COM and NC; it should show continuity when the actuator is not pressed.
Micro switches are used in various applications due to their reliability and ease of use:
- Home Appliances: Used in washing machines and microwaves for safety interlocks.
- Automotive: Used in car doors and seatbelt systems.
- Industrial Equipment: Used as limit switches on machinery.
- Consumer Electronics: Found in keyboards and computer mice.
For more complex applications, understanding advanced wiring techniques can be beneficial. Here are some methods:
When integrating multiple micro switches into a circuit, consider whether to wire them in series or parallel:
- Series Wiring: In this configuration, all switches must be activated for current to flow through the circuit. This setup can be useful for safety mechanisms where multiple conditions must be met before an action occurs.
- Parallel Wiring: In this configuration, activating any one of the switches will complete the circuit. This setup is ideal for situations where redundancy is necessary; if one switch fails or is activated, others can still function.
If your micro switch isn't functioning correctly, consider these troubleshooting tips:
- Check Connections: Ensure all wires are securely connected.
- Inspect for Damage: Look for any signs of wear or damage on the switch or wires.
- Test with Multimeter: Use a multimeter to check if the switch activates properly.
1. Switch Not Activating: This can be caused by improper alignment of the actuator or mechanical failure within the switch itself.
2. Intermittent Operation: Loose connections or faulty wiring can lead to intermittent operation; ensure all connections are tight and secure.
3. Overloading: Exceeding the rated voltage or current can damage micro switches; always refer to manufacturer specifications.
Safety should always be your top priority when working with electrical components. Here are some essential safety tips:
- Disconnect Power: Always disconnect power before working on any electrical circuit.
- Use Insulated Tools: Use insulated tools to prevent accidental shocks.
- Wear Safety Gear: Consider wearing safety goggles and gloves when working with electrical components.
Wiring a micro switch can seem daunting at first, but with careful attention to detail and proper techniques, it can be accomplished easily. Understanding how micro switches operate and knowing how to make secure connections will enable you to integrate these switches into various projects effectively. Whether you're working on home automation systems or industrial equipment, mastering micro switch wiring will enhance your skills as an electrician or DIY enthusiast.
Micro switches offer versatility across numerous applications due to their compact size and reliable operation. As technology advances, their integration into smart devices continues to grow, making knowledge about their wiring increasingly valuable. By following this guide and practicing safe wiring techniques, you can confidently work with micro switches in any project.
Micro switches come in various types including SPDT (Single Pole Double Throw), DPDT (Double Pole Double Throw), and momentary action switches.
You can test your micro switch using a multimeter; if it does not show continuity when activated or shows signs of physical damage, it may be faulty.
It's best to use wires rated for your application's voltage and current requirements; typically, 22 AWG or similar gauge wires are suitable for most micro switches.
Micro switches can be mounted using screws or brackets; ensure they are positioned so that their actuators can be easily accessed.
Micro switches can handle various voltages depending on their specifications; common ratings include 5V, 12V, and up to 250V AC/DC.
