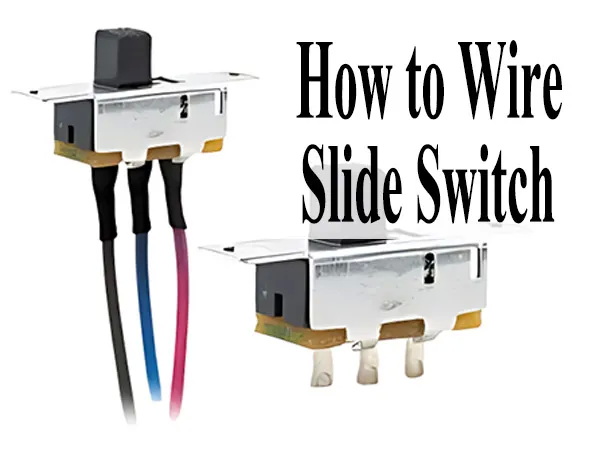

Wiring a slide switch, particularly a Single Pole Double Throw (SPDT) slide switch, is a fundamental skill in electronics that allows you to control circuits effectively. This guide will walk you through the process of wiring an SPDT slide switch, including diagrams and practical applications. By the end of this article, you will have a comprehensive understanding of how to wire an SPDT slide switch and its various uses.

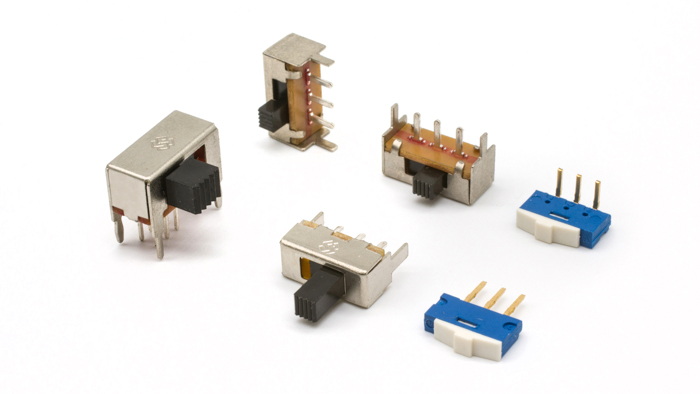

An SPDT (Single Pole Double Throw) slide switch is a type of electrical switch that connects one input terminal to one of two output terminals. This allows for versatile control over electrical circuits, enabling you to choose between two different paths for current flow.
- Three Terminals: One common terminal and two other terminals.
- Two Positions: Allows connection to either of the two output terminals or disconnects both in the center position.
- Versatile Applications: Commonly used in various electronic devices for switching functions.
Before starting the wiring process, ensure you have the following tools on hand:
- Wire Stripper
- Soldering Iron
- Heat Shrink Tubing
- Multimeter
- Needle-nose Pliers
- Screwdriver (if needed)
Follow these steps carefully to wire your SPDT slide switch correctly:
Using a multimeter, identify the common terminal and the two output terminals. The common terminal is usually located in the center. You can also refer to the datasheet of your specific switch model for exact terminal identification.
Connect your power source (e.g., battery or power supply) to the common terminal. This terminal will serve as the input for your circuit. Ensure that the polarity is correct—positive to the common terminal if using a DC source.
Connect one output terminal to the first device you wish to control (e.g., an LED or motor). Connect the second output terminal to another device or leave it unconnected if not needed. For example, if you're controlling two LEDs, connect each LED's anode to each output terminal and their cathodes together to ground.
Before powering up your circuit, use a multimeter to check for continuity between the common terminal and each output terminal when toggled. This ensures that your connections are correct and prevents potential short circuits.
Once everything is connected properly, power up your circuit. Slide the switch back and forth to see if it successfully toggles between your connected devices. If one device turns on while the other remains off as expected, your wiring is correct.
SPDT slide switches are widely used in various applications, including:
- Toys: To control different functions or modes. For instance, many remote-controlled cars use SPDT switches to toggle between forward and reverse motion.
- Flashlights: For turning on/off or selecting different brightness levels. Some flashlights feature an SPDT switch that allows users to choose between high and low brightness settings.
- Consumer Electronics: Such as radios and music players for mode selection. An SPDT switch can allow users to select between AM/FM bands or toggle between different audio sources.
- Home Automation: In smart home systems, SPDT switches can be used for controlling lights or appliances from multiple locations.
To illustrate how an SPDT slide switch works, let's look at a simple example using LEDs.
- 1x SPDT Slide Switch
- 2x LEDs (different colors)
- Resistors (appropriate values for LEDs)
- Breadboard and jumper wires
- Power source (e.g., battery)
- Connect the common terminal of the SPDT switch to a power source (e.g., +5V).
- Connect one output terminal to the anode of one LED (with a resistor in series).
- Connect the other output terminal to another LED (with a resistor).
- Connect both cathodes of LEDs to ground.
- When you slide the switch towards one side, one LED lights up; sliding it towards the other side lights up the second LED. This simple setup demonstrates how easily you can control multiple outputs with just one input.
For more complex applications, consider these advanced wiring techniques:
You can wire multiple SPDT switches in series or parallel configurations for more intricate control schemes. For example, using two switches can allow you to control a single device from two different locations.

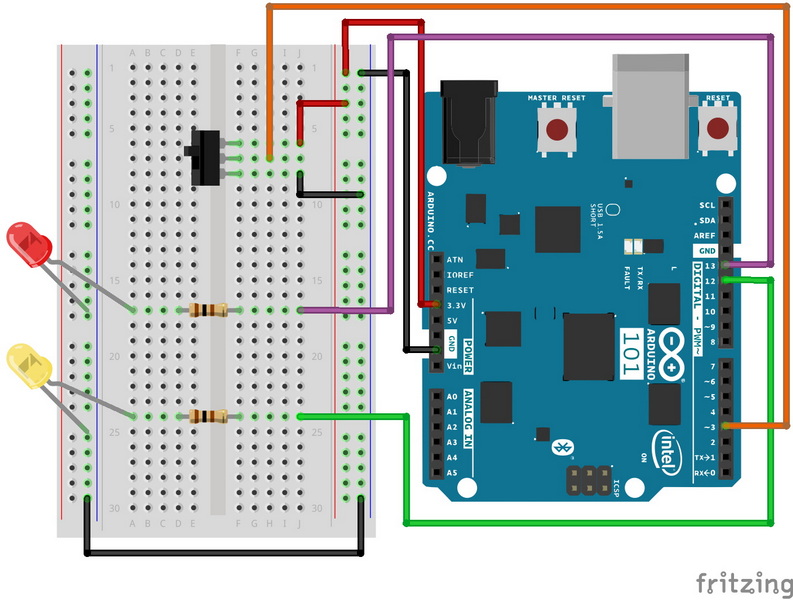

SPDT switches can be integrated into microcontroller projects (like Arduino) for digital input reading. You can connect one output terminal of the switch directly to a GPIO pin on your microcontroller and use it in conjunction with pull-up resistors for reliable signal detection.
In some applications, particularly when dealing with inductive loads like motors or relays, adding diodes across your load can help protect against back EMF that could damage your circuit components when switching states.
When working with SPDT switches, you may encounter some common issues:
1. No Response from Devices: Check all connections for continuity using a multimeter. Ensure that power is reaching both devices.
2. Intermittent Operation: This could be due to poor contact within the switch itself or loose connections. Try cleaning contacts or replacing faulty components.
3. Incorrect Functionality: If toggling does not yield expected results (e.g., both devices turning on), double-check your wiring against your schematic diagram.
Wiring an SPDT slide switch is a straightforward process that can greatly enhance your electronic projects by providing versatile control over circuits. With this guide, you should now be able to wire an SPDT slide switch effectively and understand its applications in various devices. Whether you're working on simple hobby projects or more complex systems, mastering this skill will serve you well in your electronics journey.
An SPDT slide switch is used for controlling two different circuits with one input, allowing users to toggle between different functionalities easily.
You can use a multimeter set to continuity mode; when sliding the switch, check which pin connects with others—this pin is typically designated as common.
Yes, you can connect an SPDT switch to microcontrollers like Arduino by connecting its common pin to a digital input pin and using pull-up resistors for proper signal reading.
Connecting devices with different voltage requirements can damage them; ensure all connected devices operate at compatible voltage levels.
Yes, alternatives include DPST (Double Pole Single Throw) switches for controlling multiple circuits simultaneously or DPDT (Double Pole Double Throw) switches for more complex configurations.
