Push switches, also known as push button switches, are ubiquitous components in electronic devices, control panels, and various applications. They serve a fundamental role in controlling electrical circuits by either making or breaking connections when pressed. This article delves into the functionality, types, applications, and operational principles of push switches, providing a comprehensive understanding of this essential component.
A push switch is a mechanical device that controls an electrical circuit. When the button is pressed, the switch either completes (makes) or interrupts (breaks) the electrical connection. The operation can be momentary or latching, depending on the design of the switch.
- Momentary Push Switches: These switches only maintain their state while being pressed. Once released, they revert to their default position. Common examples include doorbells and keyboard keys.
- Latching Push Switches: These switches remain in their last state after being pressed. They require another press to toggle back to the original state, making them suitable for applications like light switches.
Push switches can be categorized into several types based on their operation and design:
- Normally Open (NO): This type allows current to flow only when the button is pressed. It is commonly used in devices like calculators and doorbells.
- Normally Closed (NC): This type allows current to flow until the button is pressed, which interrupts the circuit. It is often used in safety applications like alarm systems.
| Type | Functionality | Examples |
|---|---|---|
| Normally Open (NO) | Completes circuit when pressed | Doorbells, computer power buttons |
| Normally Closed (NC) | Breaks circuit when pressed | Alarm systems, fridge lights |

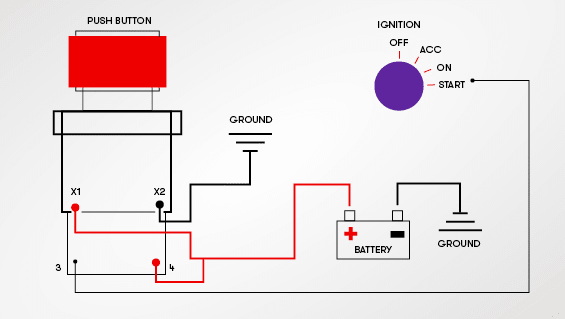

The operation of a push switch involves a simple mechanism:

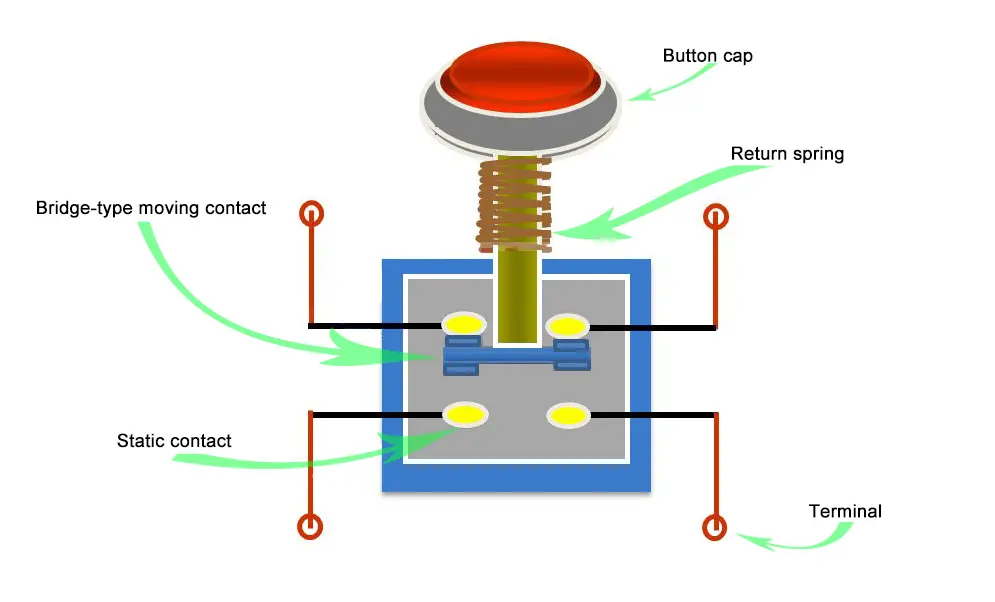

1. Actuator: The part that the user presses.
2. Contacts: Metal pieces that either touch or separate to complete or break the circuit.
3. Spring Mechanism: Returns the actuator to its original position after being released.
When the actuator is pressed, it moves the contacts together (in NO switches) or apart (in NC switches), allowing or stopping the flow of electricity.
Push switches are utilized in various fields due to their versatility:
- Consumer Electronics: Used in remote controls, televisions, and appliances.
- Industrial Equipment: Found in machinery for operational controls.
- Automotive: Used for functions like horn activation and window controls.
- Medical Devices: Employed in equipment requiring user interaction for operation.
Push switches offer several benefits:
- Simplicity: Easy to operate with a straightforward design.
- Reliability: Robust mechanisms that provide consistent performance.
- Versatility: Applicable across numerous devices and industries.
Despite their advantages, there are some limitations:
- Wear and Tear: Mechanical parts can wear out over time with frequent use.
- Limited Control: Momentary switches may not be suitable for applications requiring sustained operation.
When selecting a push switch for a specific application, consider:
- Type of Operation: Determine if momentary or latching functionality is needed.
- Current Rating: Ensure the switch can handle the electrical load.
- Mounting Style: Decide between panel mount or PCB mount based on design requirements.
In summary, push switches are essential components in modern electronics that enable users to control circuits effectively. Understanding their types, workings, and applications allows for better selection and implementation in various devices. Whether used in everyday consumer products or complex industrial machinery, push switches play a crucial role in ensuring functionality and user interaction.
Momentary push button switches only maintain their state while being pressed, while latching push button switches remain in their last state until pressed again.
Push button switches operate by pressing an actuator that moves contacts together or apart to complete or break an electrical circuit.
Push buttons are used in consumer electronics like remote controls, industrial equipment for operational controls, automotive applications for various functions, and medical devices.
Normally open (NO) buttons complete a circuit when pressed, while normally closed (NC) buttons break a circuit when pressed.
Consider factors such as type of operation (momentary vs latching), current rating for electrical load handling, and mounting style based on your design needs.
