Shift lever micro switches are essential components in modern vehicles and machinery, playing a critical role in the operation and safety of these systems. These small yet powerful switches are activated by the movement of the shift lever, detecting its position and triggering various functions within the vehicle or equipment. This article will explore the functions, importance, and applications of shift lever micro switches, as well as how to select the right one for your needs.

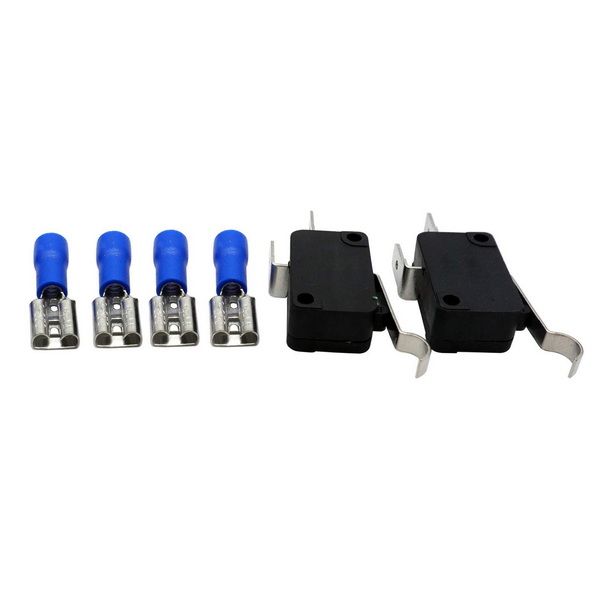

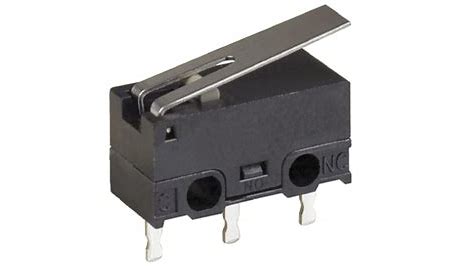

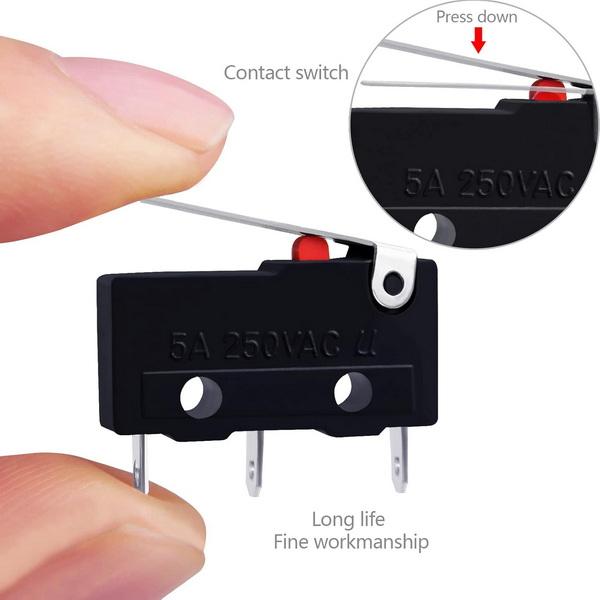

Shift lever micro switches are designed to provide precise control over vehicle transmission systems. They are typically located near the shift lever and operate through a snap-action mechanism, which allows them to quickly complete or break an electrical circuit when activated. This functionality is crucial for ensuring that various systems within the vehicle respond accurately to the driver's commands.
When a driver moves the shift lever from one position to another, such as from "Park" to "Drive," the micro switch is activated. This activation sends a signal to the vehicle's transmission control module (TCM), which then engages or disengages gears accordingly. The quick response time of micro switches ensures that gear shifts occur smoothly and without delay.
The basic operation can be summarized as follows:
- Activation: The driver moves the shift lever.
- Signal Transmission: The micro switch detects this movement and sends an electrical signal to the TCM.
- Gear Engagement: The TCM processes this signal and engages the appropriate gear.
This process happens almost instantaneously, allowing for seamless transitions between different driving modes.
- Transmission Shifting: The primary function of a shift lever micro switch is to facilitate smooth transmission shifting by sending signals to the TCM.
- Reverse Light Activation: When the shift lever is placed in reverse, the micro switch activates the reverse lights, alerting others that the vehicle is backing up.
- Safety Mechanisms: In many vehicles, these switches contribute to safety features by preventing gear shifts unless certain conditions are met (e.g., brake pedal depressed).
- Park Lock Mechanism: Many vehicles employ a park lock mechanism that prevents shifting out of "Park" unless the brake pedal is pressed. The micro switch plays a critical role in this safety feature.
Shift lever micro switches are vital for several reasons:
- Precision: They provide accurate detection of gear positions, which helps prevent accidental shifts that could lead to accidents.
- Reliability: High-quality micro switches are designed for durability and can withstand harsh operating conditions, ensuring long-term functionality.
- Safety: By ensuring that systems only operate under safe conditions, these switches help protect both the driver and passengers.
- User Experience: Smooth gear transitions enhance overall driving comfort and responsiveness, contributing to a more enjoyable driving experience.
Shift lever micro switches are used in various applications beyond standard vehicles:
- Heavy Machinery: In cranes and forklifts, these switches activate safety mechanisms that prevent movement when operators are not positioned correctly.
- Motorcycles: Similar functions apply in motorcycles where gear position detection is crucial for safe operation.
- Automated Systems: In industrial automation, these switches help control machinery based on operator input.
- Electric Vehicles (EVs): With the rise of electric vehicles, shift lever micro switches have adapted to work with advanced electronic transmission systems, ensuring efficient power delivery and energy management.
Selecting an appropriate shift lever micro switch involves considering several factors:
Different vehicles have unique requirements. Ensure that the micro switch you choose is compatible with your specific application. For instance, heavy-duty trucks may require more robust switches compared to standard passenger vehicles due to their operational demands.
Consider environmental factors like temperature extremes and moisture exposure. Some switches are designed specifically for harsh conditions; for example, marine applications might require waterproof or corrosion-resistant features.
Pay attention to voltage ratings and current capacities of the micro switch. Using a switch rated for lower voltage or current than required can lead to failure or safety hazards.
Opt for high-quality switches that can withstand wear and tear over time. This choice will reduce maintenance costs and enhance safety. Look for products with certifications from recognized standards organizations that ensure quality and reliability.
Research manufacturers known for producing reliable automotive components. Reading reviews and seeking recommendations can help identify trustworthy brands that offer quality products backed by warranties or guarantees.

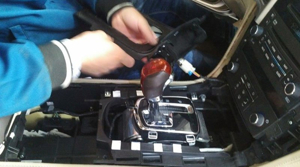

Proper installation and maintenance of shift lever micro switches are crucial for their longevity and performance:
- Ensure compatibility with your vehicle's electrical system.
- Follow manufacturer instructions carefully during installation to avoid damaging components.
- Use appropriate tools to secure connections without causing undue strain on wires or connectors.
- Inspect connections regularly for signs of wear or corrosion.
- Clean around the switch area to prevent debris buildup that could interfere with operation.
- Test functionality periodically by checking if gear shifts correspond correctly with lever movements.
Despite their reliability, issues can arise with shift lever micro switches over time:
- Erratic shifting behavior or inability to shift gears.
- Reverse lights not activating when in reverse position.
- Warning lights on your dashboard indicating transmission issues or malfunctions.
1. Check wiring connections for loose or damaged wires.
2. Use a multimeter to test continuity across the switch terminals when activated.
3. Replace any faulty components based on diagnostic results from testing equipment or professional assessments.
In summary, shift lever micro switches play a crucial role in modern vehicles and machinery by facilitating smooth operations and enhancing safety features. Their ability to detect gear positions accurately ensures that drivers can shift gears without fear of malfunction or accident. When selecting a micro switch, it is essential to consider compatibility with your vehicle or equipment, environmental conditions, electrical specifications, reliability, and manufacturer reputation. Understanding these components can significantly improve both performance and safety in automotive applications while enhancing user experience through smooth gear transitions.
A failure can lead to issues such as incorrect gear shifting, malfunctioning reverse lights, or even safety hazards if the vehicle cannot detect its position properly.
Signs include erratic shifting behavior, failure of reverse lights to activate, or warning lights on your dashboard indicating transmission issues.
No, they vary by design, specifications, and compatibility with different vehicles or machinery types.
Yes, but it requires some mechanical knowledge and tools; it's advisable to consult your vehicle's manual or seek professional help if unsure.
Regular inspections for wear and tear can help; ensure connections are secure and clean any debris around the switch area to prevent malfunctions.
