A micro switch, also known as a miniature snap-action switch, is a small electrical switch that is activated by minimal mechanical force. This switch is designed to operate quickly and reliably, making it an essential component in various applications ranging from household appliances to industrial machinery. The unique design of micro switches allows for a small movement at the actuator button to produce a significant movement at the electrical contacts, ensuring high-speed switching regardless of the actuation speed.
Micro switches are characterized by their mechanical action and electrical conductivity. They typically consist of:

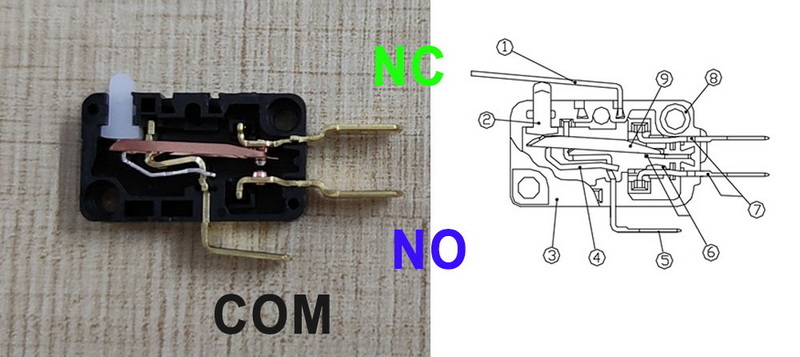

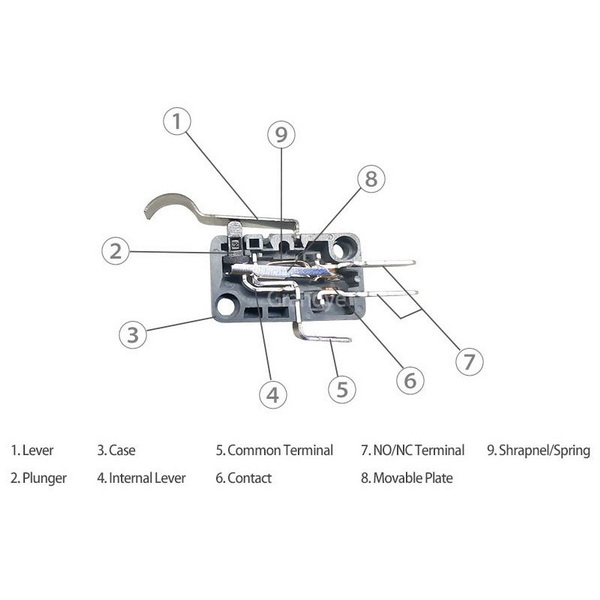

- Actuator: A movable lever or button that initiates the switch action.
- Fixed Contact Point: A stationary point that completes or breaks the electrical circuit when the actuator moves.
- Spring Mechanism: This allows the actuator to return to its original position after being pressed.
The operation of a micro switch can be summarized in two states:
1. Closed Position: When the actuator is pressed, the movable contact touches the fixed contact, allowing current to flow through the circuit.
2. Open Position: When the actuator is released, the spring mechanism returns it to its original position, breaking the connection and stopping the current flow.
- Durability: Micro switches can endure millions of cycles (often rated for over 1 million operations), making them highly reliable for long-term use.
- Sensitivity: They require very little force to activate, which makes them suitable for applications where precision is crucial.
- Versatility: Available in various designs and configurations, micro switches can be used in numerous applications including:
- Door interlocks in appliances like microwave ovens
- Safety switches in elevators
- Detection systems in vending machines
- Control systems in industrial machinery
Micro switches are widely used across different sectors due to their reliability and efficiency. Some common applications include:
- Household Appliances: Used in devices such as microwaves and washing machines to ensure safety and functionality.
- Industrial Equipment: Employed in machinery for safety interlocks and operational controls.
- Automotive Systems: Utilized in vehicles for functions like door sensors and ignition systems.
- Consumer Electronics: Found in devices such as computer mice and remote controls.
Micro switches come in various types based on their design and application:
- Plunger Type: Activated by pressing down on a plunger, commonly used in simple on/off applications.
- Lever Type: Features a lever arm that can be activated with minimal force, ideal for more complex machinery.
- Roller Type: Uses a roller mechanism to reduce friction and improve activation sensitivity, often found in conveyor systems.
- Toggle Type: These switches maintain their position until manually changed, suitable for applications requiring a stable state until intentionally altered.
The operation of a micro switch can be explained through its internal mechanism:
1. When an external force is applied to the actuator (e.g., pressing a button), it moves slightly.
2. This movement causes the internal spring-loaded mechanism to snap into action.
3. The movable contact then connects with either the normally open (NO) or normally closed (NC) terminal, completing or breaking the circuit.
4. Once the external force is removed, the spring returns the actuator to its original position, reversing the electrical state.
The benefits of incorporating micro switches into systems include:
- Cost-Effectiveness: They are relatively inexpensive compared to other switch types while providing reliable performance over time.
- Compact Size: Their small form factor allows for easy integration into various devices without taking up much space.
- High Precision: The ability to operate with minimal mechanical force ensures accurate control in sensitive applications.
When selecting a micro switch for your application, consider these factors:
- Current Rating: Ensure that the switch can handle the required load without failure.
- Actuator Type: Choose an actuator that fits your application needs—whether it's a button, lever, or roller type.
- Environmental Conditions: Consider factors such as temperature, moisture, and dust exposure when selecting a switch for specific environments.
Proper installation and maintenance are crucial for ensuring optimal performance of micro switches. Here are some guidelines:
1. Mounting Orientation: Ensure that micro switches are mounted according to manufacturer specifications. Incorrect orientation can affect performance.
2. Alignment: The actuator should be aligned properly with the mechanism it interacts with to ensure reliable operation.
3. Secure Connections: Make sure all electrical connections are secure to prevent intermittent failures or short circuits.
1. Regular Inspection: Periodically check micro switches for signs of wear or damage. Look for cracks or corrosion on contacts.
2. Cleanliness: Keep areas around micro switches clean to prevent dust or debris from interfering with their operation.
3. Testing Functionality: Use multimeters or continuity testers to ensure that micro switches are functioning correctly during routine checks.
As technology advances, so does the design and functionality of micro switches. Some emerging trends include:
- Smart Micro Switches: Integration with IoT technology allows for remote monitoring and control capabilities, enhancing automation processes across industries.
- Enhanced Durability Materials: The use of advanced materials that resist wear and environmental factors is becoming more common, extending lifespan even further.
- Miniaturization: Ongoing research aims at reducing size while maintaining performance levels, making them suitable for even more compact devices.
In summary, micro switches are compact yet powerful components that play a crucial role in modern technology. Their ability to operate with minimal force while providing reliable performance makes them indispensable across various industries. Understanding their functionality, types, applications, installation practices, and future trends allows for better integration into systems requiring precise control and safety measures. As industries evolve towards automation and smart technologies, micro switches will continue to adapt and remain relevant components critical for operational efficiency.
Micro switches are used in various applications such as household appliances (e.g., microwaves), industrial machinery for safety interlocks, automotive systems for door sensors, and consumer electronics like remote controls.
A micro switch operates by using a small amount of mechanical force applied to an actuator which then snaps an internal mechanism to either complete or break an electrical circuit.
Common types include plunger type, lever type, roller type, and toggle type. Each type serves different purposes based on design requirements and application needs.
Micro switches are designed for durability and can last over one million cycles depending on their usage conditions and load ratings.
While some micro switches are designed with protective casings for outdoor use, it's essential to select models specifically rated for environmental exposure if used outside.
