A micro switch, also known as a miniature snap-action switch, is a small but powerful electrical component that operates with minimal physical force. These switches are designed to make or break an electrical connection quickly and reliably, making them essential in various applications ranging from household appliances to industrial machinery.
Micro switches are characterized by their unique mechanism, which allows for rapid switching action. This is achieved through a tipping-point mechanism, where a small movement at the actuator lever results in a significant change in the state of the electrical contacts. This feature ensures that micro switches can operate effectively even in demanding environments.

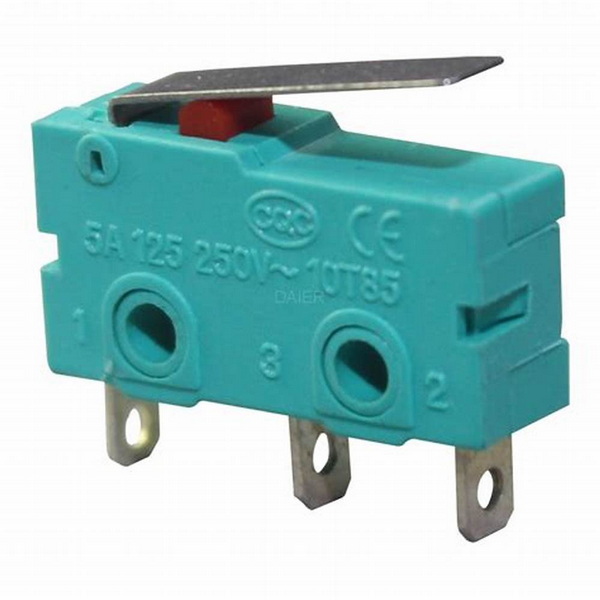

The operation of a micro switch is based on a simple yet effective principle. When an external force is applied to the actuator lever, it compresses an internal spring. This action causes the contacts within the switch to snap open or closed rapidly. The switch typically has three terminals: Common (C), Normally Open (NO), and Normally Closed (NC).
- Common (C): This terminal is where the power supply connects.
- Normally Open (NO): In this state, the circuit is open until the switch is actuated.
- Normally Closed (NC): This terminal allows current to flow until the switch is actuated.
When the actuator lever is pressed, the internal mechanism of the micro switch ensures that the transition between states happens almost instantaneously, producing a distinct "click" sound that signifies the change. This audible feedback is not only satisfying but also serves as an important indicator of operation.
Micro switches come in various types and configurations to suit different applications. Here are some common types:
- Basic Micro Switches: Standard dimensions suitable for general applications.
- Small-sized Micro Switches: More compact versions for limited space scenarios.
- Waterproof Micro Switches: Designed to operate in wet environments.
- Dust-proof Micro Switches: Prevent dust and particles from entering the internals.
- High-temperature Resistant Micro Switches: Suitable for extreme temperature conditions.
- High-current Micro Switches: Capable of handling larger currents for specific applications.
- Sealed Micro Switches: Designed to resist environmental contaminants and are ideal for harsh conditions.
Each type has its own unique specifications and features, allowing engineers and designers to choose the right micro switch for their specific needs.
Micro switches are widely used across different industries due to their reliability and precision. Some common applications include:
- Household Appliances: Found in devices like microwaves, washing machines, and refrigerators where they ensure safety and proper functioning. For example, in washing machines, micro switches can detect whether the door is closed before allowing water to fill.
- Automotive Industry: Used in car door locks, seatbelt sensors, and brake light switches to enhance safety features. They play a crucial role in ensuring that systems only operate when it is safe to do so.
- Industrial Automation: Employed in conveyor systems, limit switches, and safety interlocks to ensure efficient operations. In manufacturing settings, micro switches can signal when machinery reaches specific positions or when safety guards are closed.
- Medical Devices: Integral in equipment such as infusion pumps and patient monitors for precise control. In medical settings, reliability is paramount; thus, micro switches are often used in critical applications where failure could have serious consequences.
- Consumer Electronics: Found in devices like computer mice and keyboards where they provide tactile feedback for user interactions.
Micro switches offer several benefits that make them ideal for various applications:
- High Precision: They provide accurate switching with minimal actuation force. This precision allows for more sensitive applications where exact control is necessary.
- Durability: Designed to withstand millions of operations, ensuring long-lasting performance. Many micro switches can operate reliably even after extensive use without significant degradation in performance.
- Compact Size: Their small form factor allows easy integration into devices with limited space. This compactness makes them suitable for modern electronics that require miniaturization.
- Quick Response Time: They react rapidly to applied forces, making them suitable for safety-critical applications. The fast switching action helps prevent accidents by ensuring timely responses from connected systems.
Despite their advantages, micro switches have some limitations:
- Limited Load Capacity: They may not handle high currents or voltages effectively. Users must ensure that they select a micro switch rated appropriately for their application's electrical requirements.
- Sensitivity to Environmental Conditions: Without proper protection, they can be affected by dust, moisture, and extreme temperatures. While there are sealed options available, many standard micro switches may require additional housing or protection when used in harsh environments.
To ensure optimal performance and longevity of micro switches, consider these maintenance tips:
1. Keep Clean: Regularly clean the switch surface to prevent dust accumulation. Dust can interfere with the mechanical parts inside the switch and affect its operation.
2. Avoid Harsh Environments: Do not use micro switches in explosive or highly corrosive environments unless specifically designed for such conditions.
3. Inspect Contacts Regularly: Check for wear and ensure proper functionality of contact parts. Signs of wear may indicate that it's time to replace the switch before it fails completely.
4. Monitor Voltage and Current: Regular checks can prevent damage from overloads. Using a multimeter can help ensure that the switch operates within its specified limits.
5. Periodic Maintenance: Conduct routine inspections every few months to identify potential issues early on. Keeping records of maintenance activities can help track performance over time.
6. Test Actuation Mechanism: Periodically test the actuator mechanism to ensure it operates smoothly without sticking or excessive force required for actuation.
7. Document Usage Conditions: Keeping track of how often and under what conditions each switch is used can help predict when maintenance or replacement might be necessary.
As technology advances, so do micro switches. Recent innovations include:
- Smart Micro Switches: These incorporate sensors and connectivity features allowing them to communicate with other devices or systems via IoT technology. This capability enhances automation processes by providing real-time data on operational status.
- Enhanced Durability Materials: New materials are being developed that improve resistance against environmental factors such as moisture and dust while maintaining lightweight properties.
- Miniaturization Techniques: Ongoing research aims at further reducing size without compromising performance, enabling even more compact designs suitable for modern electronic devices.
Micro switches are versatile components that play a crucial role in modern technology. Their ability to provide precise control and rapid response makes them indispensable in various applications across industries such as automotive, industrial automation, consumer electronics, and medical devices. Understanding their operation, types, advantages, disadvantages, maintenance requirements, and recent innovations can help users make informed decisions when selecting micro switches for their projects or products.
In summary, whether you are designing an appliance or developing an industrial machine, choosing the right type of micro switch will significantly impact functionality and reliability. As technology continues to evolve, so too will the capabilities of these small yet powerful devices—ensuring they remain at the forefront of innovation across multiple sectors.
Micro switches are used in many applications including household appliances like microwaves and washing machines, automotive systems for safety features, industrial automation for machinery control, and medical devices for precise operation.
Micro switches operate with minimal physical force and provide rapid actuation through a snapping mechanism. They are more reliable for precise control compared to regular switches which may require more force and may not have the same level of precision.
Yes, manufacturers offer customization options for micro switches including different actuator types, contact configurations, and operating forces tailored to specific application needs.
Micro switches are designed to endure millions of cycles; their lifespan depends on usage frequency and environmental conditions but generally ranges from several years to decades under normal operating conditions.
Regular cleaning to remove dust, inspection of contact parts for wear, monitoring voltage/current levels, and periodic maintenance checks every few months are recommended to ensure reliable operation.
