When working with Arduino projects, slide switches are commonly used to control the flow of electricity in a circuit. Understanding how to properly connect and utilize these switches is essential for any maker or hobbyist. This article will explore the wiring and functionality of slide switches in Arduino projects, focusing on which pin is designated for power.
A slide switch is a mechanical device that allows or interrupts the flow of current by sliding its lever. It typically has three pins: one common pin and two outer pins. Depending on the position of the switch, it connects the common pin to one of the outer pins, effectively controlling the circuit's state.
- Common Pin (Middle Pin): This pin is connected to either of the outer pins based on the switch's position.
- Outer Pins: These pins connect to either ground or power (VCC) depending on how you configure your circuit.
There are various types of slide switches, but the most common ones used in Arduino projects are:
- Single Pole Single Throw (SPST): A simple on/off switch.
- Single Pole Double Throw (SPDT): Can connect one input to one of two outputs.
- Double Pole Double Throw (DPDT): Can control two circuits simultaneously.
In this article, we will focus primarily on SPDT switches, which are widely used due to their versatility.
To effectively use a slide switch with an Arduino board, follow these steps:
1. Components Needed:
- Arduino Uno board
- Slide switch (SPDT)
- Resistor (typically 10kΩ)
- LED
- Breadboard
- Connecting wires
2. Wiring Diagram:

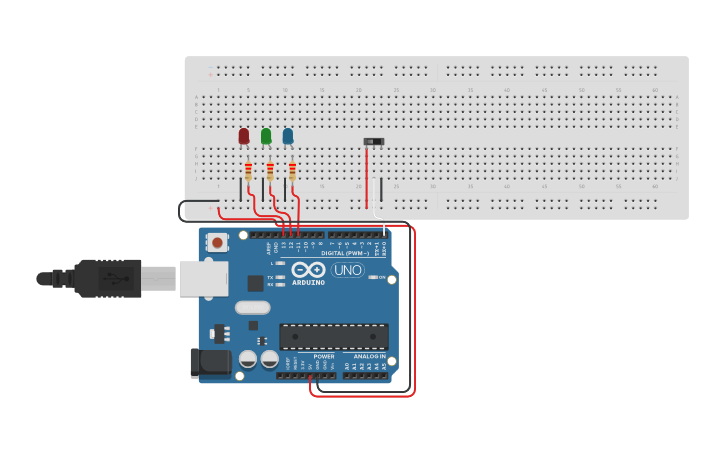

Below is a simple schematic for connecting a slide switch to an Arduino:
3. Connections:
- Connect the middle pin of the slide switch to a digital pin on your Arduino (e.g., pin 12).
- Connect one of the outer pins to ground.
- Connect the other outer pin to VCC (5V).
- Optionally, connect an LED to another digital pin (e.g., pin 6) with a current-limiting resistor.
- When you slide the switch to one side, it connects the middle pin to one of the outer pins, allowing current to flow.
- The `INPUT_PULLUP` mode enables an internal resistor that keeps the pin HIGH when not pressed. When you slide the switch, it connects to ground, making it LOW.
- The code reads this state and turns on or off an LED based on whether the switch is in the ON or OFF position.
Slide switches can be used in various applications:
- Power Control: To turn devices on or off without needing complex circuitry.
- Mode Selection: To toggle between different modes in a project.
- User Input: As a simple interface for user commands.
Imagine building a robot that can operate in different modes such as "Manual" and "Automatic". By integrating slide switches, users can easily toggle between these modes without needing complex software interfaces. For instance, you could use two SPDT switches where each position selects a different operational mode.
In audio or communication circuits, slide switches can route signals between different pathways. This is particularly useful in audio mixing boards or communication devices where multiple input sources need to be selected. For example, using a DPDT slide switch allows seamless switching between different audio sources without interrupting playback.
To ensure reliable operation and longevity when using slide switches in your projects, consider these best practices:
- Debouncing: Mechanical switches can produce noise when toggled. Implementing debouncing techniques in your code can help eliminate false readings caused by this noise.
- Proper Ratings: Ensure that your slide switch is rated for the voltage and current levels you plan to use in your circuit. Using under-rated components can lead to failure or damage.
- Secure Connections: Use breadboards or solder connections that are secure and reliable to prevent intermittent connections during operation.
If your slide switch isn't functioning as expected, consider these troubleshooting tips:
- Ensure all connections are secure and correctly wired according to your diagram.
- Verify that you're using `INPUT_PULLUP` mode for proper functionality.
- Test your components individually (like LEDs and resistors) to ensure they're working correctly.
You can expand your project by incorporating multiple slide switches for more complex functionalities. For instance:
- Multi-mode Devices: Create devices that require multiple operational modes by using several SPDT switches. Each position could correspond to different settings or behaviors within your project.
- Input Selection: In audio applications or data acquisition systems where you need user input from various sources, multiple switches can allow users to select which input they want active at any given time.
Slide switches can also be integrated with other components like sensors and displays:
- Sensor Control: Use slide switches alongside sensors such as temperature sensors or light sensors where users can manually override automatic settings.
- User Interface Design: Incorporate LCD displays that show which mode is currently selected based on the position of the slide switch. This provides immediate feedback for users interacting with your device.
When selecting a slide switch for your project:
- Size and Form Factor: Ensure that the physical size fits within your project's design constraints.
- Electrical Ratings: Check both voltage and current ratings; ensure they match your application needs without exceeding specifications.
- Mechanical Durability: Consider how often users will interact with it; choose high-quality switches designed for frequent use if necessary.
While working with electrical components like slide switches:
- Always ensure power is disconnected before making adjustments or wiring changes.
- Be cautious about short circuits; double-check connections before powering up your circuit.
Understanding how to wire and use slide switches with Arduino can greatly enhance your projects. By knowing which pin is power and how to read its state, you can create interactive and versatile electronic devices. Whether you're turning LEDs on and off or selecting different modes in your project, mastering slide switches will open up new possibilities in your electronics journey.
A slide switch is a mechanical device that opens or closes an electrical circuit by sliding its lever from one position to another.
Connect the middle pin of the slide switch to a digital input pin on Arduino, one outer pin to ground, and another outer pin to VCC (5V).
`INPUT_PULLUP` enables an internal pull-up resistor on an input pin, keeping it HIGH when not connected and allowing it to read LOW when connected to ground.
Yes! By using multiple switches or configuring them with different logic states, you can create various functions like mode selection or power control.
Check your wiring connections, ensure your components are functioning correctly, and verify that your code is uploaded properly without errors.
