Micro switches are widely used in various electronic devices due to their reliability and compact size. One interesting aspect of micro switches is the presence of capacitors in their circuitry. This article explores the reasons behind incorporating capacitors in micro switches, their functions, and the implications for electronic design.

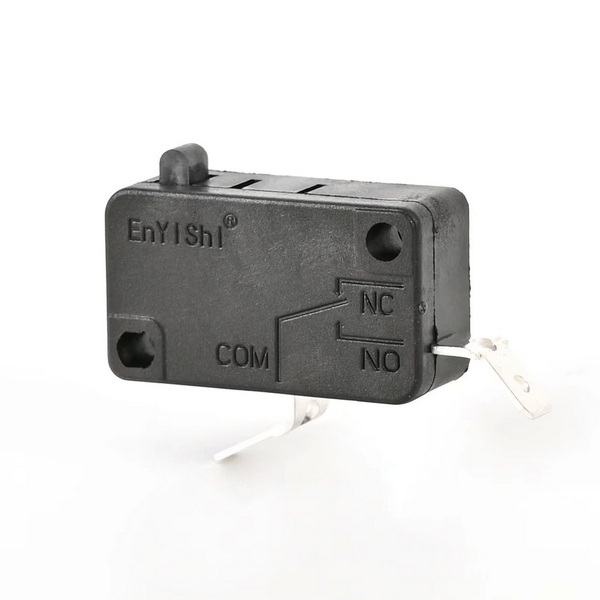

Micro switches, also known as snap-action switches, are electromechanical devices that operate when a small amount of force is applied to their actuator. They are commonly found in applications such as:
- Home appliances (e.g., washing machines, microwaves)
- Industrial equipment (e.g., limit switches for machinery)
- Automotive systems (e.g., door switches)

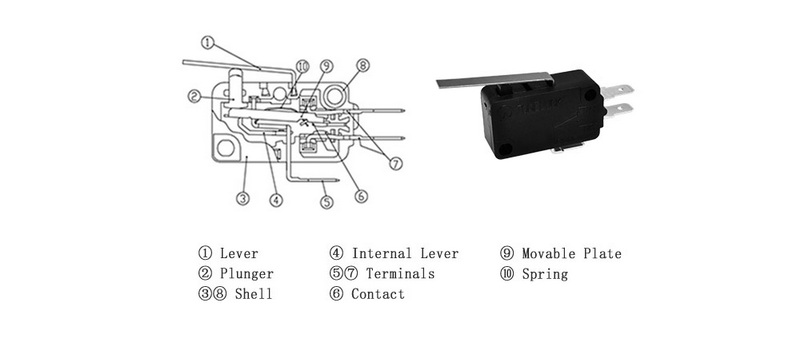

The basic operation involves a spring-loaded mechanism that snaps the contacts together or apart when the actuator is pressed. This action allows for quick and reliable switching.
Capacitors are often added to micro switch circuits for several key reasons:
One of the primary reasons for including a capacitor in micro switch circuits is to handle *switch bouncing*. When a micro switch is activated, the mechanical contacts can bounce before settling into a stable state. This bouncing can cause multiple unwanted signals to be sent to the connected circuitry.
- How it Works: The capacitor charges and discharges during the bouncing period, smoothing out the voltage changes. This results in a more stable signal that the microcontroller can interpret correctly.
Capacitors also serve as filters to reduce electrical noise that can interfere with the operation of the switch.
- Functionality: By providing a low-pass filter effect, capacitors can help eliminate high-frequency noise from external sources, ensuring that only the desired signal reaches the circuit.
In some applications, capacitors help stabilize voltage levels across the switch.
- Benefit: This stabilization prevents false triggering due to sudden voltage spikes or drops, enhancing the reliability of the switch in various conditions.
Different types of capacitors can be used with micro switches depending on their specific application requirements:
- Ceramic Capacitors: Commonly used due to their small size and stability.
- Electrolytic Capacitors: Used when larger capacitance values are needed.
- Tantalum Capacitors: Provide high capacitance in small packages but are more expensive.
When designing circuits that incorporate micro switches and capacitors, several factors must be considered:
The value of the capacitor must be chosen carefully based on the desired debounce time and filtering requirements. Too high a capacitance may slow down response times, while too low may not effectively debounce or filter noise.
- Example Calculation: For typical applications, values between 0.1 µF and 10 µF are common. Engineers often use empirical testing to determine the best value for their specific application.
The physical placement of capacitors relative to micro switches on a printed circuit board (PCB) can significantly affect performance. Keeping traces short helps minimize inductance and resistance, which can degrade performance.
- Best Practices: Place capacitors as close as possible to the pins of the micro switch to reduce parasitic effects and improve response times.
Capacitors can be affected by temperature and humidity. Selecting components rated for specific environmental conditions is crucial for maintaining reliability over time.
- Temperature Coefficients: Understanding how different types of capacitors react to temperature changes can help in selecting suitable components for harsh environments.
Micro switches with capacitors find applications across various fields:
- Consumer Electronics: In devices like remote controls and game controllers where quick response times are critical.
- Industrial Automation: In machinery where precise control is necessary for safety and efficiency.
- Automotive Systems: In safety features such as seatbelt reminders or door sensors where reliability is paramount.
To illustrate how capacitors enhance micro switch functionality, consider these case studies:
1. Home Appliances: In washing machines, micro switches equipped with capacitors ensure that water levels are accurately detected without false triggering due to vibrations during operation.
2. Industrial Equipment: In automated assembly lines, reliable limit switches prevent machinery from operating outside designated parameters by effectively filtering noise from nearby equipment.
3. Automotive Applications: Door sensors equipped with capacitors prevent false alarms caused by minor vibrations or electrical noise when vehicles are parked on uneven surfaces.
While incorporating capacitors into micro switch designs offers numerous benefits, there are challenges that engineers must address:
As devices become smaller, finding space for additional components like capacitors can be challenging.
- Solution: Use surface-mount technology (SMT) components that allow for compact designs without sacrificing performance.
Higher-quality capacitors may increase manufacturing costs.
- Solution: Conduct cost-benefit analyses to determine if the added reliability justifies the expense in high-stakes applications where failure could lead to significant losses.
Capacitor tolerances can affect circuit performance; variations in capacitance values might lead to inconsistent behavior.
- Solution: Use precision capacitors with tighter tolerances in critical applications to ensure consistent performance across all units produced.
Incorporating capacitors into micro switch designs enhances their functionality by addressing issues like debouncing, noise filtering, and voltage stabilization. Understanding these functions allows engineers to design more reliable electronic systems that perform well under various conditions. As technology continues to advance, optimizing these components will remain essential for developing efficient and dependable devices across multiple industries.
Switch bouncing refers to the phenomenon where mechanical contacts within a switch rapidly make and break contact before settling into a stable state, potentially causing multiple signals to be registered.
A capacitor smooths out voltage changes caused by switch bouncing by charging and discharging gradually, which helps filter out transient signals that could lead to false triggering.
Not all micro switches come with capacitors; it depends on their intended application and whether debouncing or noise filtering is necessary for that specific use case.
While you can use various types of capacitors, ceramic capacitors are commonly preferred due to their stability and size. The choice depends on specific circuit requirements.
The right capacitance value depends on your debounce time requirements and noise characteristics of your application; typically, values range from tens of nanofarads to several microfarads.
