In the world of 3D printing, precision and reliability are paramount. One of the key components that contribute to this precision is the Z-axis endstop switch, which determines the home position of the print head along the vertical axis. Traditionally, mechanical micro switches have been used for this purpose. However, with the advent of advanced auto bed leveling (ABL) systems like the BLTouch, many users are left wondering: Does the BLTouch replace the Z-stop micro switch? This article will delve into this question, exploring the functionality of both systems, their integration, and considerations for 3D printer users.

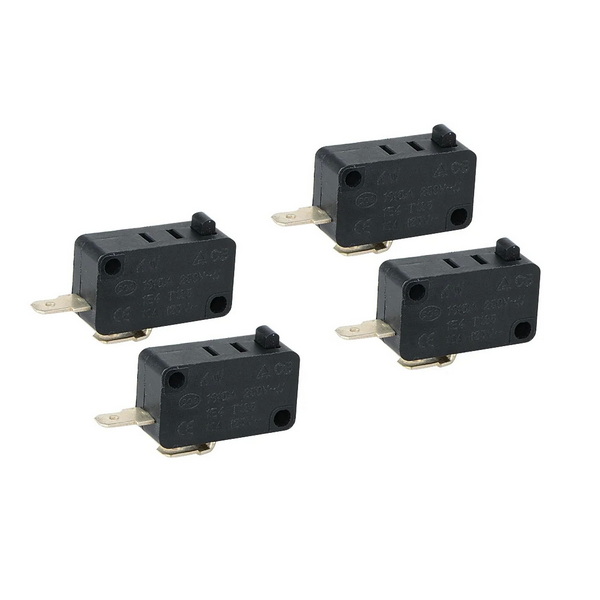

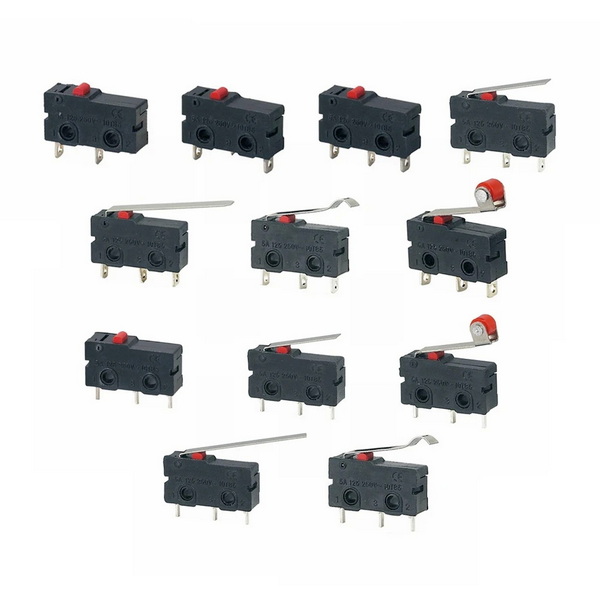

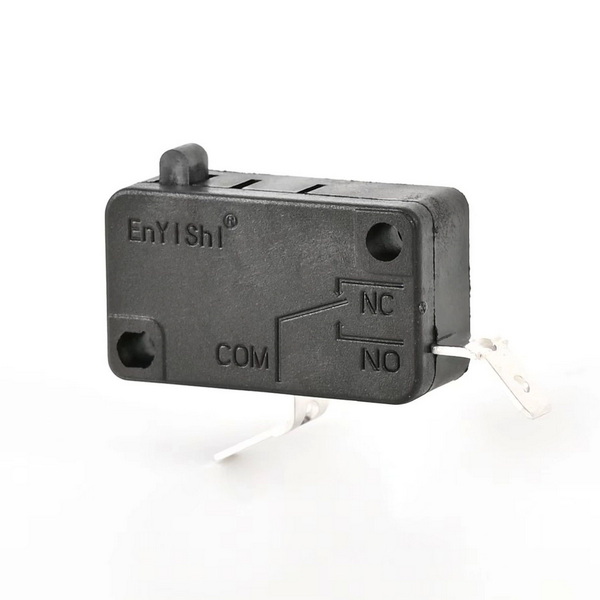

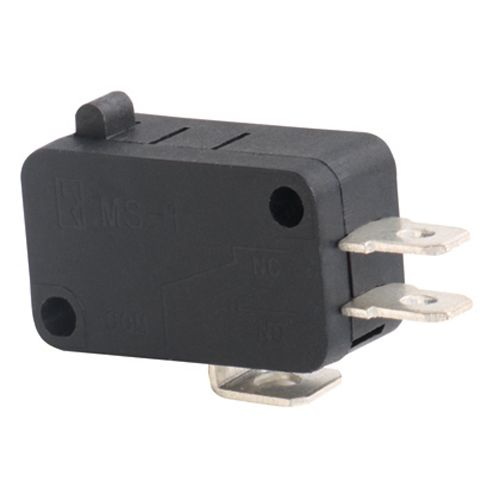

Z-Stop Micro Switches are mechanical switches that serve as a hard limit for the Z-axis movement in 3D printers. When the print head or bed reaches a certain height, it triggers the switch, signaling to the printer's firmware to stop further movement in that direction. This mechanism is essential for preventing crashes that could damage both the printer and the print itself.
- Simplicity: They are straightforward to install and configure.
- Reliability: Mechanical switches are generally reliable under various conditions.
- Cost-Effectiveness: They are less expensive compared to more advanced sensors.
- Limited Precision: Mechanical switches can introduce variability in positioning due to wear over time.
- No Leveling Capability: They do not provide any automatic bed leveling features.
The BLTouch is an electronic auto bed leveling sensor that uses a probe to measure the distance between the nozzle and the print bed at various points. This data allows the printer to create a mesh map of the bed surface, compensating for any irregularities during printing.
- Precision: It provides highly accurate measurements for leveling.
- Automatic Bed Leveling: Eliminates manual adjustments by automatically compensating for bed irregularities.
- Improved Print Quality: Leads to better adhesion and reduced warping.
- Complexity: Installation and configuration can be more complicated than a simple micro switch.
- Cost: Generally more expensive than traditional mechanical switches.
The short answer is yes; when you install a BLTouch on your 3D printer, it effectively replaces the traditional Z-stop micro switch. However, there are several considerations to keep in mind:
1. Firmware Adjustments: When integrating a BLTouch, you need to update your printer's firmware settings. Most firmware options like Marlin allow you to configure the BLTouch as your Z-endstop.
2. Removing the Old Switch: It is recommended to remove or disconnect the original Z-stop micro switch from your setup. Leaving it connected can lead to conflicts where both sensors may trigger simultaneously, causing erratic behavior during homing routines.
Some users opt to keep both systems in place as a safety measure. This can be done by wiring them in parallel or using a secondary endstop as a backup. However, this setup requires careful configuration to ensure that one does not interfere with the other.
1. Gather Materials: Ensure you have all necessary tools and components including a BLTouch sensor, wiring harness, and firmware compatible with your printer model.
2. Remove Existing Z-Stop Switch: Disconnect and remove any existing mechanical Z-stop switches from your printer.
3. Install BLTouch:
- Mount the BLTouch according to your printer's specifications.
- Connect it to your mainboard using the appropriate wiring harness.
4. Firmware Configuration:
- Update your firmware settings (e.g., Marlin) to enable ABL and configure BLTouch as your new Z-endstop.
- Set probe offsets and test functionality using commands like G28 (home all axes) and G29 (start auto bed leveling).
5. Testing:
- Perform several test prints to ensure proper calibration and functionality.
In conclusion, while traditional Z-stop micro switches have served their purpose well in 3D printing, technologies like the BLTouch provide enhanced precision and automation capabilities that make them superior for many applications. By replacing mechanical switches with a BLTouch sensor, users can achieve better print quality and reduce manual leveling efforts. However, it is crucial to properly configure your firmware and understand how these systems interact to avoid potential issues.
Yes, but it requires careful configuration to prevent conflicts between the two sensors.
Leaving both connected may lead to erratic behavior during homing routines as both sensors could trigger simultaneously.
You need to update settings related to auto bed leveling in your firmware (like Marlin) and specify that you are using a BLTouch as your Z-endstop.
Yes, especially if you frequently encounter bed leveling issues or want improved print quality through automatic compensation for bed irregularities.
Check connections and ensure proper calibration settings in your firmware; if problems persist, consider replacing or troubleshooting the sensor itself.
