A Double Pole Double Throw (DPDT) slide switch is a versatile electrical component widely used in various applications to control multiple circuits. Understanding how it operates is essential for anyone working with electronics, whether you are a hobbyist or a professional engineer. This article will explore the mechanics, wiring configurations, and practical applications of DPDT slide switches, providing a comprehensive guide to their functionality.
A DPDT slide switch consists of six terminals that allow it to control two separate circuits with two outputs each. This means it can either connect one input to one of two outputs or completely disconnect both outputs, giving it significant versatility in circuit design.
Key Features:
- Two Poles: Each pole can control a separate circuit.
- Double Throw: Each pole can connect to one of two outputs, allowing for multiple configurations.
- Mechanical Action: The switch operates through a sliding mechanism that physically moves the internal contacts to change the circuit configuration.
The DPDT slide switch typically includes the following components:
- Terminals: Six terminals are arranged in two rows. The center terminals are usually connected to the power source, while the outer terminals connect to the load.
- Actuator: The sliding mechanism that users manipulate to change the switch's position.
- Internal Contacts: These determine which terminals are connected based on the switch's position.

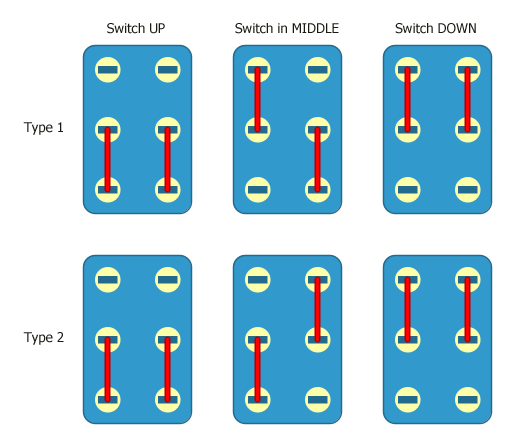

To understand how a DPDT slide switch works, consider its wiring configuration:
1. Positioning:
- In one position (let's say "up"), the current flows from the power source through one set of terminals to one output.
- In the other position (let's say "down"), it connects to another set of terminals leading to a different output.
- A central position often exists where no current flows, effectively turning off both circuits.
2. Circuit Control:
- This setup allows a single switch to control two devices or circuits simultaneously.
- For example, if you have two light bulbs connected to different outputs, sliding the switch will turn on one bulb while turning off the other.
Wiring a DPDT slide switch may seem complex at first, but it can be broken down into simple steps:

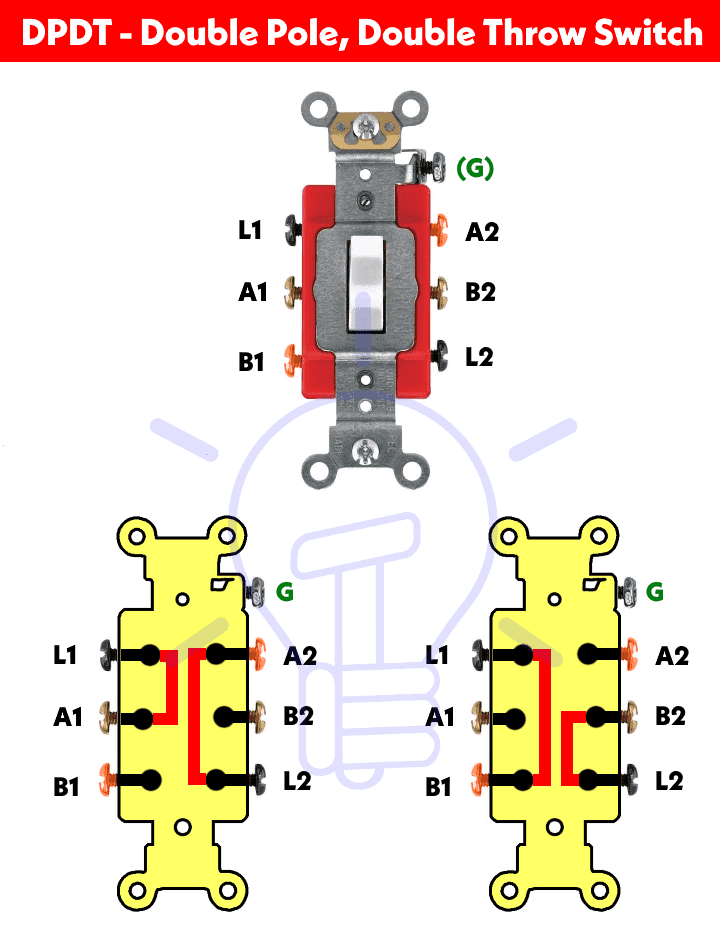

1. Identify Terminals:
- The six terminals are typically labeled as follows:
- L1 and L2: Input connections from the power source.
- A1, A2: Output connections for Circuit 1.
- B1, B2: Output connections for Circuit 2.
2. Connect Power Source:
- Connect your positive voltage source to L1 and your ground or negative voltage source to L2.
3. Connect Outputs:
- Connect A1 and A2 to your first load (e.g., LED light).
- Connect B1 and B2 to your second load (e.g., motor).
4. Testing:
- After wiring, test the switch by sliding it between positions and observing whether each load activates correctly.
DPDT slide switches are widely used in various applications due to their versatility:
- Motor Control: They can reverse motor direction by changing polarity in DC motors.
- Power Source Selection: Useful in devices that need to switch between battery and AC power sources without complex circuitry.
- Lighting Control: Enable control over multiple lighting circuits from a single location.
- Audio Equipment: Commonly used in audio devices for selecting between different input sources.
- Versatility: They can handle multiple circuits simultaneously.
- Simplicity: Easy to wire and operate compared to more complex switching mechanisms.
- Durability: Mechanical switches like these tend to have longer lifespans than electronic alternatives.
Understanding different types of slide switches can help you choose the right one for your project:
- SPST (Single Pole Single Throw): The simplest type, functioning as an on/off switch for one circuit.
- SPDT (Single Pole Double Throw): Routes one input to either of two outputs, allowing for more complex configurations than SPST switches.
- DPST (Double Pole Single Throw): Controls two circuits simultaneously but only has an on/off function for both at once.
- DPDT (Double Pole Double Throw): Combines features of SPDT switches, allowing for control over two circuits with two outputs each.
When wiring a DPDT slide switch, there are several configurations you might encounter:
1. Standard Configuration:
- Connect each pair of terminals to the two circuits you want to control.
- Connect the power source (positive and negative) to the middle common terminals.
2. Reversing Motor Direction:
- Use the DPDT switch to reverse polarity in a motor circuit. This allows you to change the direction of rotation by simply toggling the switch.
3. Multi-Function Control:
- By connecting different loads across A1/A2 and B1/B2, you can create setups where toggling the switch activates different devices or functions based on its position.
To wire a DPDT slide switch effectively, you'll need some basic tools:
- Wire Stripper: To remove insulation from wires before connections.
- Soldering Iron: For making permanent connections when necessary.
- Heat Shrink Tubing: To insulate and protect soldered connections from short circuits or damage.
- Multimeter: To test and verify your connections before powering up your circuit.
- Needle-nose Pliers: Useful for maneuvering small components in tight spaces during assembly or repairs.
To ensure optimal performance and longevity of your DPDT slide switches:
- Always double-check wiring configurations before applying power.
- Use appropriate wire gauges based on current requirements; thicker wires may be needed for higher currents.
- Avoid mechanical stress on the actuator; excessive force can damage internal components or misalign contacts.
- Regularly inspect switches in high-use applications for wear or damage that could affect functionality.
DPDT slide switches are essential components in many electronic devices due to their ability to control multiple circuits with ease. Understanding their operation, wiring configurations, and applications can greatly enhance your ability to design and troubleshoot electronic systems. Whether you're reversing motor directions or switching power sources, mastering the use of DPDT switches will undoubtedly expand your capabilities in electronics.
SPST (Single Pole Single Throw) switches control only one circuit with an ON/OFF function, whereas DPDT switches can control two separate circuits with two outputs each.
Yes, while primarily designed for more complex functions, a DPDT switch can be wired as an ON/OFF switch by connecting both poles appropriately.
Common applications include motor direction control, power source switching, and multi-device control in audio equipment and lighting systems.
To wire it, connect your power source to L1 and L2 terminals; then connect your loads to A1/A2 and B1/B2 according to your desired configuration.
Alternatives include SPST or SPDT switches for simpler applications where only one circuit needs control or where less complexity is required.
