A slide switch is a simple yet effective mechanical device used to control the flow of electricity in various electronic devices. By sliding a lever or actuator, users can open or close an electrical circuit, making it an essential component in many applications. This article will explore the workings of slide switches, their types, applications, and provide insights into their design and functionality.
A slide switch is defined by its mechanism of operation, which involves a sliding action to switch between different states—typically from an open (off) position to a closed (on) position. This action allows users to control the flow of current within a circuit without needing to manually cut wires or use complex controls.
Slide switches are commonly found in a variety of devices, from toys to consumer electronics and industrial equipment. Their straightforward design makes them user-friendly and reliable for controlling electrical circuits.
The fundamental operation of a slide switch involves the movement of an actuator, which is typically a small lever or slider. When the actuator is moved:
- Contacts: The actuator moves internal contacts, either connecting or disconnecting them.
- Circuit Control: This action either completes the circuit (allowing current to flow) or breaks it (stopping current flow).
The basic principle can be summarized as follows:
1. Sliding Action: The user slides the lever to one side.
2. Contact Engagement: The movement causes metal contacts inside the switch to either touch or separate.
3. Circuit State Change: Depending on the position of the slider, the circuit either closes (turning on) or opens (turning off).

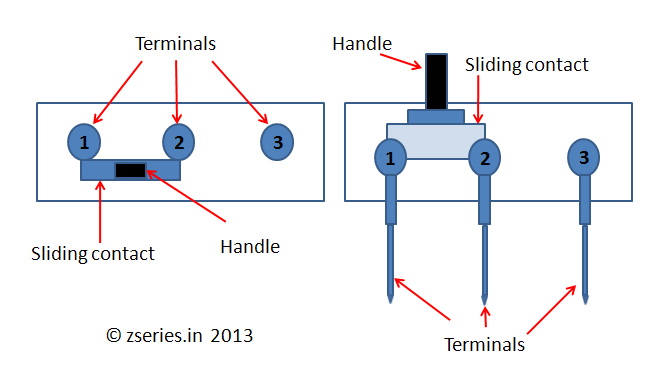

Understanding the components of a slide switch is crucial for grasping how it functions:
- Actuator: The part that users manipulate to change the state of the switch.
- Contacts: Metal pieces that connect or disconnect based on the actuator's position.
- Housing: The outer casing that protects internal components, typically made from plastic or metal.
- Terminals: Connection points for integrating the switch into a circuit; can vary in number depending on the switch type.
Slide switches come in various configurations, each suited for different applications:
- SPST (Single Pole Single Throw): The simplest form, functioning as an on/off switch with one input and one output.
- SPDT (Single Pole Double Throw): Allows switching between two circuits; useful for selecting between two different power sources.
- DPST (Double Pole Single Throw): Controls two separate circuits simultaneously but only in an on/off manner.
- DPDT (Double Pole Double Throw): Offers versatility by allowing two circuits to be switched between two states.
Slide switches are utilized across various fields due to their simplicity and reliability:
- Consumer Electronics: Used in devices like radios, music players, and flashlights for power control.
- Toys: Commonly found in electronic toys to turn them on/off or select modes.
- Industrial Equipment: Employed in machinery for controlling electrical circuits.
- Remote Controls: Often used for switching functions or power on/off in remote-operated devices.
Slide switches offer several benefits:
- Simplicity: Easy to use with clear visual feedback on whether a device is on or off.
- Reliability: Mechanical design ensures consistent performance over time.
- Versatility: Available in various configurations to suit different applications and requirements.
When selecting a slide switch for a specific application, consider factors such as:
- Size: Available in miniature, subminiature, and standard sizes depending on space constraints.
- Current Rating: Ensure that the switch can handle the required voltage and current levels for your application.
- Mounting Style: Choose between surface mount or through-hole designs based on your circuit board layout.
The mounting method is crucial for ensuring stability and durability:
- Through-Hole Mounting: This traditional method involves inserting the switch through holes in a circuit board and soldering it into place. It provides strong mechanical support suitable for applications where physical stress is expected.
- Surface Mounting: This technique allows switches to be mounted directly onto the surface of a circuit board. It enables more compact designs but requires precise soldering techniques.
- Panel Mounting: In this method, switches are mounted directly onto panels using screws or clips, making them accessible for user interaction while providing stability.
The operational mechanism of slide switches can vary depending on their design. Most commonly:
1. Metal Slides: In this design, metal slides move across flat metal contacts as the slider is actuated. This movement creates connections that either complete or break the circuit.
2. Seesaw Mechanism: Some designs utilize a metal seesaw mechanism where a spring pushes down one side when not engaged. This type maintains contact until activated into another state[1][3].
Despite their many benefits, slide switches also have certain limitations:
- Limited Complexity: As they typically offer just two positions – ON and OFF – slide switches are not suitable for applications requiring multiple states or analog control.
- Physical Wear: Being mechanical devices, slide switches are subject to wear and tear over time, which can eventually lead to failure if not properly maintained[5][9].
Slide switches require minimal maintenance but should be regularly checked for dust accumulation and mechanical wear. Cleaning contacts can help maintain optimal performance over time. For most consumer applications, these switches are generally maintenance-free throughout their lifespan[9].
In summary, slide switches are fundamental components widely used in electronic devices for controlling electrical circuits through simple mechanical actions. Their straightforward design allows users to easily manipulate them while providing reliable performance across various applications. Understanding how they work and their different types can help engineers and hobbyists select the right slide switch for their projects effectively.
The main types include SPST (Single Pole Single Throw), SPDT (Single Pole Double Throw), DPST (Double Pole Single Throw), and DPDT (Double Pole Double Throw).

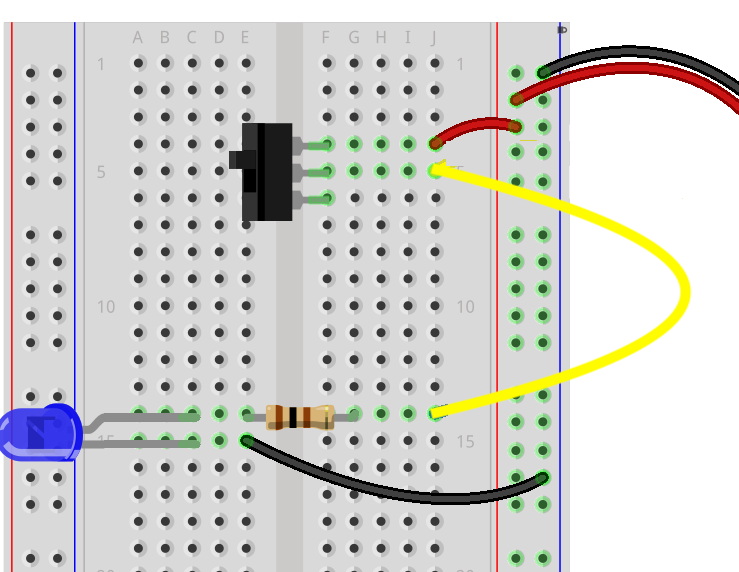

To wire a slide switch, connect one terminal to your power source and another terminal to your load. The common terminal connects to ground or serves as a common point depending on the configuration.
Slide switches are commonly used in consumer electronics like radios and flashlights, toys, industrial equipment, and remote controls.
Most slide switches are designed for low-voltage applications; however, specific models can handle higher voltages. Always check the specifications before use.
Yes, alternatives include toggle switches, push-button switches, and rotary switches, each offering different functionalities based on user needs.
