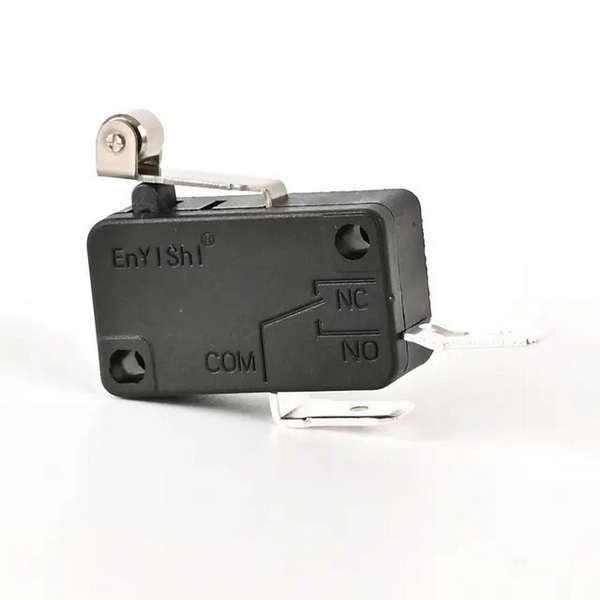

Micro switches are compact and reliable components widely used in various electronic applications, including automation and control systems. They function as simple on/off switches, making them ideal for interfacing with microcontrollers like Arduino. This guide will walk you through the process of connecting a micro-switch to an Arduino board, providing detailed instructions, circuit diagrams, and coding examples.
To successfully connect a micro-switch to an Arduino, you will need the following components:
- Arduino Board (e.g., Arduino Uno, Nano)
- Micro-switch
- Resistors (1 kΩ and 10 kΩ)
- Breadboard
- Jumper wires
- LED (optional, for indicating functionality)

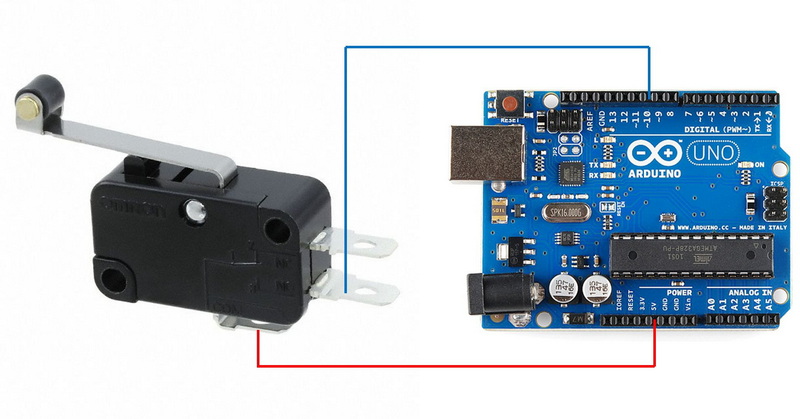

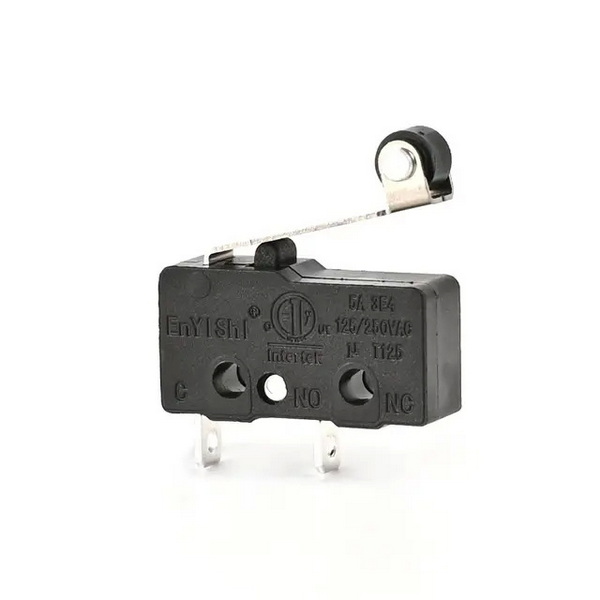

Setting up the circuit involves connecting the micro-switch to the Arduino board correctly. Below is a basic circuit diagram illustrating how to connect these components.

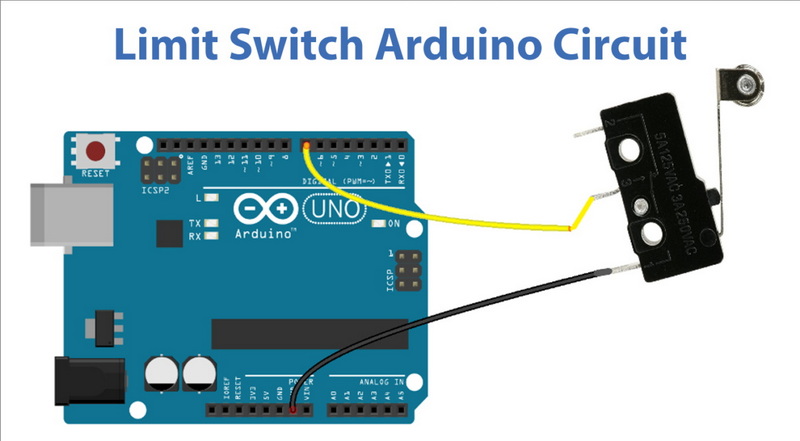

Micro switch Arduino Circuit Diagram
1. Connect Ground: Attach the ground (GND) pin on the Arduino to the ground line of the breadboard.
2. Micro-switch Connection:
- Connect one pin of the micro-switch to a digital pin on the Arduino (e.g., pin 10) through a pull-up resistor (10 kΩ).
- Connect the second pin of the micro-switch to the ground line of the breadboard.
3. LED Connection (optional):
- Wire an LED to another output pin on the Arduino (e.g., pin 12) through a current-limiting resistor (1 kΩ).
4. Power Supply: Ensure that your Arduino board is powered via USB or an external power supply.
After wiring your circuit, you'll need to upload code to your Arduino that will read the state of the micro-switch and perform actions accordingly. Below is a simple example code that turns on an LED when the micro-switch is pressed.
const int buttonPin = 10; // Micro-switch pin
const int ledPin = 12; // LED pin
void setup() {
pinMode(buttonPin, INPUT);
pinMode(ledPin, OUTPUT);
}
void loop() {
int buttonState = digitalRead(buttonPin);
if (buttonState == HIGH) {
digitalWrite(ledPin, HIGH); // Turn LED on
} else {
digitalWrite(ledPin, LOW); // Turn LED off
}
}
- The `buttonPin` variable is set to the digital pin connected to the micro-switch.
- In `setup()`, we configure `buttonPin` as an input and `ledPin` as an output.
- In `loop()`, we continuously read the state of `buttonPin`. If it detects a HIGH signal (switch pressed), it turns on the LED; otherwise, it turns off.
If your setup isn't functioning as expected, consider these common troubleshooting tips:
- Check Connections: Ensure all wires are securely connected and properly aligned with their respective pins.
- Test Components: If possible, test your micro-switch and resistors separately to ensure they are functioning correctly.
- Debounce Logic: If you experience erratic behavior when pressing the switch, implement debouncing in your code to filter out noise from mechanical bouncing.
Once you're comfortable with basic connections, you can explore more advanced configurations:
- Multiple Micro-switches: Connect additional micro-switches to different pins on your Arduino for more complex control schemes.
- Integration with Sensors: Combine micro-switches with other sensors or modules to create interactive projects.
Connecting a micro-switch to an Arduino opens up numerous possibilities for creating interactive electronic projects. By following this guide, you should now have a solid understanding of how to wire up a micro-switch and write basic code for its operation. Experiment with different configurations and applications to enhance your skills further!
Micro-switches are commonly used in applications requiring simple on/off controls, such as limit switches in automation systems or as buttons in various devices.
Yes, micro-switches are compatible with most Arduino boards.
Debounce issues can be mitigated using software techniques such as adding small delays in your code or employing hardware solutions like capacitors.
Using resistors like 1 kΩ and 10 kΩ is recommended for ensuring safe operation and preventing excessive current flow through your components.
Common mistakes include incorrect pin connections leading to short circuits or misalignment of components. Always double-check your wiring against circuit diagrams before powering up.
