Slide switches are versatile components commonly used in various electronic devices to control the flow of electricity. They can be found in everything from toys to complex electronic circuits. This article will guide you through the process of connecting a slide switch, discussing its types, wiring configurations, and practical applications. We will also include diagrams and images to enhance understanding.

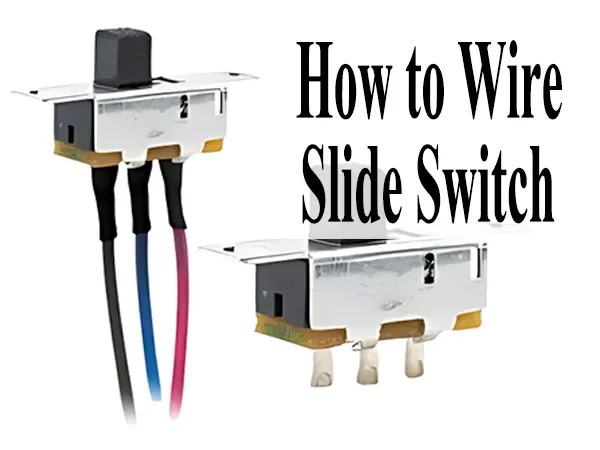

A slide switch is an electrical switch that operates by sliding a lever or actuator from one position to another. This simple mechanism allows users to open or close an electrical circuit, making it an essential component in many electronic devices.
There are several types of slide switches, each serving different purposes:
- Single Pole Single Throw (SPST): This is the simplest type, functioning as an on/off switch.
- Single Pole Double Throw (SPDT): This type can connect a single input to one of two outputs, allowing for more complex control.
- Double Pole Single Throw (DPST): Functions like two SPST switches in one unit, controlling two circuits simultaneously.
- Double Pole Double Throw (DPDT): Similar to SPDT but allows for two inputs to be connected to two outputs.
To connect a slide switch, you will need:
- Slide switch (SPST, SPDT, DPST, or DPDT)
- Wires
- Power source (battery or power supply)
- Load (like an LED or motor)
- Breadboard (optional for prototyping)
- Multimeter (for testing connections)
Connecting a slide switch involves understanding its terminals. Below are the steps for wiring different types of slide switches.
1. Identify Terminals: An SPST switch has two terminals. The first terminal connects to the power source, while the second connects to the load.
2. Connect Power: Connect the positive lead from your power source to one terminal of the switch.
3. Connect Load: Connect the other terminal of the switch to your load (e.g., an LED).
4. Complete Circuit: Connect the other side of your load back to the ground of your power source.

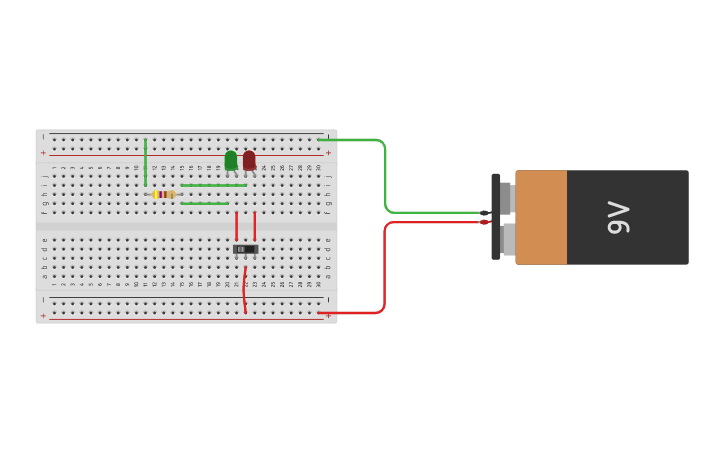

1. Identify Terminals: An SPDT switch has three terminals: one common and two outputs.
2. Connect Power: Connect the power source to the common terminal (usually in the center).
3. Connect Outputs: Connect each output terminal to different devices or loads.
4. Complete Circuit: Ensure that all grounds are connected back to the power source.
1. Identify Terminals: A DPST switch has four terminals—two for each circuit.
2. Connect Power: Connect one pair of terminals to one circuit and another pair to a second circuit.
3. Complete Circuits: Ensure that both circuits return to their respective grounds.
1. Identify Terminals: A DPDT switch has six terminals—two pairs for each circuit.
2. Connect Power: Connect each pair of terminals to two circuits you want to control.
3. Complete Circuits: The middle terminals typically connect back to ground or power as needed.
4. Complete Circuit Overview: Ensure that each circuit can operate independently based on the switch's position.
Slide switches are used in various applications including:
- Toys: To turn on/off lights and sounds.
- Home Appliances: For controlling power in devices like lamps and fans.
- Electronics Projects: In DIY electronics projects for toggling functions on microcontrollers like Arduino.
- Consumer Electronics: Common in products like remote controls and portable gadgets where users can easily activate features with a slide motion[3][6].
- Automotive Applications: Used for controlling vehicle accessories such as wipers and headlights[3].
- Medical Devices: Provide precise control in equipment used for monitoring vital signs[3].
When connecting slide switches, you may encounter some common issues:
- Switch Not Working: Ensure all connections are secure and check if the correct terminals are used.
- Intermittent Connection: This could be due to poor contact within the switch; try cleaning or replacing it.

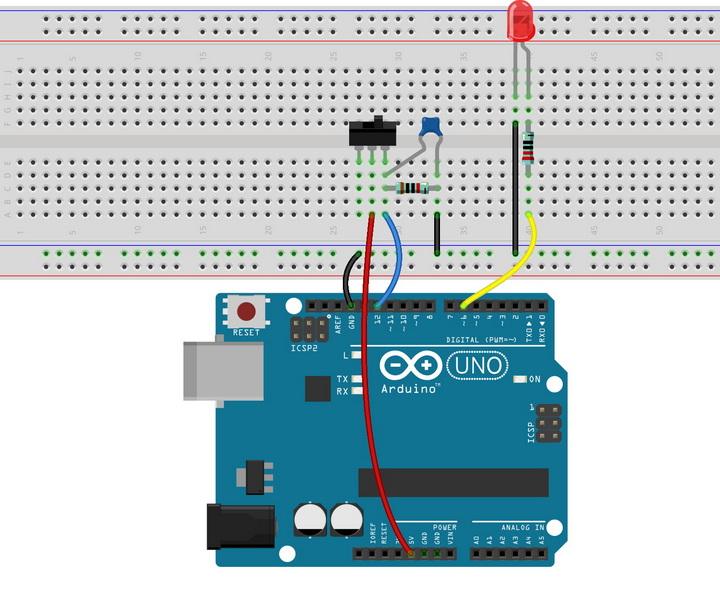

Slide switches can be effectively integrated into microcontroller projects, such as those using Arduino boards. Here's how you can use an SPDT slide switch with an Arduino:
1. Components Needed:
- Arduino board
- SPDT slide switch
- LED
- Resistor (220Ω)
- Breadboard and jumper wires
2. Wiring Instructions:
- Connect the middle pin of the slide switch to a digital pin on your Arduino.
- Connect one outer pin of the slide switch to ground.
- Connect the other outer pin through a resistor to another digital pin connected to an LED.
Slide switches offer several benefits in various applications due to their simple design, ease of use, and low cost:
- Simple Operation: Users can easily slide the switch between positions without confusion.
- Durable and Reliable: Designed to withstand mechanical stress and wear over time[8].
- Compact Design: Ideal for applications with limited space[8].
- Low Cost: Economical choice for basic on/off control functions[8].
- Visual Indicators: Some models include indicators showing whether they are ON or OFF[8].
Connecting a slide switch is a straightforward process that can significantly enhance your electronic projects' functionality. By understanding the different types of switches and their wiring configurations, you can effectively control various devices with ease. Their versatility across multiple applications—from consumer electronics to automotive uses—makes them invaluable components in modern technology.
SPST switches have two terminals and operate as simple on/off controls, while SPDT switches have three terminals and can route a single input to one of two outputs.
You can use a multimeter set to continuity mode to test which terminals connect when the switch is slid in either direction.
Most slide switches are designed for low voltage applications; ensure you check the specifications before using them in high voltage circuits.
Wiring a slide switch incorrectly may cause it not to function as intended or could potentially damage components connected in the circuit.
Always ensure that your circuit is powered off when making connections or modifications, and use components rated for your specific application voltage and current levels.
