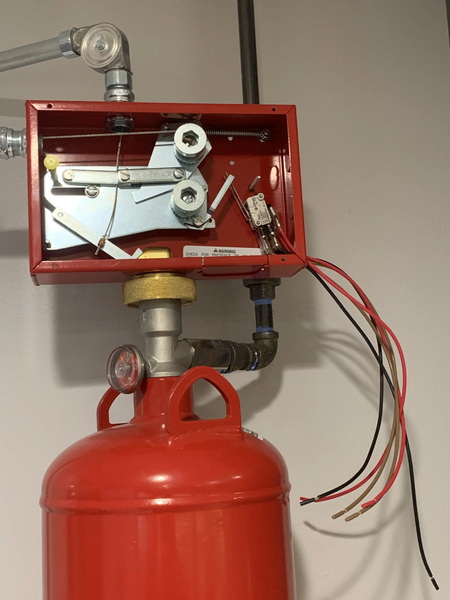

Fire suppression systems are critical components in commercial kitchens, ensuring safety by automatically activating in the event of a fire. One essential part of these systems is the micro switch, which plays a vital role in controlling various functions, such as shutting down exhaust fans and activating alarms. This article will provide a comprehensive guide on how to connect micro switches in a fire suppression system, including wiring diagrams, installation steps, and troubleshooting tips.

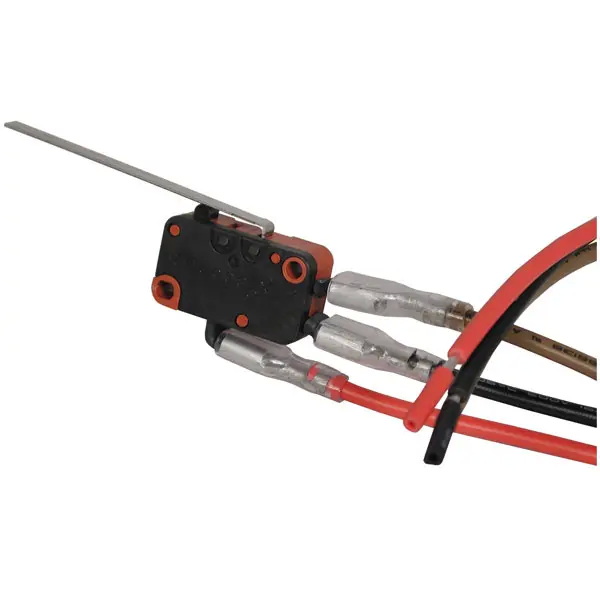

A micro switch is a small electrical switch that is activated by physical movement or pressure. In fire suppression systems, micro switches are used to control the operation of various components when a fire is detected. These switches typically have three terminals:
- Common (COM): The terminal that connects to the power source.
- Normally Open (NO): This terminal is closed when the switch is activated.
- Normally Closed (NC): This terminal is open when the switch is not activated.
Before diving into the wiring process, it's essential to understand the components involved in a fire suppression system:
- Control Panel: The brain of the system that manages inputs from various sensors and activates outputs.
- Micro Switch: Activates when the fire suppression system is triggered.
- Exhaust Fans: Remove smoke and heat from the kitchen during a fire.
- Make-Up Air Units (MUA): Provide fresh air to replace the air being exhausted.
- Gas Valves: Shut off gas supply to appliances during an emergency.
To properly connect a micro switch in a fire suppression system, refer to the following wiring diagram:
+-------------------+
| Control Panel |
| |
| +--------------+ |
| | Micro | |
| | Switch | |
| | | |
| | COM NO | |
| | | | | |
| +---+------+ | |
| | | |
| +----------+ |
| |
+-------------------+
1. Safety First: Before starting any electrical work, ensure that all power sources are turned off. Use appropriate personal protective equipment (PPE).
2. Locate the Control Panel: Identify where your control panel is located and ensure it is accessible.
3. Identify Micro Switch Terminals:
- Locate the terminals on your micro switch labeled COM, NO, and NC.
- Refer to your specific micro switch documentation for terminal identification.
4. Connect Power Supply:
- Connect the power supply wire (typically red) to the COM terminal on the micro switch.
- Ensure that you use appropriately rated wire for your application.
5. Connect Normally Open Terminal:
- Connect a wire from the NO terminal of the micro switch to the control panel or device you wish to activate during an emergency (e.g., exhaust fan).
6. Connect Normally Closed Terminal:
- Connect a wire from the NC terminal back to the control panel or device that should remain operational until triggered by the fire suppression system.
7. Secure Connections: Use wire nuts or terminal blocks to secure all connections, ensuring there are no exposed wires that could cause short circuits.
8. Test Your Connections:
- After all connections are made, restore power to the control panel.
- Test the operation of your micro switch by simulating a fire condition (if applicable) or using test functions provided by your control panel.
9. Documentation and Labeling: Document your wiring setup and label all wires for future reference.
If your micro switch does not function as expected, consider these troubleshooting tips:
- Check Power Supply: Ensure that power is reaching the control panel and micro switch.
- Inspect Connections: Verify that all connections are secure and correctly wired according to your diagram.
- Test Micro Switch Functionality: Use a multimeter to check if the micro switch activates correctly when pressed or triggered.
- Consult Documentation: Always refer back to manufacturer documentation for specific troubleshooting steps related to your equipment.
Connecting a micro switch in a fire suppression system is crucial for ensuring safety in commercial kitchens. By following proper wiring techniques and safety protocols, you can effectively integrate these switches into your fire safety measures. Regular testing and maintenance will ensure that these systems function correctly when needed most.
A micro switch is an electrical switch that opens or closes circuits when activated by physical movement or pressure.
You can test a micro switch using a multimeter to check for continuity when it is activated.
No, appliances typically have higher amp ratings than microswitches; use a relay or contactor for higher loads.
Check power connections, inspect wiring for damage, and ensure that all components are functioning correctly according to their specifications.
It's recommended to test your fire suppression system at least once every six months or after any maintenance work has been performed.
