Micro switches are essential components in various electronic devices and systems, serving as reliable mechanisms for controlling electrical circuits. Understanding how to connect a micro switch is crucial for anyone working with electronics, whether you're a hobbyist, an engineer, or someone interested in DIY projects. This guide will walk you through the process of connecting a micro switch, including necessary tools, wiring methods, practical applications, and troubleshooting tips.

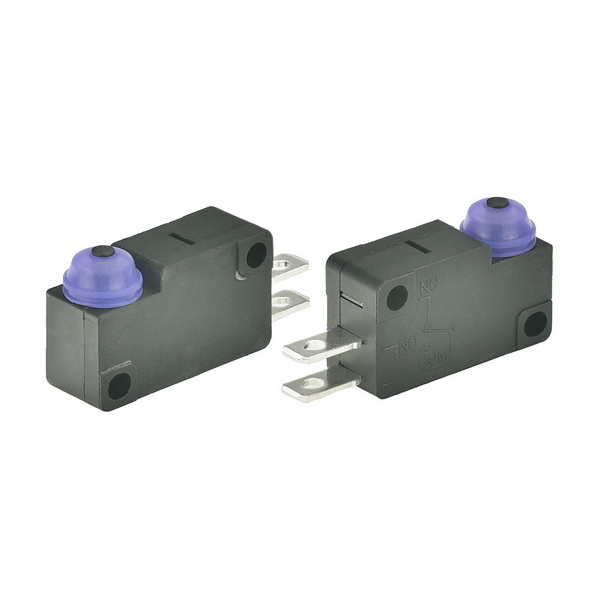

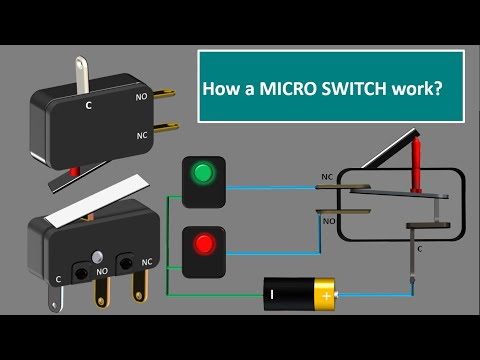

A micro switch is a small, fast-acting switch that operates with minimal force. It typically features three terminals: Common (C), Normally Open (NO), and Normally Closed (NC). The micro switch is activated when an external force is applied to its actuator, causing it to change states and either complete or break an electrical circuit. This mechanism makes micro switches ideal for various applications, such as in appliances, safety devices, and automation systems.
Understanding the different types of micro switches can help you choose the right one for your project:
- Single Pole Single Throw (SPST): This simple switch has two terminals and can either be on or off. It is commonly used in basic applications where a single action is required.
- Single Pole Double Throw (SPDT): This type has three terminals (C, NO, NC) and can route the current to one of two outputs. It is useful for applications requiring more complex control.
- Double Pole Double Throw (DPDT): With six terminals, this switch can control two separate circuits simultaneously. This type is often used in more advanced configurations where multiple actions are needed.
Before you begin connecting a micro switch, gather the following tools and materials:
- Micro Switch: Choose the appropriate type for your application (SPDT, SPST, etc.).
- Wire: Ensure the wire is suitable for the current and voltage requirements.
- Wire Strippers: For stripping insulation off the wire ends.
- Screwdriver: Necessary if your micro switch uses screw terminals.
- Soldering Iron and Solder: If soldering connections is required.
- Connectors: Depending on your connection method.
- Multimeter: For testing continuity and ensuring proper connections.
Identify the type of micro switch you are using. Common types include:
- SPDT (Single Pole Double Throw): Has one common terminal and two outputs (NO and NC).
- SPST (Single Pole Single Throw): Simple on/off switch.
Understanding your switch's configuration will help you wire it correctly.
Cut and strip the wires you'll use to connect the micro switch. Ensure that you leave enough length to reach both the switch and the device it controls. Strip about 1/4 inch of insulation from each end of the wire to expose the copper.

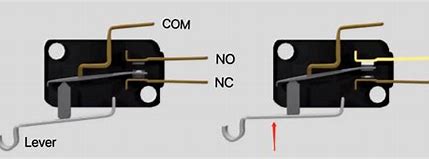

Familiarize yourself with the terminals on your micro switch:
- Common (C): The central terminal that connects to either NO or NC.
- Normally Open (NO): This terminal connects when the switch is activated.
- Normally Closed (NC): This terminal connects when the switch is not activated.
There are several methods to connect wires to a micro switch:
- Using Screw Terminals: If your micro switch has screw terminals:
- Insert the stripped wire into the terminal hole.
- Wrap it around the screw if necessary.
- Tighten the screw securely.
- Using Quick Connect Terminals: If your micro switch uses quick connect terminals:
- Simply insert the stripped wire into the terminal until it clicks into place.
- Using Soldering: For a more permanent connection:
- Heat your soldering iron.
- Place the stripped wire against the terminal and apply solder until it flows around the connection.
After connecting all wires, double-check each connection point:
- Ensure that all connections are secure.
- Look for any exposed copper that could cause short circuits.
Once everything is connected:
- Power on your circuit.
- Press or activate the micro switch to see if it functions as expected.
If it doesn't work, recheck all connections for accuracy.
Micro switches are used in various applications due to their reliability and precision:
- Home Appliances: Used in washing machines, microwaves, and refrigerators for safety interlocks. For example, a washing machine may use a micro switch to detect whether the lid is closed before starting its cycle.
- Industrial Equipment: Often found in machinery for limit detection or safety cut-off systems. In manufacturing environments, they can be used to ensure that safety doors are closed before machines operate.
- Consumer Electronics: Used in devices like keyboards and computer mice for user inputs. They provide tactile feedback when buttons are pressed, enhancing user experience.
While connecting a micro switch is generally straightforward, issues may arise during installation or operation. Here are some common problems and their solutions:
If your micro switch does not activate when pressed:
- Check if there's any obstruction preventing movement.
- Ensure that all connections are secure and correctly wired.
If your micro switch works sporadically:
- Inspect all wiring for damage or loose connections.
- Use a multimeter to test continuity across terminals while pressing the actuator; this will help identify faulty connections or a defective switch.
If activating your micro switch does not yield expected results:
- Verify that you have connected to the correct terminals (C, NO, NC).
- Check if there's an issue with other components in your circuit that might be affecting performance.
When working with electrical components like micro switches, it's essential to follow safety precautions:
- Always disconnect power before making any changes to wiring.
- Use insulated tools to prevent accidental shocks.
- Be aware of voltage ratings; never exceed them as this could lead to failure or hazards.
Connecting a micro switch is a straightforward process that involves understanding its terminals, preparing wires, ensuring secure connections, and testing functionality. Whether you're repairing an appliance or designing an electronic project, knowing how to properly connect a micro switch can enhance functionality and safety. With their versatility across various applications—from home appliances to industrial machinery—micro switches play a crucial role in modern electronics.
You can identify this by checking the labeling on your micro switch. NO means it will only conduct electricity when pressed, while NC means it conducts electricity when not pressed.
No, each micro switch has specific voltage and current ratings. Exceeding these ratings can damage the switch or create safety hazards.
For DPDT switches, connect common terminals to your power source or load while connecting NO and NC terminals according to your circuit needs.
Micro switches are commonly used in home appliances, industrial machines, automotive systems, and safety devices due to their fast response times and reliability.
You can test by applying power to your circuit and manually activating the switch. Use a multimeter to check continuity between terminals when pressed.
