Debouncing a micro switch is a crucial process in electronics and programming, especially when dealing with mechanical switches. When a micro switch is pressed, it can produce multiple signals due to the mechanical bouncing of the contacts. This can lead to erroneous readings in digital circuits or software applications. In this article, we will explore what debouncing is, why it is necessary, various methods to debounce a micro switch, and practical examples to implement these techniques.

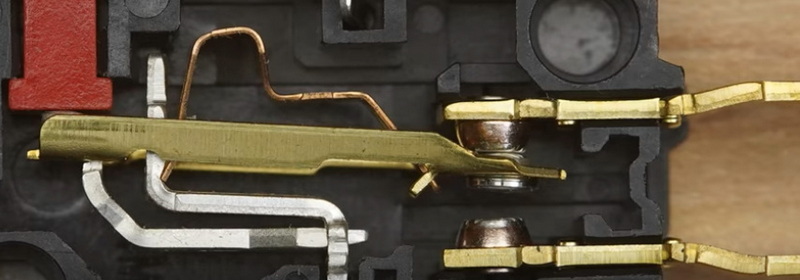

Debouncing refers to the process of ensuring that only a single signal is registered when a switch is pressed or released. Mechanical switches, such as micro switches, do not transition cleanly from on to off; instead, they can "bounce" between states for a short period. This bouncing can produce multiple transitions in rapid succession, which can confuse microcontrollers or other digital systems.
1. Signal Integrity: To ensure that the system receives only one signal per press.
2. Preventing Errors: To avoid unintended behavior in applications like user interfaces or control systems.
3. Improving Performance: To enhance the responsiveness and accuracy of the system.
There are several methods for debouncing micro switches, each with its own advantages and disadvantages. Below are some common techniques:
Hardware debouncing involves using additional electronic components to filter out the noise caused by switch bouncing.
An RC (Resistor-Capacitor) circuit can be used for debouncing. The capacitor charges and discharges, smoothing out the voltage changes caused by bouncing.
- Components Needed:
- Resistor (R)
- Capacitor (C)
- Micro switch
- Microcontroller or digital input
Circuit Diagram:
1. Connect the resistor in series with the micro switch.
2. Connect the capacitor parallel to the switch.
3. Connect the output to the microcontroller.
When the switch is pressed, the capacitor will charge through the resistor, creating a smooth voltage rise instead of sharp transitions.

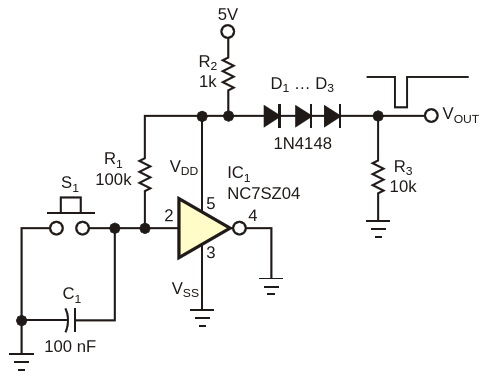

A Schmitt Trigger can also be used for debouncing. It provides hysteresis, which means it has different threshold voltages for switching on and off.
- Components Needed:
- Schmitt Trigger IC (e.g., 74HC14)
- Micro switch
- Power supply
Circuit Diagram:
1. Connect the micro switch to the input of the Schmitt Trigger.
2. Connect the output to your microcontroller.
The Schmitt Trigger will ensure that only stable high or low signals are sent to the microcontroller.
Software debouncing involves writing code that ignores rapid changes in state over a short period.
One simple way to debounce in software is by using a delay after detecting a state change.
const int buttonPin = 2;
int buttonState;
int lastButtonState = LOW;
unsigned long lastDebounceTime = 0;
unsigned long debounceDelay = 50;
void setup() {
pinMode(buttonPin, INPUT);
}void loop() {
int reading = digitalRead(buttonPin);
if (reading != lastButtonState) {
lastDebounceTime = millis();
}
if ((millis() - lastDebounceTime) > debounceDelay) {
if (reading != buttonState) {
buttonState = reading;
// Handle button state change
}
}
lastButtonState = reading;}
In this example, if a change in state occurs, it waits for 50 milliseconds before registering another change.
For more complex applications, using a state machine can help manage button states more effectively.
enum ButtonState { RELEASED, PRESSED };
ButtonState currentState = RELEASED;
void loop() {
int reading = digitalRead(buttonPin);
switch (currentState) {
case RELEASED:
if (reading == HIGH) {
currentState = PRESSED;
// Handle button press
}
break;
case PRESSED:
if (reading == LOW) {
currentState = RELEASED;
// Handle button release
}
break;
}
}
This method allows you to define specific actions for each state of the button.

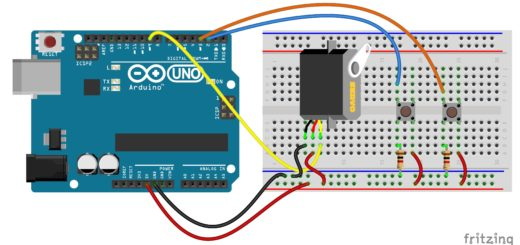

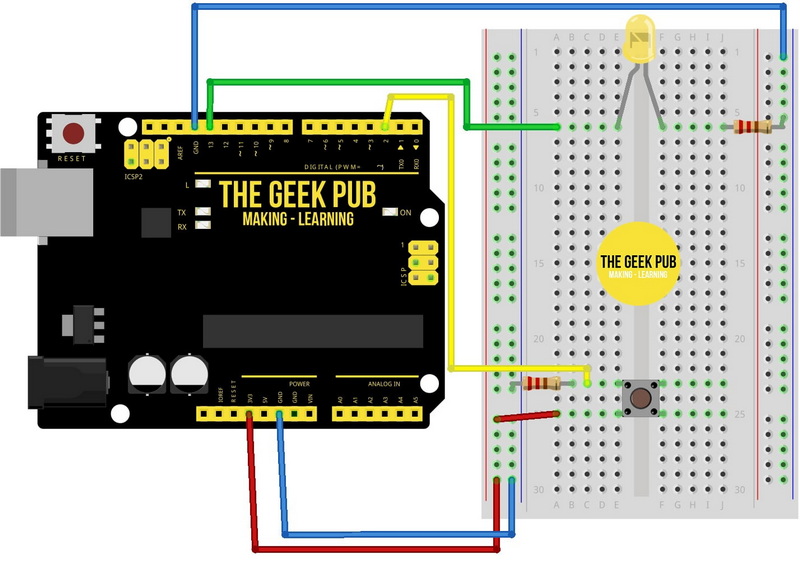

Let's consider an example where we debounce a micro switch using an Arduino board.
- Arduino board
- Micro switch
- Resistor (10kΩ)
- Capacitor (0.1µF)
- Breadboard and jumper wires
1. Connect one terminal of the micro switch to ground.
2. Connect the other terminal to digital pin 2 on the Arduino.
3. Place a pull-up resistor from pin 2 to VCC.
4. Add a capacitor across the switch terminals.
```c
const int buttonPin = 2;
int buttonState;
int lastButtonState = LOW;
unsigned long lastDebounceTime = 0;
unsigned long debounceDelay = 50;
void setup() {
Serial.begin(9600);
pinMode(buttonPin, INPUT_PULLUP);
}
void loop() {
int reading = digitalRead(buttonPin);
if (reading != lastButtonState) {
lastDebounceTime = millis();
}
if ((millis() - lastDebounceTime) > debounceDelay) {
if (reading != buttonState) {
buttonState = reading;
if (buttonState == LOW) {
Serial.println("Button pressed!");
}
}
}
lastButtonState = reading;
}
```
Once you upload this code to your Arduino, pressing the micro switch should print "Button pressed!" in the Serial Monitor without any false triggers due to bouncing.
Debouncing micro switches is an essential skill for anyone working with electronics and programming. Whether you choose hardware solutions like RC circuits and Schmitt Triggers or software methods like delay functions and state machines, understanding how to effectively debounce switches will lead to more reliable and accurate systems. With practice and experimentation, you can determine which method works best for your specific application.
Bouncing occurs due to mechanical vibrations within the switch contacts when they make or break contact, leading to multiple transitions in a very short time frame.
Bouncing can last anywhere from a few milliseconds up to several tens of milliseconds depending on the type of switch and its construction.
Yes, combining both methods can provide extra reliability in noisy environments or critical applications where precise input detection is necessary.
Any mechanical switch can benefit from debouncing techniques, including push buttons, toggle switches, and rotary switches.
The ideal debounce time varies by application but typically ranges from 5 ms to 50 ms depending on how quickly you need to respond to inputs without false triggers.
