Micro switches, also known as snap-action switches, are small devices used in various applications, including appliances, machinery, and electronic devices. They play a crucial role in controlling the operation of equipment by detecting the presence or absence of an object. However, like any mechanical component, micro switches can fail over time. This article will guide you through the process of diagnosing and fixing a micro switch, ensuring that your devices continue to function properly.

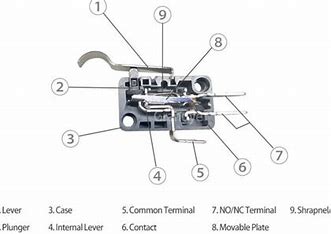

Before diving into repairs, it's essential to understand what a micro switch is and how it works. A micro switch consists of several key components:
- Actuator: The part that physically interacts with the mechanism being controlled.
- Contacts: Metal pieces that connect or disconnect when the actuator is pressed.
- Spring: Provides the necessary tension for the switch to operate.
- Housing: The outer shell that protects the internal components.
Micro switches are often used in applications such as door sensors, limit switches in machinery, and control panels. They are designed to be highly reliable and can operate under various conditions. However, they can still experience wear and tear due to frequent use or environmental factors.
The first step in fixing a micro switch is to identify what is wrong. Common issues include:
- The switch does not click or respond when pressed.
- The device it controls does not operate correctly.
- There is visible damage to the switch or its components.
To diagnose the issue:
1. Visual Inspection: Look for any signs of wear, corrosion, or physical damage.
2. Test with a Multimeter: Use a multimeter to check continuity across the switch contacts. If there is no continuity when the switch is activated, it may need repair or replacement.
To fix a micro switch, you will need some basic tools:
- Screwdrivers (flat and Phillips)
- Multimeter
- Cleaning supplies (isopropyl alcohol and cotton swabs)
- Soldering iron (if replacing components)
- Replacement parts (if necessary)
Having these tools on hand will make your repair process smoother and more efficient.
To begin repairs, you must disassemble the micro switch:
- Carefully remove any screws or clips holding the housing together.
- Take pictures of the internal components to assist with reassembly later.
Disassembling the switch allows you to access all internal parts for inspection and cleaning.
Once disassembled, inspect each component:
- Actuator: Ensure it moves freely and is not obstructed by dirt or debris.
- Contacts: Look for corrosion or dirt buildup. Clean them with isopropyl alcohol if necessary.
- Spring: Check for any signs of damage or loss of tension. A weakened spring can affect the switch's performance.
If you notice dirt or corrosion on the contacts:
- Use a cotton swab dipped in isopropyl alcohol to gently clean them.
- Allow them to dry completely before reassembling.
Cleaning the contacts can significantly improve conductivity and restore functionality.
If any components are damaged beyond repair:
- Identify compatible replacement parts.
- Use a soldering iron to replace any faulty contacts or wires as needed.
Replacing damaged parts ensures that your micro switch operates reliably after repair.
Once repairs are complete:
- Carefully reassemble the switch using your reference pictures.
- Ensure all components are correctly aligned and secured.
Double-check that all screws are tightened properly to prevent future issues.
After reassembly, it's crucial to test the micro switch before reinstalling it in your device:
1. Use a multimeter to check for continuity again.
2. Activate the switch manually to ensure it clicks and operates as expected.
Testing ensures that your repairs were successful and that the micro switch is functioning correctly.
Here are some common problems encountered with micro switches and their solutions:
- Poor Contact: Caused by dirt or corrosion; clean contacts as described above.
- Switch Not Responding: Could be due to a broken actuator; replace if necessary.
- Switch Sticking: May result from debris; clean internal parts thoroughly.
In addition to these common issues, other factors can contribute to micro switch failure:
- Environmental Conditions: Exposure to moisture, dust, or extreme temperatures can affect performance. Consider using protective enclosures when installing switches in harsh environments.
- Mechanical Wear: Frequent use can lead to mechanical wear over time. Regular maintenance checks can help identify potential problems early on.
To extend the lifespan of your micro switches and reduce the likelihood of future failures:
- Regular Cleaning: Schedule periodic cleaning of switches in environments prone to dust or moisture accumulation.
- Inspect Connections: Check wiring connections regularly for signs of wear or corrosion.
- Avoid Overloading: Ensure that switches are not subjected to loads beyond their rated capacity, which can lead to premature failure.
While many micro switches can be repaired effectively, there are times when replacement may be more practical:
1. Severe Damage: If a switch shows signs of severe physical damage (cracks in housing, broken actuator), replacement may be necessary.
2. Cost Efficiency: If replacement parts are expensive or hard to find compared to buying a new switch, consider replacing it entirely.
3. Frequent Failures: If you find yourself repairing a particular switch repeatedly, it might be time for an upgrade to a more robust model designed for higher durability.
Fixing a micro switch can save you time and money while extending the life of your devices. By following these steps—diagnosing issues, cleaning components, replacing damaged parts, and testing—you can effectively repair most micro switches without needing professional help. Remember always to prioritize safety by disconnecting power before working on electrical components.
With proper maintenance and care, your micro switches will continue functioning efficiently for years to come. Whether you're dealing with a malfunctioning appliance or machinery control system, understanding how to fix these essential components empowers you as a user and technician alike.
You will need screwdrivers, a multimeter, cleaning supplies (like isopropyl alcohol), a soldering iron for replacements, and possibly replacement parts.
Common signs include no clicking sound when pressed, failure of the device it controls to operate correctly, or visible damage to the switch itself.
Yes, cleaning can often restore functionality. Use isopropyl alcohol on the contacts and allow them to dry before reassembling.
If the damage is minimal and components can be cleaned or replaced easily, repairing may be more cost-effective than replacing the entire unit.
Regular maintenance and cleaning can help prevent buildup of dirt and corrosion that leads to failure.
