Microwave ovens are essential kitchen appliances that make our lives easier by quickly heating and cooking food. However, like any other electronic device, they can sometimes malfunction. One common issue that microwave users face is a faulty micro switch. In this comprehensive guide, we'll walk you through the process of removing a micro switch from a Magic Chef microwave oven, providing detailed instructions and helpful tips to ensure a successful repair.

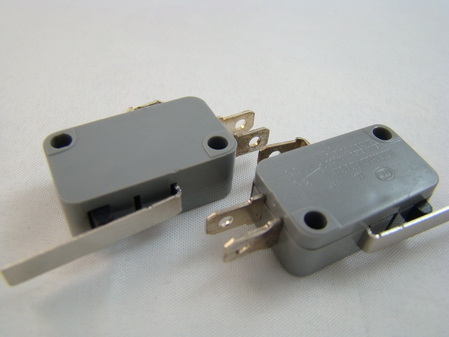

Before we delve into the removal process, it's important to understand what micro switches are and their role in your microwave oven. Micro switches are small electrical components that act as safety mechanisms in your microwave. They are typically located near the door and are responsible for detecting whether the door is open or closed. This ensures that the microwave only operates when the door is properly shut, preventing potential hazards.
To remove the micro switch from your Magic Chef microwave oven, you'll need the following tools:
- Phillips head screwdriver
- Flathead screwdriver
- Needle-nose pliers
- Multimeter (for testing)
- Flashlight
- Work gloves
- Safety goggles
CAUTION: Working with microwave ovens can be dangerous due to the high voltage components inside. Always follow these safety precautions:
1. Unplug the microwave from the power source before beginning any work.
2. Wait at least 24 hours after unplugging to allow the high-voltage capacitor to discharge.
3. Wear safety goggles and work gloves to protect yourself.
4. Never operate the microwave without its outer casing.
1. Unplug the microwave from the electrical outlet.
2. Remove any items from inside the microwave and clean the interior.
3. Place the microwave on a stable work surface with good lighting.
1. Locate the screws holding the outer casing in place. These are typically found on the back and sides of the microwave.
2. Using a Phillips head screwdriver, carefully remove all the screws and set them aside in a safe place.
3. Gently lift the outer casing off the microwave. Be careful not to force it, as there may be hidden clips or tabs.
1. With the outer casing removed, you should now see the internal components of the microwave.
2. Look for the micro switch assembly near the door area. It's usually a small plastic or metal box containing multiple switches.
1. There are typically three switches in the assembly: the primary interlock switch, the secondary interlock switch, and the monitor switch.
2. Visually inspect the switches for any signs of damage or wear.
3. Use a multimeter to test each switch for continuity if you're unsure which one is faulty.
1. Before removing the switch, take a photo or make a diagram of the wire connections to ensure correct reassembly later.
2. Carefully disconnect the wires from the faulty switch. You may need to use needle-nose pliers to gently pull the connectors off.

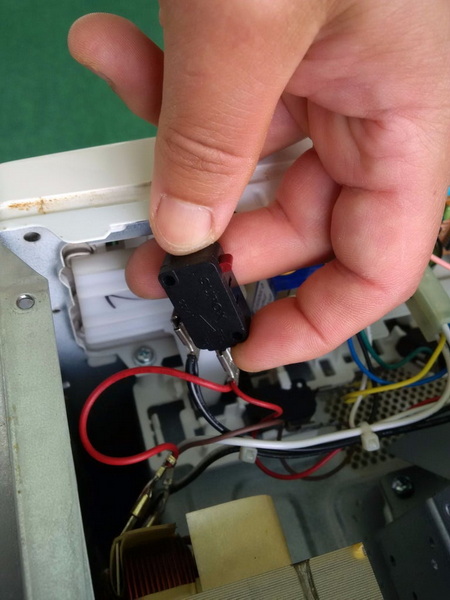

1. Examine how the switch is mounted in the assembly. It's usually held in place by small plastic tabs or clips.
2. Using a flathead screwdriver, carefully press down on the retaining tabs or clips.
3. While pressing the tabs, gently push or pull the switch out of its housing.
If you're replacing the switch:
1. Obtain an exact replacement switch with the same specifications.
2. Insert the new switch into the housing, ensuring it clicks into place.
3. Reconnect the wires to the new switch, following your photo or diagram from Step 5.
Once you've removed or replaced the micro switch, it's time to put everything back together:
1. Carefully reposition the switch assembly if you moved it.
2. Double-check all wire connections to ensure they're secure.
3. Replace the outer casing, aligning it properly with the microwave body.
4. Reinsert and tighten all the screws you removed earlier.
After reassembly, it's crucial to test the microwave to ensure it's working correctly and safely:
1. Plug the microwave back into the power outlet.
2. Open and close the door several times, listening for the clicking sound of the switches engaging.
3. Place a microwave-safe container with water inside and run the microwave for a short time to test its functionality.
IMPORTANT: If you notice any unusual sounds, smells, or behavior, immediately unplug the microwave and consult a professional technician.
If you encounter problems during or after the micro switch removal process, consider these troubleshooting tips:
- If the microwave doesn't turn on, check all wire connections and ensure the door switches are properly aligned.
- If you hear a buzzing sound but the microwave doesn't heat, there may be an issue with the magnetron or high-voltage components.
- If the microwave runs with the door open, immediately unplug it and check the switch alignment and connections.
Removing a micro switch from a Magic Chef microwave oven can be a challenging but rewarding DIY task. By following this guide, you can potentially save money on repairs and extend the life of your appliance. However, it's crucial to prioritize safety and know your limits. If at any point you feel unsure or uncomfortable with the process, don't hesitate to seek professional help.
Remember that regular maintenance and proper usage can prevent many microwave issues. Always handle your microwave with care, and address any problems promptly to ensure safe and efficient operation.
Micro switches don't have a set lifespan and typically don't require regular replacement. They should only be replaced when they malfunction or show signs of wear. With proper use, micro switches can last for many years.
No, it's crucial to use an exact replacement switch with the same specifications as the original. Using an incompatible switch can lead to safety hazards and malfunction of your microwave.
While it's possible to perform some microwave repairs at home, it can be dangerous due to the high-voltage components inside. If you're not confident in your skills or knowledge, it's always safer to consult a professional technician.
Signs of a faulty micro switch include the microwave not starting, running with the door open, or stopping mid-cycle. You can also use a multimeter to test the switch for continuity when pressed and released.
If you're having difficulty removing the micro switch, don't force it. Double-check that you've released all retaining clips or tabs. If you still can't remove it, it's best to seek help from a professional to avoid damaging other components.
