Removing solder from a micro switch is a crucial skill for electronics enthusiasts and professionals alike. Whether you're repairing a mouse, keyboard, or any other device with micro switches, knowing how to properly desolder these components can save you time and money. In this comprehensive guide, we'll explore various techniques and tools to help you master the art of removing solder from micro switches.
Before diving into the desoldering process, it's essential to understand what micro switches are and how they're typically soldered onto circuit boards. Micro switches are small electrical switches used in various electronic devices to detect physical movement or pressure. They're often found in computer mice, keyboards, and other input devices.
Micro switches are usually soldered onto printed circuit boards (PCBs) using through-hole or surface-mount technology. The soldering process creates a strong electrical and mechanical connection between the switch and the board. However, when a switch fails or needs replacement, you'll need to remove this solder to detach the component.
To successfully remove solder from a micro switch, you'll need the following tools and materials:
- Soldering iron
- Desoldering pump or solder sucker
- Solder wick or desoldering braid
- Flux
- Tweezers
- Safety glasses
- Heat-resistant work surface
- Cleaning solution (isopropyl alcohol)
- Cotton swabs or lint-free cloth
Start by setting up a well-ventilated workspace with good lighting. Place your heat-resistant work surface on a stable table or bench. Put on your safety glasses to protect your eyes from any potential solder splatter.
Turn on your soldering iron and allow it to heat up to the appropriate temperature. For most electronic work, a temperature between 300°C and 370°C (572°F to 698°F) is suitable.

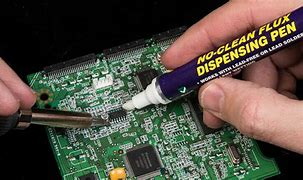

Apply a small amount of flux to the solder joints of the micro switch. Flux helps to improve heat transfer and makes the solder more likely to flow, making the desoldering process easier.
Once the soldering iron is hot, follow these steps:
1. Place the tip of the soldering iron on one of the solder joints.
2. Wait for the solder to melt completely.
3. Position the nozzle of the desoldering pump close to the melted solder.
4. Quickly press the button on the pump to create suction and remove the molten solder.
5. Repeat this process for each solder joint on the micro switch.
After using the desoldering pump, there may still be some residual solder on the joints. To remove this:
1. Place a strip of solder wick over the remaining solder.
2. Press the tip of the soldering iron onto the wick, directly above the solder.
3. As the solder melts, it will be drawn up into the wick.
4. Move the wick slightly as you work to expose fresh braid.
5. Repeat until all excess solder is removed.
Once all the solder has been removed, gently lift the micro switch from the PCB using tweezers. If it doesn't come off easily, double-check for any remaining solder and repeat the previous steps as necessary.
After removing the micro switch, clean the area around the solder pads using isopropyl alcohol and a cotton swab or lint-free cloth. This will remove any flux residue and prepare the area for the new switch if you're planning to replace it.
For particularly stubborn solder or surface-mount micro switches, a hot air rework station can be incredibly effective:
1. Set the hot air station to an appropriate temperature (usually around 350°C or 662°F).
2. Direct the hot air nozzle at the solder joints, moving in a circular motion.
3. As the solder melts, use tweezers to gently lift the micro switch off the board.
4. Clean up any remaining solder using the methods described earlier.
For situations where traditional methods aren't working, the Chip Quik low-temperature alloy can be a lifesaver:
1. Apply Chip Quik flux to the solder joints.
2. Melt the Chip Quik alloy onto the existing solder.
3. The alloy will blend with the solder, creating a low-melting-point mixture.
4. While the mixture is still liquid, quickly remove the micro switch.
5. Clean up the remaining alloy using solder wick or a desoldering pump.
- Always work in a well-ventilated area to avoid inhaling solder fumes.
- Keep your soldering iron tip clean and well-tinned for better heat transfer.
- Use the appropriate size soldering iron tip for the job – smaller tips for precision work on micro switches.
- If you're having trouble, take breaks to avoid frustration and potential mistakes.
- Practice on old or scrap electronics before attempting to repair valuable devices.
1. Overheating the PCB: Applying too much heat for too long can damage the board or nearby components.
2. Using excessive force: Gentle manipulation is key; forcing components can lead to torn pads or damaged traces.
3. Neglecting proper safety gear: Always wear safety glasses and work in a well-ventilated area.
4. Skipping the cleaning step: Flux residue can cause issues if left on the board.
5. Rushing the process: Take your time to ensure a clean and effective desoldering job.
Removing solder from a micro switch requires patience, the right tools, and proper technique. By following this guide and practicing your skills, you'll be able to successfully desolder micro switches and other small components with confidence. Remember to always prioritize safety and take your time to achieve the best results. Whether you're repairing a beloved device or working on a new electronics project, mastering the art of desoldering will serve you well in your future endeavors.
Common signs that a micro switch needs replacement include inconsistent or non-responsive clicking, unusual noises when pressed, or visible physical damage to the switch. If your device's button isn't working correctly, it's often due to a faulty micro switch.
Yes, you can use a regular soldering iron for desoldering micro switches, but it's more effective when combined with a desoldering pump or solder wick. Temperature-controlled soldering stations provide better results and reduce the risk of damaging the PCB or surrounding components.
The best way to clean flux residue is to use isopropyl alcohol (91% or higher) and a lint-free cloth or cotton swab. Gently scrub the area where you desoldered, and the alcohol will dissolve the flux residue. For stubborn residue, you may need to use a specialized flux remover solution.
In some cases, adding a small amount of fresh solder to old, oxidized joints can actually make the desoldering process easier. The fresh solder helps to transfer heat more effectively and can blend with the old solder, making it easier to remove all at once.
To prevent damage to the PCB, use the lowest effective temperature on your soldering iron, avoid applying heat for too long, and use flux to improve heat transfer. Additionally, be gentle when removing the switch, and if you encounter resistance, recheck for remaining solder rather than forcing the component off the board.
