Soldering is an essential skill in electronics, allowing you to create reliable connections between components. In this guide, we will focus on how to solder a slide switch, a common component used in various electronic devices. This article will provide step-by-step instructions, tips, and best practices to ensure a successful soldering experience.
A slide switch is a type of electrical switch that is operated by sliding a lever. It typically has three terminals: one common terminal and two selectable terminals. When the lever is slid to one position, it connects the common terminal to one of the outer terminals; sliding it the other way connects it to the other outer terminal. This functionality makes slide switches ideal for applications requiring on/off control.
Slide switches are widely used in consumer electronics, such as remote controls and portable gadgets, as well as in industrial applications where reliability and durability are crucial. Their compact design allows for easy integration into various electronic devices, making them a popular choice among engineers and hobbyists alike.
Before you begin soldering, gather the following tools and materials:
- Soldering iron (preferably 30 watts)
- Solder (0.030 – 0.040 diameter)
- Wire strippers
- Helping hands or a PCB vise
- Flux (optional but recommended)
- Heat shrink tubing (optional)
- Safety goggles
1. Prepare the Wires
Start by preparing the wires that will connect to the slide switch. Follow these steps:
- Strip the Insulation: Use wire strippers to remove about 1/4 inch of insulation from the ends of each wire.
- Tin the Wires: Apply a small amount of solder to the exposed wire ends. This process, known as tinning, helps create a better connection when soldering.
2. Prepare the Slide Switch
Next, prepare the slide switch:

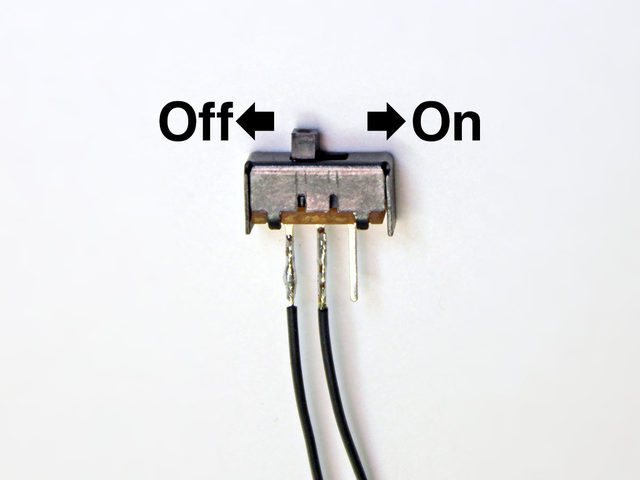

- Identify Terminals: Identify which terminals on your slide switch you will be using. Typically, you will use one common terminal and one of the outer terminals.
- Trim Excess Pins: If necessary, trim any excess pins on the switch to make soldering easier.
Now that everything is prepared, follow these steps to solder the wires to the slide switch:
3. Position the Switch and Wires
Secure the slide switch in place using helping hands or a PCB vise. Position your tinned wires so they are ready to be soldered onto the correct terminals.
4. Heat the Soldering Iron
Plug in your soldering iron and allow it to heat up for a few minutes. Clean the tip with a damp sponge to ensure good heat transfer.
5. Soldering Technique
- Heat the Terminal: Place the tip of your soldering iron against the terminal of the slide switch where you want to attach the wire.
- Add Solder: After a second or two, introduce solder to the joint while keeping the iron in place. The solder should melt and flow around both the wire and terminal.
- Remove Heat: Once enough solder has flowed into place (about 1-2 seconds), remove both the solder and then the iron.
6. Inspect Your Work
After soldering, inspect your connections for any cold joints (dull or grainy appearance) or excess solder that could cause shorts. A good joint should appear shiny and smooth.
Once you have successfully soldered your wires:
7. Add Heat Shrink Tubing (Optional)
If desired, slide heat shrink tubing over each connection before heating it with a heat gun or lighter to secure and insulate your joints.
After completing your soldering work:
8. Test Functionality
Connect your slide switch into your circuit and test its functionality by sliding it back and forth. Ensure that it properly connects and disconnects as expected.
Understanding common mistakes can help improve your soldering skills:
- Cold Joints: These occur when insufficient heat is applied during soldering, resulting in weak connections that may fail over time.
- Overheated Joints: Applying too much heat can damage components or lead to poor connections.
- Insufficient Wetting: If either surface (the wire or terminal) is not heated adequately before applying solder, it may not bond properly.
To avoid these mistakes:
- Always ensure both surfaces are clean before starting.
- Preheat components if necessary.
- Use appropriate temperatures based on component specifications.
For optimal results when soldering switches:
- Use a soldering iron with a maximum wattage of 30 watts.
- Maintain a tip temperature of around 345°C (650°F) for 2-3 seconds.
- Avoid operating switches immediately after soldering; let them cool down for at least one minute.
Soldering a slide switch is a straightforward process that can significantly enhance your electronic projects' functionality. With proper preparation, technique, and tools, you can create reliable connections that will serve you well in various applications.
Slide switches offer numerous benefits due to their simple design and ease of use:
1. Simple Operation: They provide intuitive on/off control.
2. Durable and Reliable: Designed for long-term use under mechanical stress.
3. Compact Design: Suitable for applications with limited space.
4. Low Cost: Economically viable for basic functions.
5. Visual Indicator: Some models include indicators for user feedback.
Incorporating these switches into your projects can improve usability and functionality significantly.
You should use rosin-core solder with a diameter of 0.030 – 0.040 inches for optimal results when soldering switches.
A good solder joint should be shiny and smooth without any cracks or dullness. If it appears grainy or rough, it may be a cold joint that needs reworking.
Yes, lead-free solder is an excellent alternative; however, ensure you adjust your temperature settings accordingly as lead-free solders often require higher temperatures.
Always wear safety goggles to protect your eyes from splashes of hot solder and work in a well-ventilated area to avoid inhalation of fumes.
To fix a cold joint, simply reheat it with your soldering iron until it melts again, then add more solder if necessary for a proper connection.
