Micro switches are essential components in various electronic devices, from computer mice to household appliances. Understanding how to disassemble these tiny yet crucial parts can be valuable for repairs, modifications, or simply satisfying curiosity. This comprehensive guide will walk you through the process of taking apart a micro switch, providing detailed steps, tips, and insights along the way.

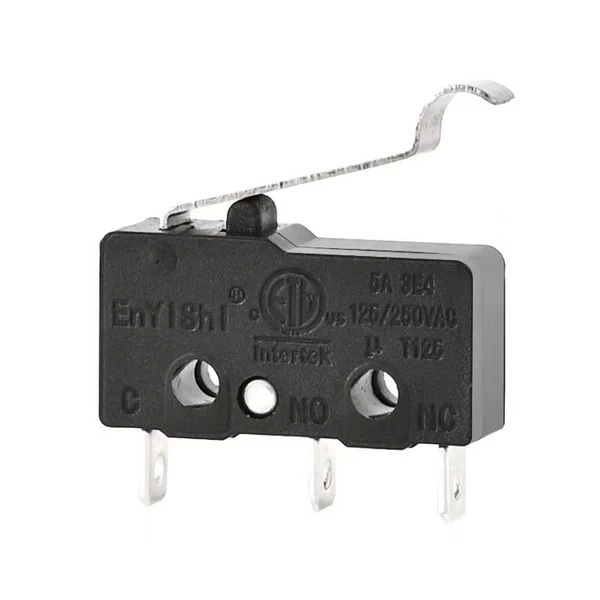

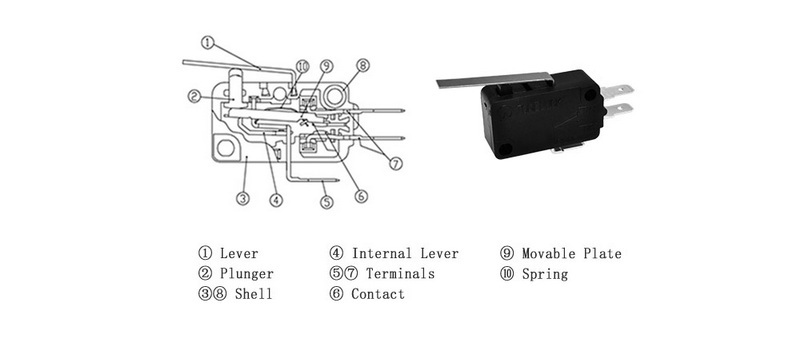

Before diving into the disassembly process, it's important to understand what a micro switch is and its basic components. A micro switch is a small electrical switch that is activated by very little physical force. It typically consists of a housing, actuator, spring mechanism, and electrical contacts.
Micro switches are designed to be reliable and long-lasting, capable of millions of actuations. However, they can sometimes fail due to wear and tear or manufacturing defects, necessitating repair or replacement.
To successfully disassemble a micro switch, you'll need the following tools:
- Small flathead screwdriver or thin blade
- Tweezers
- Magnifying glass or loupe
- Clean, well-lit workspace
- Optional: Desoldering pump (if removing from a circuit board)
Ensure you have all these tools ready before beginning the disassembly process.
Set up a clean, well-lit area to work. A white surface can help you keep track of small parts. If possible, work over a tray to catch any components that may spring out during disassembly.

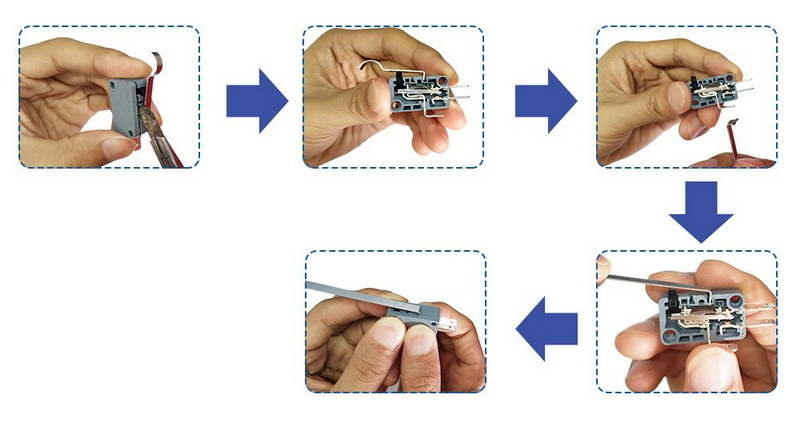

Carefully inspect the micro switch to identify the best point of entry. Most micro switches have two card slots on the sides, which are used to hold the cover in place.
One side of the micro switch typically has fewer components, making it easier to open. Choose this side to begin the disassembly process.
Gently insert your flathead screwdriver or thin blade into one of the card slots on the chosen side. Be careful not to apply too much force, as this could damage the switch's internal components.
Once your tool is inserted, apply gentle pressure from the bottom of the micro switch towards the top. This action should start to separate the cover from the base.
Slowly work your way around the perimeter of the switch, gently prying as you go. Take your time with this step to avoid damaging the internal components.
Once you've loosened the cover sufficiently, it should come off easily. Set it aside in a safe place.
With the cover removed, you can now see the internal workings of the micro switch. Take a moment to observe how the components are arranged.
Carefully remove the actuator (usually a small plastic or metal piece) and the spring mechanism. These components are often not attached and may simply fall out when the cover is removed.
Examine the electrical contacts. In most micro switches, you'll see a common terminal, a normally closed (NC) terminal, and a normally open (NO) terminal.
If you're disassembling the switch for cleaning or repair, now is the time to gently clean the components. Use a soft brush or compressed air to remove any dust or debris.
If you plan to reassemble the switch, carefully place the components back in their original positions. Ensure the spring and actuator are correctly aligned before replacing the cover.
Understanding why you might need to take apart a micro switch can help you approach the task with the right mindset. Here are some common reasons:
1. Repair: If the switch is malfunctioning, disassembly allows you to identify and potentially fix the issue.
2. Cleaning: Over time, dust and debris can accumulate inside the switch, affecting its performance.
3. Modification: Some enthusiasts modify switches to change their actuation force or sound characteristics.
4. Educational purposes: Disassembling a micro switch can be an excellent way to understand its mechanics and electrical principles.
5. Replacement: In some cases, you may need to salvage parts from one switch to repair another.
To ensure a smooth disassembly process and avoid damaging the micro switch, keep these tips in mind:
- Work slowly and patiently. Rushing can lead to mistakes or damage.
- Use appropriate tools. Avoid using tools that are too large or sharp for the delicate components.
- Keep track of all parts. Use a small container or magnetic tray to hold removed components.
- Take photos or notes during disassembly. This can help with reassembly if needed.
- Handle components gently. Many parts in a micro switch are delicate and can be easily bent or broken.
While disassembling a micro switch can be straightforward, you may encounter some challenges:
- Small components: The tiny size of micro switch parts can make them difficult to handle.
- Spring tension: Be prepared for the spring to potentially pop out when you remove the cover.
- Fragile parts: Some components, particularly the metal contacts, can be easily bent or damaged.
- Reassembly difficulties: Putting the switch back together can sometimes be trickier than taking it apart.
Understanding the various applications of micro switches can provide context for why you might need to disassemble one. Micro switches are used in:
- Computer peripherals (mice, keyboards)
- Home appliances (microwaves, washing machines)
- Automotive systems (door locks, power windows)
- Industrial equipment (safety interlocks, limit switches)
- Gaming controllers and arcade machines
When working with any electronic component, safety should be a primary concern. Here are some important safety considerations:
- Ensure the device containing the micro switch is unplugged and de-energized before disassembly.
- Wear safety glasses to protect your eyes from small parts that may spring out.
- Work in a well-ventilated area, especially if using cleaning solvents.
- Dispose of any damaged or unusable components properly, following local electronic waste guidelines.
Taking apart a micro switch can be a fascinating and educational experience. By following the steps outlined in this guide and keeping safety considerations in mind, you can successfully disassemble a micro switch for repair, cleaning, or simply to satisfy your curiosity about its inner workings. Remember to work slowly, use the right tools, and handle components with care. Whether you're a hobbyist, engineer, or just someone interested in how things work, understanding the intricacies of micro switches can deepen your appreciation for the technology that surrounds us in our daily lives.
For an experienced person, disassembling a micro switch can take as little as 5-10 minutes. However, if you're new to the process, it's best to allocate 20-30 minutes to ensure you can work carefully and avoid mistakes.
In many cases, yes. Common issues like stuck actuators or dirty contacts can often be resolved through cleaning or minor adjustments. However, if the switch has significant wear or damage to its electrical contacts, replacement may be necessary.
While the basic principles are similar, there can be variations in construction between different brands and models. Some may have additional components or use different materials, so it's important to pay attention to the specific switch you're working with.
If you're having trouble reassembling the switch, refer to any photos or notes you took during disassembly. You can also search online for diagrams of your specific switch model. If all else fails, it may be more cost-effective to replace the switch entirely.
Yes, but it must be done carefully. Use a contact cleaner spray designed for electronics, or gently clean with isopropyl alcohol and a soft brush. Avoid using abrasive materials that could damage the contacts, and ensure the switch is completely dry before reassembly or use.
