Micro switches, also known as snap-action switches, are critical components in many electronic devices. They operate by using a spring-loaded mechanism that makes or breaks electrical contacts when a specific force is applied. Understanding how to tell if a micro switch is bad is essential for troubleshooting and maintaining various appliances, from household devices to industrial machinery. This guide will walk you through the steps to identify a faulty micro switch and provide insights into their operation, common issues, and testing methods.
A micro switch is a small, sensitive switch that uses a mechanical lever to open or close an electrical circuit. These switches are widely used in applications such as:
- Home Appliances: Washing machines, microwaves, and coffee makers.
- Automotive Systems: Car door locks, seatbelt sensors, and brake light switches.
- Industrial Equipment: Conveyor systems and safety interlocks.
Micro switches are favored for their precision and reliability, making them crucial in safety-critical applications.
Identifying a faulty micro switch can save time and prevent further damage to devices. Here are some common signs that indicate a micro switch may be bad:
- Physical Damage: Look for cracks or chips on the switch casing.
- Loose or Wobbly Actuator: If the actuator feels loose or does not return to its original position, it may indicate internal damage.
- No Audible Click: A properly functioning micro switch produces an audible click when activated. If this sound is absent, it may be malfunctioning.
- Electrical Issues: Problems such as no continuity when tested with a multimeter can indicate failure.
- Inconsistent Operation: If the device intermittently fails to respond when the switch is activated, it may signal an underlying problem with the micro switch.

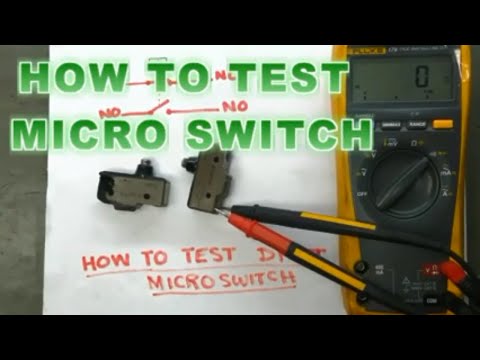

To determine if a micro switch is faulty, you can perform several tests using basic tools like a multimeter. Here's how:
Start with a thorough visual inspection of the micro switch:
- Check for any visible damage like cracks or burn marks.
- Ensure that the actuator moves freely without obstruction.

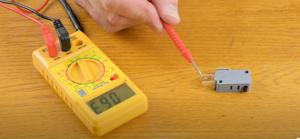

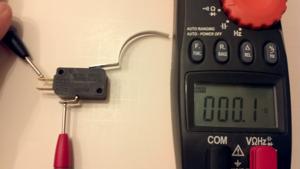

A continuity test helps verify whether the switch is functioning correctly:
1. Disconnect Power: Always ensure that the power supply to the device is turned off before testing.
2. Set Up the Multimeter: Set your multimeter to the continuity setting (or ohms).
3. Test the Terminals:
- Connect one probe to the common terminal and the other to the normally closed (NC) terminal.
- Press the actuator; if the multimeter beeps or shows continuity, it indicates that the switch is functioning correctly in its resting state.
- Next, connect the probe to the common terminal and normally open (NO) terminal while pressing the actuator; you should see continuity here as well.
4. Analyze Results:
- If there's no change in readings when pressing the actuator, the switch is likely faulty.
- If it always shows continuity (even when not pressed), it may be stuck closed.
The actuation force required to activate a micro switch should be within specified limits:
- Press the actuator multiple times and note how much force is needed.
- If it feels too stiff or too easy compared to specifications, consider replacing it.
Dirt and debris can interfere with micro switch operation:
- Use compressed air or a soft brush to clean any buildup on contacts.
- For stubborn stains, soaking components in diluted cleaning solution may help.
Understanding why micro switches fail can help prevent future issues:
- Wear and Tear: Over time, mechanical components can degrade due to repeated use.
- Environmental Factors: Exposure to moisture, dust, or corrosive substances can damage internal components.
- Electrical Overload: Excessive current can burn out contacts within the switch.
- Mechanical Stress: Repeated mechanical stress from improper installation or usage can lead to premature failure of micro switches.
Regular maintenance can extend the lifespan of micro switches significantly. Here are some recommended practices:
Conduct routine inspections every two to three months:
- Check for external damage caused by mechanical forces.
- Ensure there are no obstructions affecting operation.
Regularly monitor circuit voltage and current levels:
- Unstable voltage can lead to irreversible damage over time.
- Ensure that voltage levels are within specified ranges for optimal performance.

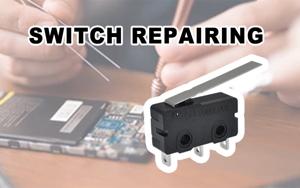

When faced with a faulty micro switch, you might wonder whether to repair or replace it. Here are some considerations:
Repairing can be viable if:
- The issue is minor (e.g., dirty contacts).
- You have experience disassembling and reassembling switches.
Steps for Repairing:
1. Disassemble Carefully: Remove screws or clips holding the casing together. Take pictures during disassembly for reference.
2. Inspect Components: Check for wear on contacts and other internal parts.
3. Clean Contacts: Use isopropyl alcohol on cotton swabs or brushes for cleaning.
4. Reassemble: Follow your reference pictures closely during reassembly.
5. Test Again: After reassembly, perform tests again to ensure functionality has been restored.
Replacement is often recommended when:
- The switch shows significant wear or damage.
- Internal components are corroded beyond repair.
Choosing Replacement Switches:
When selecting replacement micro switches:
- Ensure compatibility with your device's specifications.
- Consider environmental factors such as humidity and temperature that may affect performance.
If basic tests do not yield clear results regarding whether your micro switch is bad, consider these advanced troubleshooting techniques:
Using an oscilloscope can provide detailed insights into how well your micro switch operates under load conditions:
1. Connect an oscilloscope probe across the terminals of the micro switch while operating it.
2. Observe waveforms; irregularities may indicate issues with contact bounce or intermittent connections that aren't visible through simple continuity tests.
Sometimes switches fail only under specific load conditions:
1. Apply a known load across the circuit while monitoring how well the micro switch performs.
2. If it fails under load but passes continuity tests without load, this indicates potential contact welding or degradation under stress conditions.
Understanding real-world cases of micro switch failures can help contextualize troubleshooting efforts:
1. Washing Machine Door Locks: A common failure point in washing machines where door locks use micro switches for safety interlocks. Users reported intermittent locking issues leading to machine errors—often traced back to worn-out actuators that failed under repeated use cycles.
2. Automotive Applications: In vehicles, malfunctioning seatbelt sensors often stem from faulty micro switches that fail due to environmental exposure (e.g., moisture from spills). Regular inspections could prevent these failures before they impact vehicle safety systems significantly.
3. Industrial Machinery Safety Interlocks: In factories where machinery relies on safety interlocks using micro switches, failures can lead to hazardous situations. One case involved a conveyor system where dust accumulation led to contact failure—highlighting how maintenance practices directly affect operational safety.
Diagnosing and addressing issues with micro switches is crucial for maintaining device functionality. By following systematic testing procedures and understanding common failure signs, you can effectively determine whether a micro switch needs replacement. Regular maintenance and inspection can extend the lifespan of these essential components while ensuring safety in their applications.
Incorporating advanced testing techniques and learning from real-world case studies further enhances your ability to troubleshoot effectively. Whether you choose repair or replacement depends on various factors including severity of damage, cost-effectiveness, and long-term reliability considerations.
You will need a multimeter for continuity tests and possibly basic hand tools for disassembly if necessary.
In some cases, cleaning contacts or replacing damaged internal components may restore functionality; however, often replacement is recommended for reliability.
Regular inspections should be part of routine maintenance schedules—especially in high-use devices—to catch issues early.
Inconsistent readings may indicate internal damage within the switch; consider replacing it if this occurs during testing.
Yes, micro switches come in various configurations including different actuator types (e.g., lever, plunger) and electrical ratings suitable for various applications.
